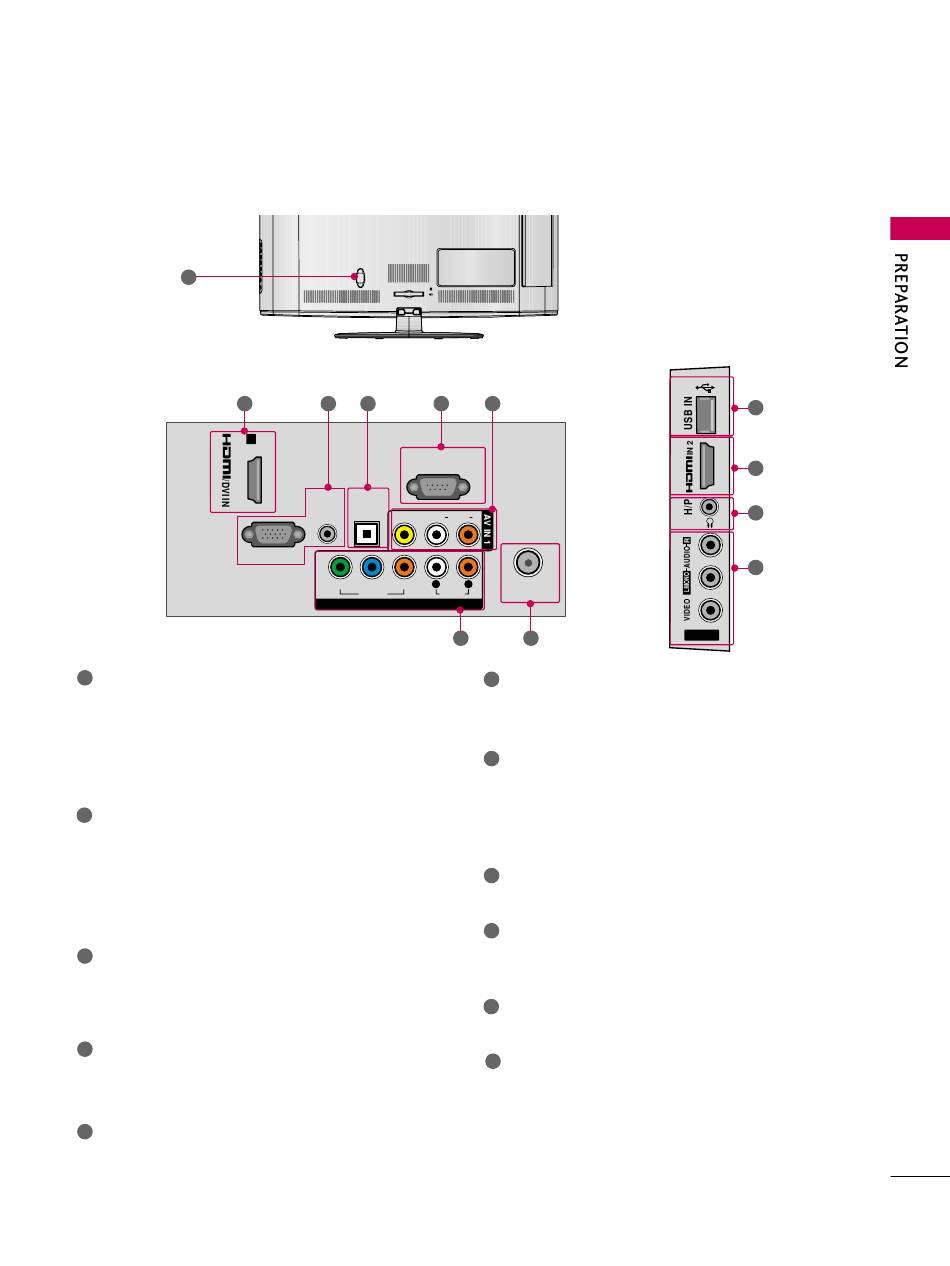

32LD350, 32LD320
1
1
RGB IN (PC)
HDMI/DVI IN, HDMI IN
1
Digital Connection.
Supports HD video and Digital audio. Doesn't
support 480i.
Accepts DVI video using an adapter or HDMI to
DVI cable (not included).
RGB IN (PC)
2
Analog PC Connection. Uses a D-sub 15 pin cable
(VGA cable).
AUDIO IN (RGB/DVI)
1/8" (0.32 cm) headphone jack for analog PC
audio input.
OPTICAL DIGITAL AUDIO OUT
3
Digital optical audio output for use with amps and
home theater systems.
Note: In standby mode, this port doesn't work.
4
RS-232C IN (CONTROL & SERVICE) PORT
Used by third party devices.
This port is used for Service or Hotel mode.
AV (Audio/Video) IN
5
Analog composite connection. Supports standard
definition video only (480i).
AC IN
2 3 4
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO IN
(RGB/DVI) AUDIO OUT
VIDEO AUDIO R
L/MONO
Y P P
L R
B R
VIDEO AUDIO
COMPONENT IN
7
6
7
8
9
10
1 1
5
ANTENNA
/CABLE IN
6
ANTENNA/CABLE IN
Connect over-the air signals to this jack.
Connect cable signals to this jack.
COMPONENT IN
Analog Connection.
Supports HD.
Uses a red, green, and blue cable for video & red
and white for audio.
USB IN SERVICE ONLY
Used for software updates.
HEADPHONE INPUT
0.32 cm (1/8 inch) headphone jack impedance
16 Ω , Maximum audio out 15 mW
USB IN
Used for viewing photos and listening to MP3s.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
