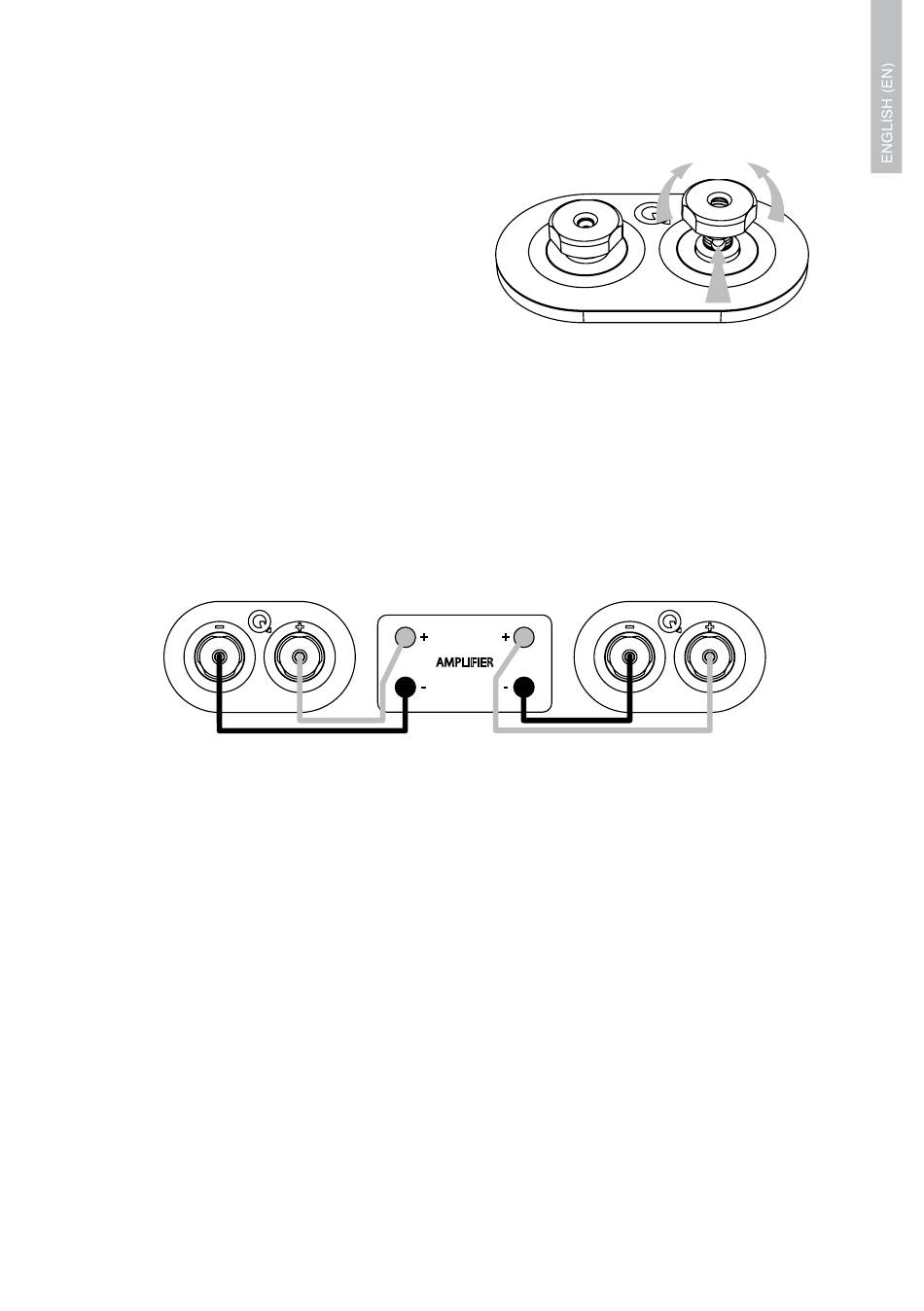

Connecting a Terminal
Unscrew the terminal anticlockwise to expose the
Tight Loose
mounting hole in the base of the terminal column.
Insert the bare end of the cable into the hole. Re-
tighten the terminal fully hand tight. Make sure
there are no stray wires which could touch adjacent
terminals. In the EU it is against safety regulations to
use 4mm loudspeaker plugs.
Stereo Connections
Standard Connections
Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT
channel of the amplifier. Connect the BLACK (–) terminal of the loudspeaker to the matching BLACK,
Negative (–) terminal of the amplifier. Repeat this procedure for the LEFT channel.
Standard Wiring:
RIGHT SPEAKER LEFT SPEAKER
+ +
AMPLIFIER
- -
10
