Rear Brake Lever Adjustment - Yamaha ULTRAMATIC KODIAK 450 2002 Manual Del Propietário

1. Locknut
c. Free play
1. Contre-écrou
c. Jeu
1. Contratuerca
c. Juego libre
1. Brake pedal position
1. Position de la pédale de frein
1. Posición del pedal del freno
2. Adjusting bolt
2. Boulon de réglage
2. Perno de ajuste

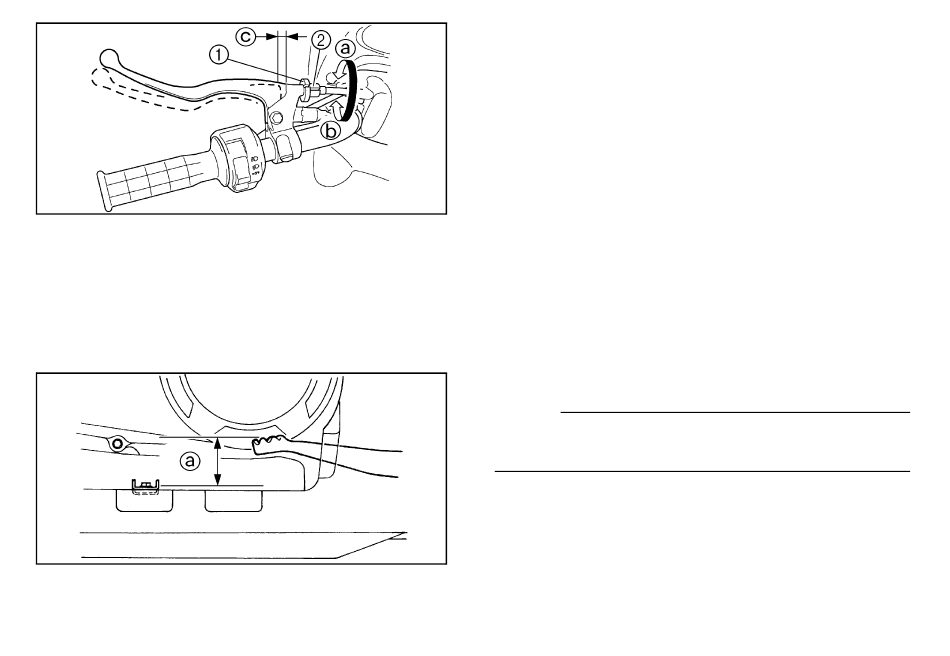

Rear brake lever adjustment

The rear brake lever free play should be 0.5–
2 mm.
1. Loosen the locknut.
2. Turn the adjusting bolt in direction a to in-
crease free play, and in direction b to de-
crease free play.
3. Tighten the locknut.
If correct free play cannot be obtained, ask a
Yamaha dealer to make that adjustment.
Rear brake pedal height adjustment
NOTE:
Adjust the rear brake before inspecting the rear
brake pads.
The top of the brake pedal should be positioned
75 mm above the top of the footrest. If not, ask a
Yamaha dealer to adjust it.
