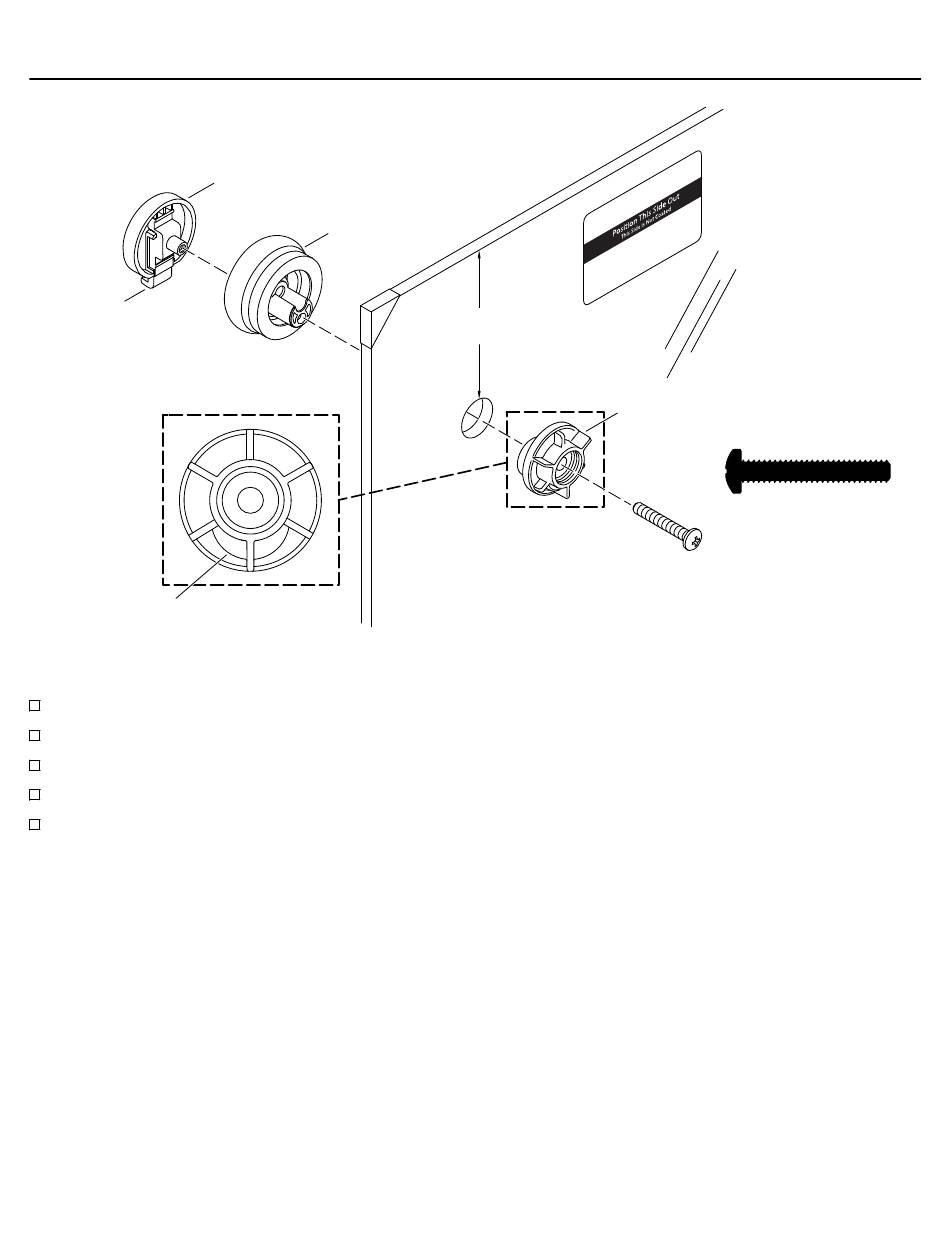

14. Assemble the Outside Panel
Clip
Down
Tab Down
NOTICE: The outside panel roller mounting holes are 2-1/4" (57 mm) below the top of the panel.
Position the roller on the opposite side of the panel as the label.
Install the outside rollers with the tab on the clamp down. This will position the door in the lowest setting.
Secure each roller with a #10-24 x 1-1/4" screw.
Hold the clip downward as the screw is tightened.
Using a hand screwdriver only, tighten the screws securely until the clip cannot be rotated by hand.
1417143-2-B
Clip
Assembly
Outside
Roller
2-1/4"
(57 mm)
Clamp
18
10-24 x 1-1/4"
