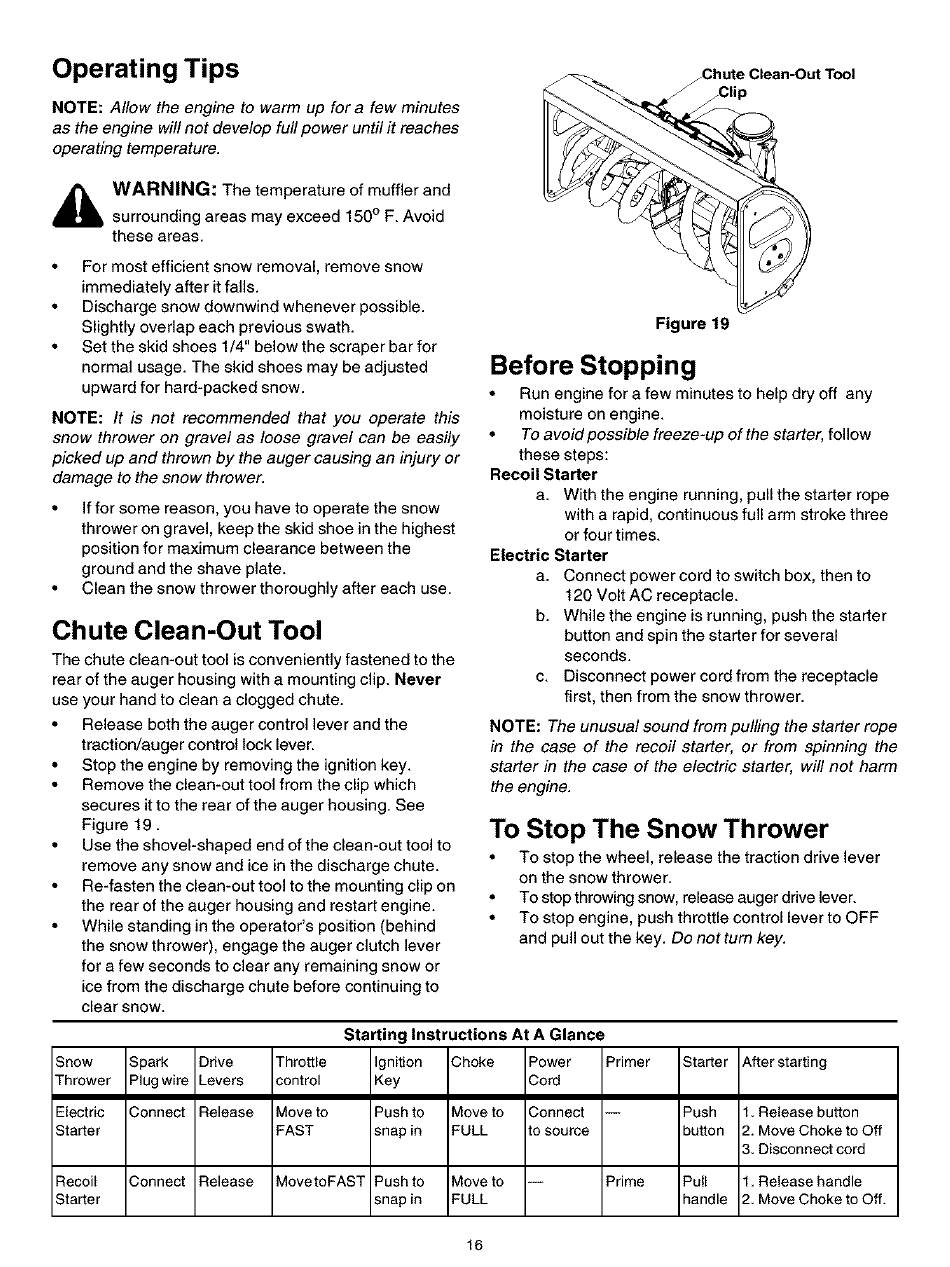

Operating Tips
NOTE: Allow the engine to warm up for a few minutes
as the engine will not develop full power until it reaches
operating
temperature.
_Chute Clean-Out Tool
/Clip
,_
WARNING:
The temperature
of muffler and
surrounding
areas may exceed 150 ° F. Avoid
these areas.
•
For most efficient snow removal, remove snow
immediately
after it falls.
•
Discharge snow downwind
whenever
possible.
Slightly overlap each previous swath.
•
Set the skid shoes 1/4" below the scraper bar for
normal usage. The skid shoes may be adjusted
upward for hard-packed
snow.
NOTE: It is not recommended that you operate this
snow thrower on gravel as loose gravel can be easily
picked up and thrown by the auger causing an injury or
damage to the snow thrower.
•
If for some reason, you have to operate the snow
thrower on gravel, keep the skid shoe in the highest
position for maximum clearance
between the
ground and the shave plate.
•
Clean the snow thrower thoroughly
after each use.
Chute Clean-Out
Tool
The chute clean-out tool is conveniently
fastened to the
rear of the auger housing with a mounting clip. Never
use your hand to clean a clogged chute.
•
Release both the auger control lever and the
traction/auger
control lock lever.
•
Stop the engine by removing the ignition key.
•
Remove the clean-out tool from the clip which
secures it to the rear of the auger housing. See
Figure 19.
•
Use the shovel-shaped
end of the clean-out tool to
remove any snow and ice in the discharge chute.
•
Re-fasten the clean-out tool to the mounting clip on
the rear of the auger housing and restart engine.
•
While standing in the operator's
position (behind
the snow thrower),
engage the auger clutch lever
for a few seconds to clear any remaining
snow or
ice from the discharge chute before continuing
to
clear snow.
Figure 19
Before Stopping
•
Run engine for a few minutes to help dry off any
moisture on engine.
•
To avoidpossible
freeze-up of the starter, follow
these steps:
Recoil Starter
a.
With the engine running, pull the starter rope
with a rapid, continuous
full arm stroke three
or four times.
Electric Starter
a.
Connect power cord to switch box, then to
120 Volt AC receptacle.
b.
While the engine is running, push the starter
button and spin the starter for several
seconds.
c.
Disconnect
power cord from the receptacle
first, then from the snow thrower.
NOTE: The unusual sound from pulling the starter rope
in the case of the recoil starter, or from spinning the
starter in the case of the electric starter, will not harm
the engine.
To Stop The Snow Thrower
•
To stop the wheel, release the traction drive lever
on the snow thrower.
•
To stop throwing snow, release auger drive lever.
•
To stop engine, push throttle control lever to OFF
and pull out the key. Do nottum
key.
Snow
Spark
Drive
Thrower
Plugwire
Levers
Electric
Connect
Release
Starter
Recoil
Connect
Release
Starter
Thro_le
control
Move to
FAST
Move toFAST
Starting Instructions
At A Glance
ignition
Key
Push to
snap in
Push to
snap in
Shake
Power
Primer
Cord
Move to
Connect
--
FULL
[o source
Move to
--
Prime
FULL
Starter
Push
button
Pull
handle
After starting
1. Release button
2. Move Choke to Off
3. Disconnect cord
1. Release handle
2. Move Choke to Off.
16
