Motor/Transaxle Assembly
The motor/transaxle assembly is an electromechanical unit that
converts electrical energy from your scooter's batteries into the
controlled mechanical energy that drives the scooter's wheels.
Anti-Tip Wheels
The anti-tip wheels are an integral and important safety feature of
your scooter. They are bolted to the frame at the rear of the scooter.
PROHIBITED! Do not remove the anti-tip wheels
or modify your scooter in any way that is not
authorized by your Provider.
WARNING!
interference with the smooth transition of your
scooter when ascending or descending a curb.
Contact your
information.
Batteries
The batteries store electrical energy that powers your scooter. See
III. "Batteries and Charging" for information on how to charge your
scooter batteries.
Safety Flag Bracket
Accessory brackets for installing an optional safety fl ag are mounted
at the rear of the scooter. See fi gure 4.
To install the safety fl ag:
1. Remove the cap from the top of the bracket.
2. Insert the fl ag pole into the opening.
Main Circuit Breaker
When the voltage in the batteries becomes low or your scooter is
heavily strained because of excessive loads, the main circuit breaker
may trip to protect the motor and electronics from damage. When the
breaker trips, the entire electrical system shuts down. See fi gure 5.
 Reset button pops out when the breaker trips.
 Allow a minute or so for the electronics to "rest."
 Push in the reset button to reset the breaker.
 If the breaker trips frequently, you may need to charge the
batteries more often.
 If the main circuit breaker trips repeatedly, see your authorized
Provider for service.
12
I I . Y O U R S C O O T E R
The anti-tip wheels
authorized Provider
may cause

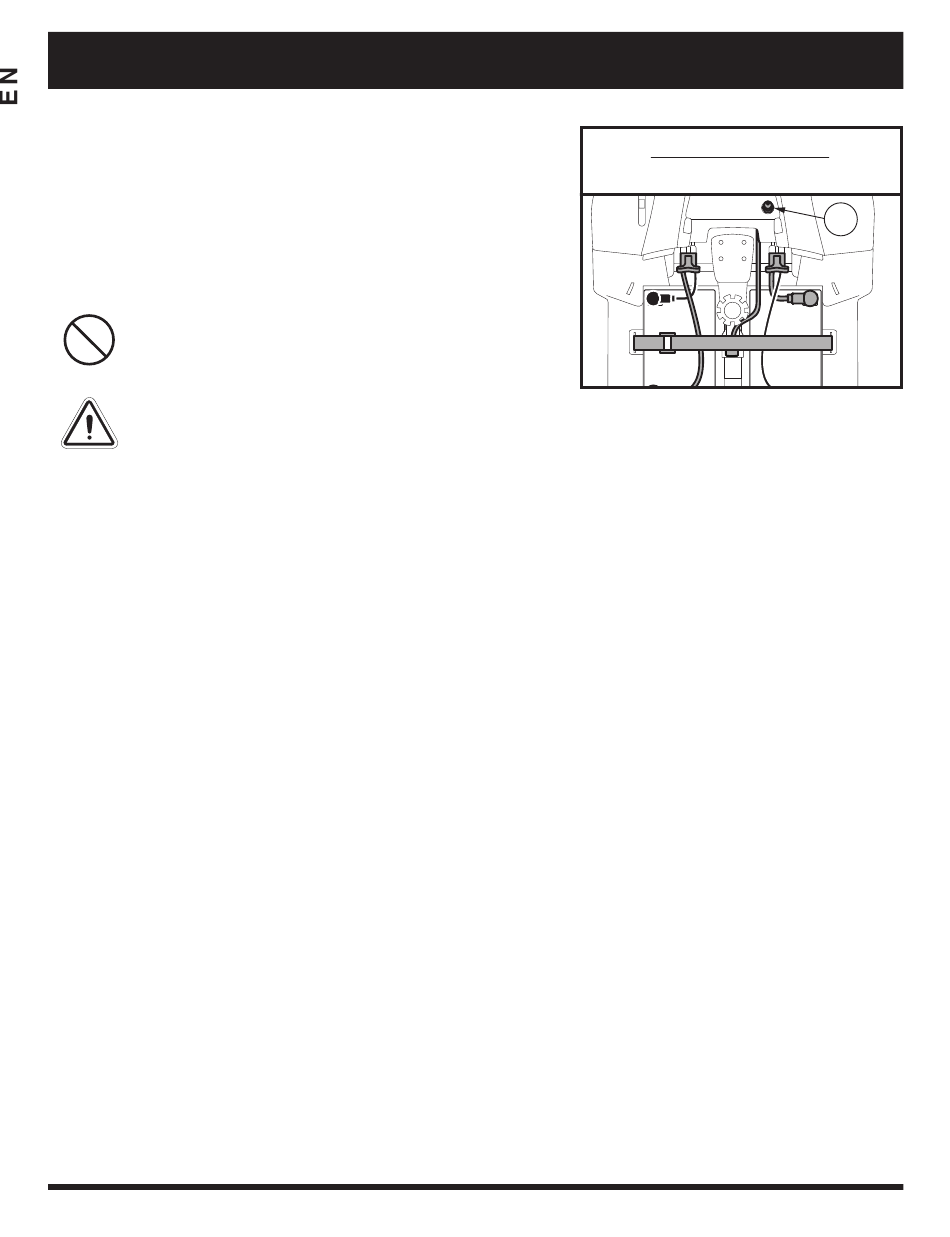

Figure 5. Main Circuit Breaker
