V. C O M F O R T A D J U S T M E N T S
TILLER ANGLE ADJUSTMENT (See fi gure 1 and 13)
WARNING! Remove the key from the key switch
before adjusting the tiller or the seat. Never
attempt to adjust the tiller or the seat while the
scooter is in motion.
WARNING! Prior to operating the scooter, push
and pull on the tiller to ensure that the angle
adjustment mechanism is secure. Inspect the
tiller adjustment lever and the angle adjustment
mechanism to ensure that they are fully engaged.
If there is movement in the tiller, check to make
sure that the tiller adjustment lever is fully
tightened.
Your scooter is equipped with a pivoting tiller that allows
adjustment to several positions.
1. Lift the tiller adjustment lever. See fi gure 13.
2. Move the tiller to a comfortable position.
3. Release the tiller adjustment lever to secure the tiller in position.
NOTE: In order to fully lower the tiller for purposes of disassembly
or transport, you must fi rst completely remove the seat.
MIRROR POSITION
To install the mirror (see fi gure 1)
1. Determine on which side to install the mirror and remove the
rubber plug from the top of the tiller handle.
2. Insert the threaded end of the mirror holder into the opening
and rotate it clockwise until snug.
3. If necessary, rotate the nut clockwise to secure the mirror in
place.
To adjust the mirror:
1. Position yourself in a seated driving position facing forward.
2. Adjust the mirror left, right, up, or down until you have a good
line of sight behind you.
SEATBACK ADJUSTMENT
WARNING! Do not operate your scooter with the
seatback in a reclined position.
WARNING! Always keep your back pressed fi rmly
against the seatback while adjusting the angle.
To adjust your scooter's reclining seat, you can adjust the seatback
angle with the seatback adjustment lever. See fi gure 14.
1. With your back pressed up against the seatback, lift up on the
seatback adjustment lever and lean forward or rearward to
adjust the seatback angle.
2. Release the seatback adjustment lever once the seat is in a
comfortable riding position.
24

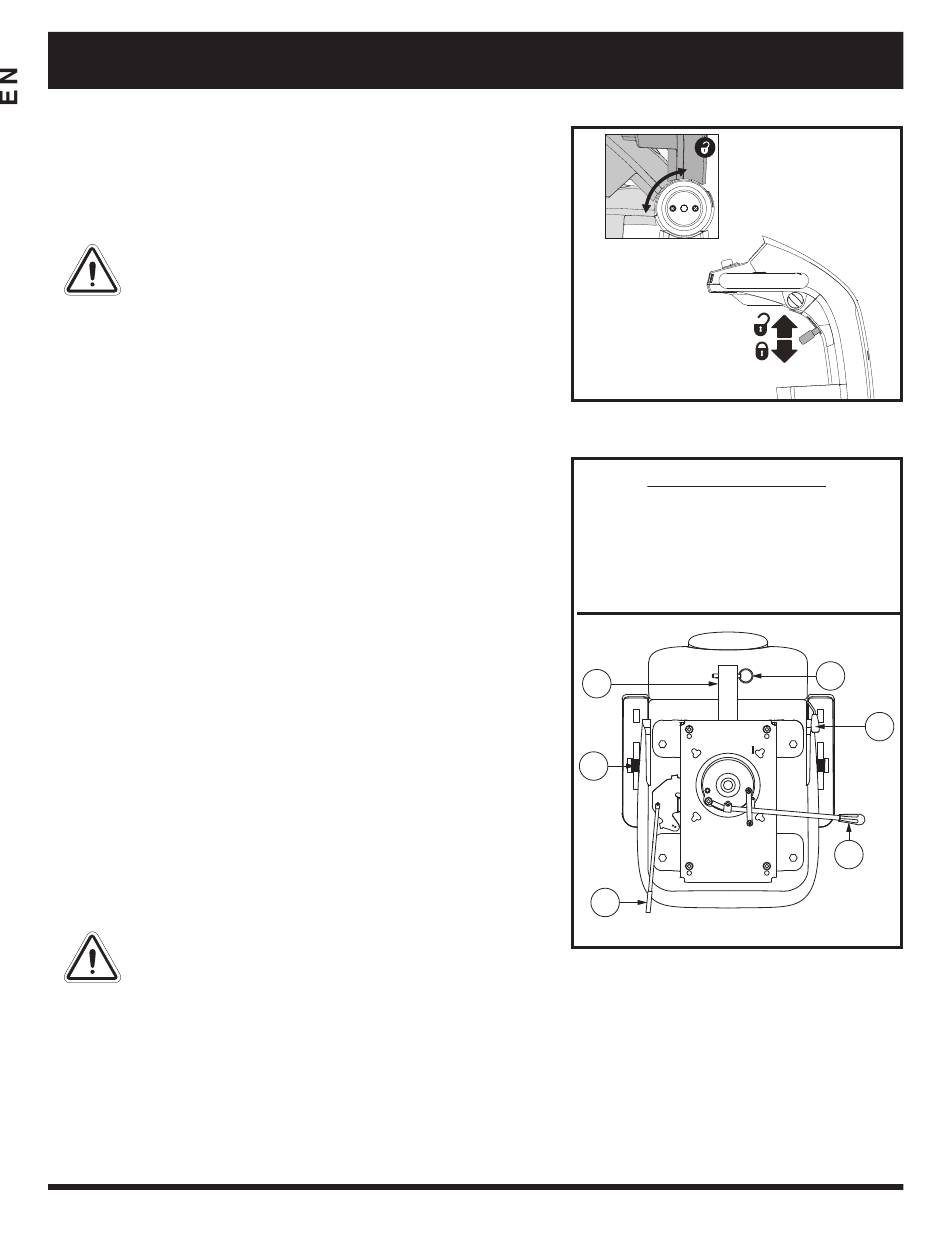

Figure 13. Tiller Adjustment Knob
IDENTIFICATION KEY
1. SEATBACK ADJUSTMENT LEVER
2. SEAT ROTATION LEVER
3. ARMREST ANGLE ADJUSTMENT DIAL
4. SEAT SLIDING LEVER
5. ACCESSORY BRACKET
6. DETENT PIN
5
3
4
Figure 14. Seat Adjustments
6
1
2
SC7132
