Campbell Hausfeld WF2150 Manual De Instrucciones De Operación Y Partes

Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could
result in personal injury and/or property damage! Retain instructions for future reference.
Description

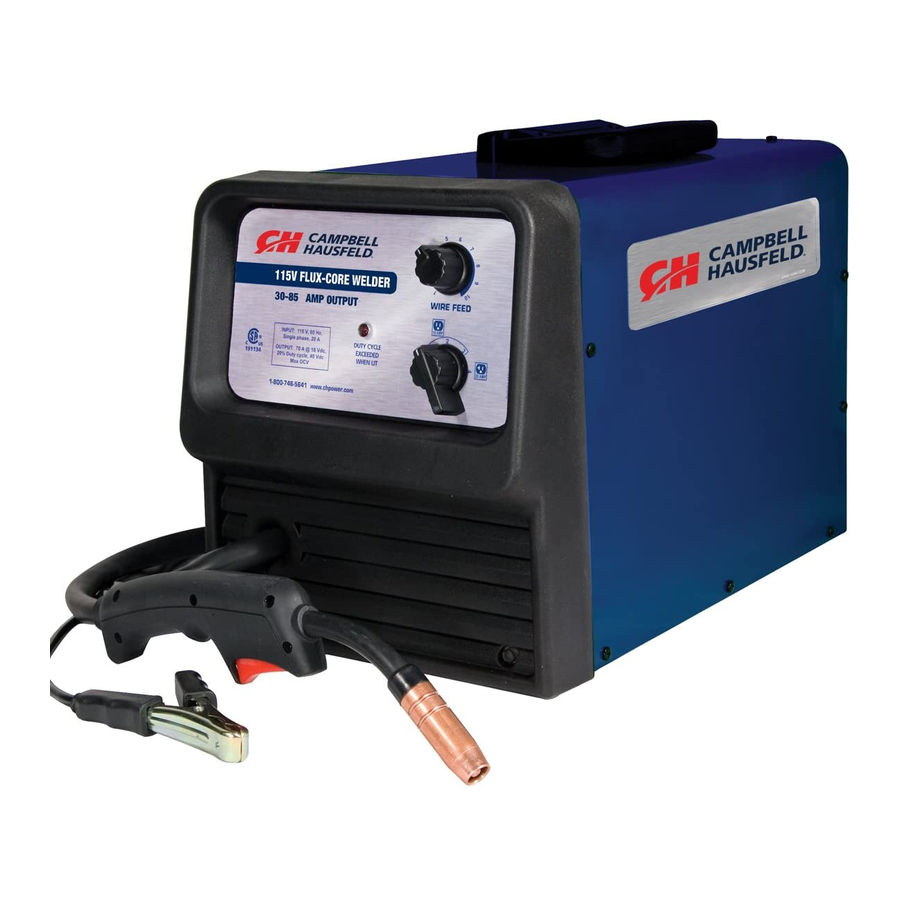

These Campbell Hausfeld wire feed
welders are designed to be used on
standard 120V outlets. The welder is
equipped with infinite wire speed
control to accurately select the proper
wire feed rate needed for various
welding conditions. Internal components
are thermostatically protected.
The WF2150 and WF2154 are designed
for use with the Flux Cored Arc Welding
(FCAW) process. The WG2160 and
WG2164 are designed for use with the
Flux Cored Arc Welding (FCAW) or the
Gas Metal Arc Welding (GMAW) process.
As delivered from the factory, this welder
can weld with .030 in. (0.8mm) diameter
flux core wire. A starter spool of .030 in.
1
Figure 1 - Welder Components and Controls
REMINDER: Keep your dated proof of purchase for warranty purposes!
© 2013 Campbell Hausfeld/ Scott Fetzer
(0.8 mm) flux cored wire is included.
To use the GMAW process with the
WG2160 or WG2164, it is necessary to
purchase shielding gas and MIG wire
only.
Unpacking
When unpacking, inspect carefully for any
damage that may have occurred during
transit. Make sure any loose fittings and
screws, etc., are tightened before putting
unit into service. Report any missing or
damaged items by calling
1-800-746-5641.
5
Attach it to this manual or file it for safekeeping.
For parts, manuals, product & service information
visit www.chpower.com
Wire Feed
Arc Welder
CIRCUIT REQUIREMENTS
This equipment requires a dedicated
120 volts. Refer to the following chart
for correct circuit breaker or fuse
rating for 120 volt models. Do not run
other appliances, lights or tools on this
circuit while operating this equipment.
Extension cords are not recommended.
Blown fuses and tripped circuit
breakers can result from failure to
comply with this recommendation.
COMPONENTS AND CONTROLS
(FIGURE 1)
1. Work Clamp – connects to work
piece.
2. Torch with .030 in. tip.
3. Power Cord – plug into 120 volt
outlet.
4. Light – illuminates if thermostat has
automatically shut welder off.
5. Infinite Wire Speed Control – turn
clockwise to increase wire speed and
counterclockwise to decrease wire
3
speed.
6. Off/Heat Selector - Selects welding
power and turns welder on.
6
Four selections are possible:
1 – 2 – 3 – 4.
Heat
Selector
4
2
See page 8 for supply cable
replacement instructions.
Models WF2150, WF2154,
WG2160 and WG2164
Need
Assistance?
Call Us First!
1-800-746-5641
Circuit Breaker or
Slow Blow Fuse for
120V Models
1-2-3 15 amp
4 20 amp
IN973801AV 3/13
