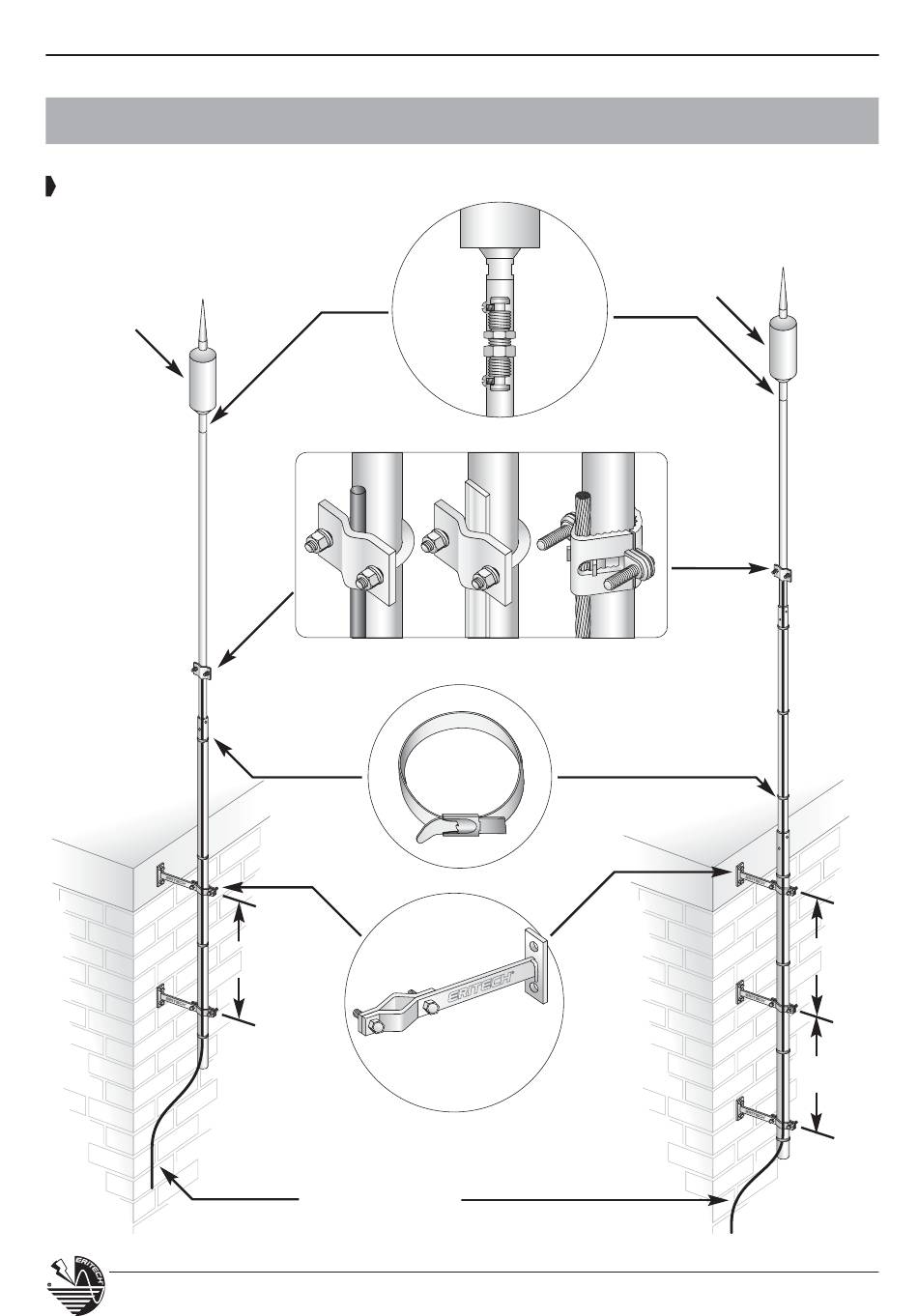

Typical MAST Installation Arrangement
For Cantilevered Mast
SI-25, SI-40, SI-60
TMC-SS
1 m
For masts 2-3 m
above roof plane,
1 m lower cantilever
section with 2
mounting brackets
DOWNCONDUCTOR
Refer to your local standard for downconductor
number and routing requirements.
Adapter:
refer to
page 6
TMC-SS LPC580
CABTIE-SS
For masts 4-6 m
ALOF-1-GS
above roof plane,
2 m lower cantilever
section with 3
mounting brackets
4
SI-25, SI-40, SI-60
1 m
1 m
