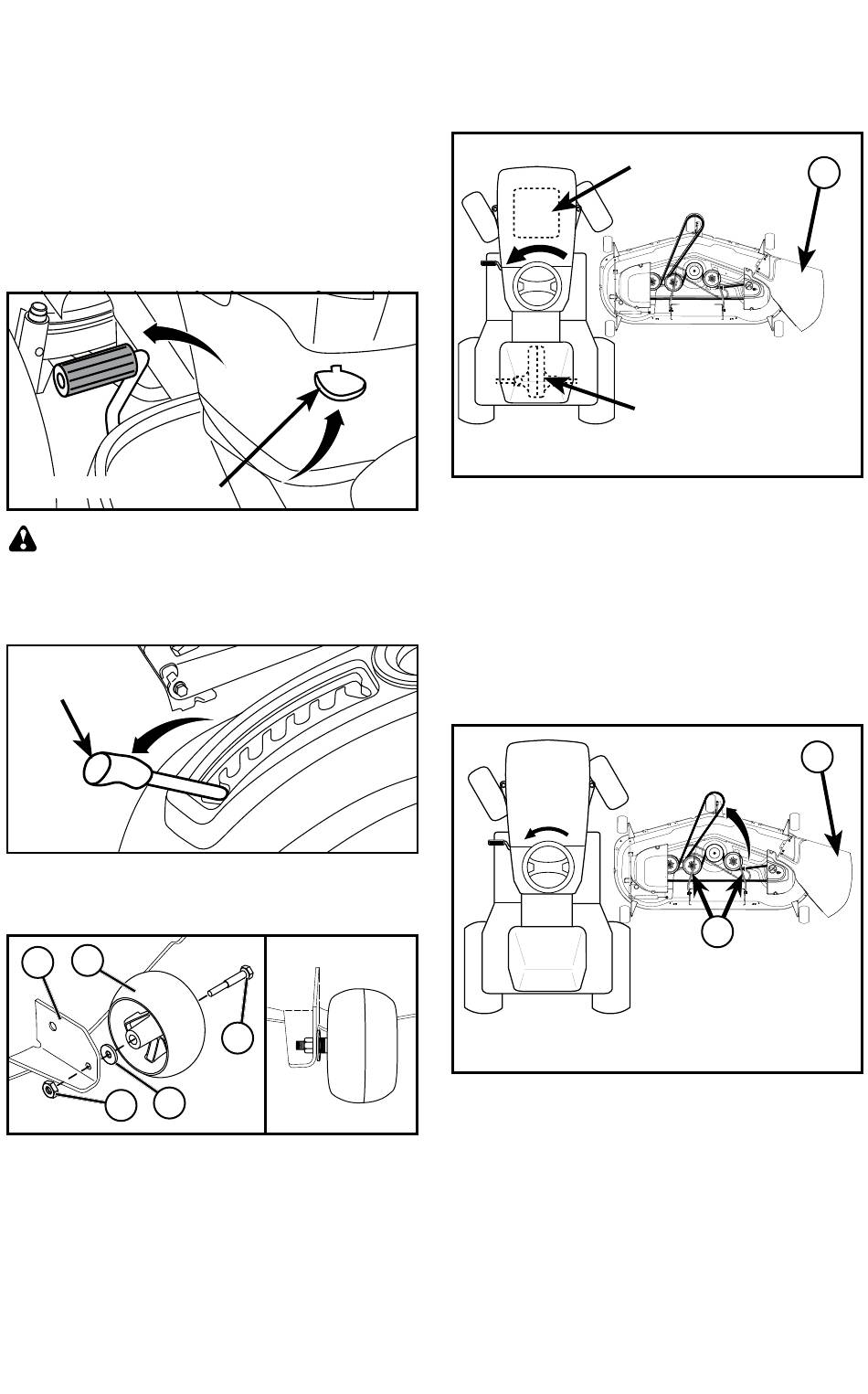

TO INSTALL MOWER
1. SET PARKING BRAKE LEVER AND
LOWER ATTACHMENT LIFT LEVER
• Depress clutch/brake pedal all the way
down and hold.
• Pull parking brake lever up and hold,
release pressure from clutch/brake
pedal, then release parking brake lever.
Pedal should remain in brake position.
Ensure parking brake will hold tractor
secure.
Parking Brake Lever
CAUTION: Lift lever is spring loaded.
Have a tight grip on lift lever, lower it slowly
and engage in lowest position. Lift lever is
located on left side of fender.
Lift
Lever
2. ASSEMBLE FRONT GAUGE WHEEL
(W) TO FRONT OF MOWER
W
H
Y
Z
H. Front Mower Bracket
W. Front Gauge Wheel
X. Shoulder Bolt
Y. 1-1/4 O.D. Washer
Z. 3/8-16 Locknut
X
3. TURN STEERING WHEEL LEFT AND
POSITION MOWER
• Turn steering wheel to the left as far as it
will go and position mower on right side of
tractor with deflector shield (Q) to the right.
Front
02965
Back
4. SLIDE MOWER UNDER TRACTOR
• Bring belt forward and check belt for pro-
per routing in all mower pulley grooves.
NOTE: Ensure mower side suspension arms
(A) are pointing forward before sliding mower
under tractor.
• Slide mower under tractor until it is
centered under tractor.
02965
A. Mower Side Suspension Arms
Q. Deflector Shield
