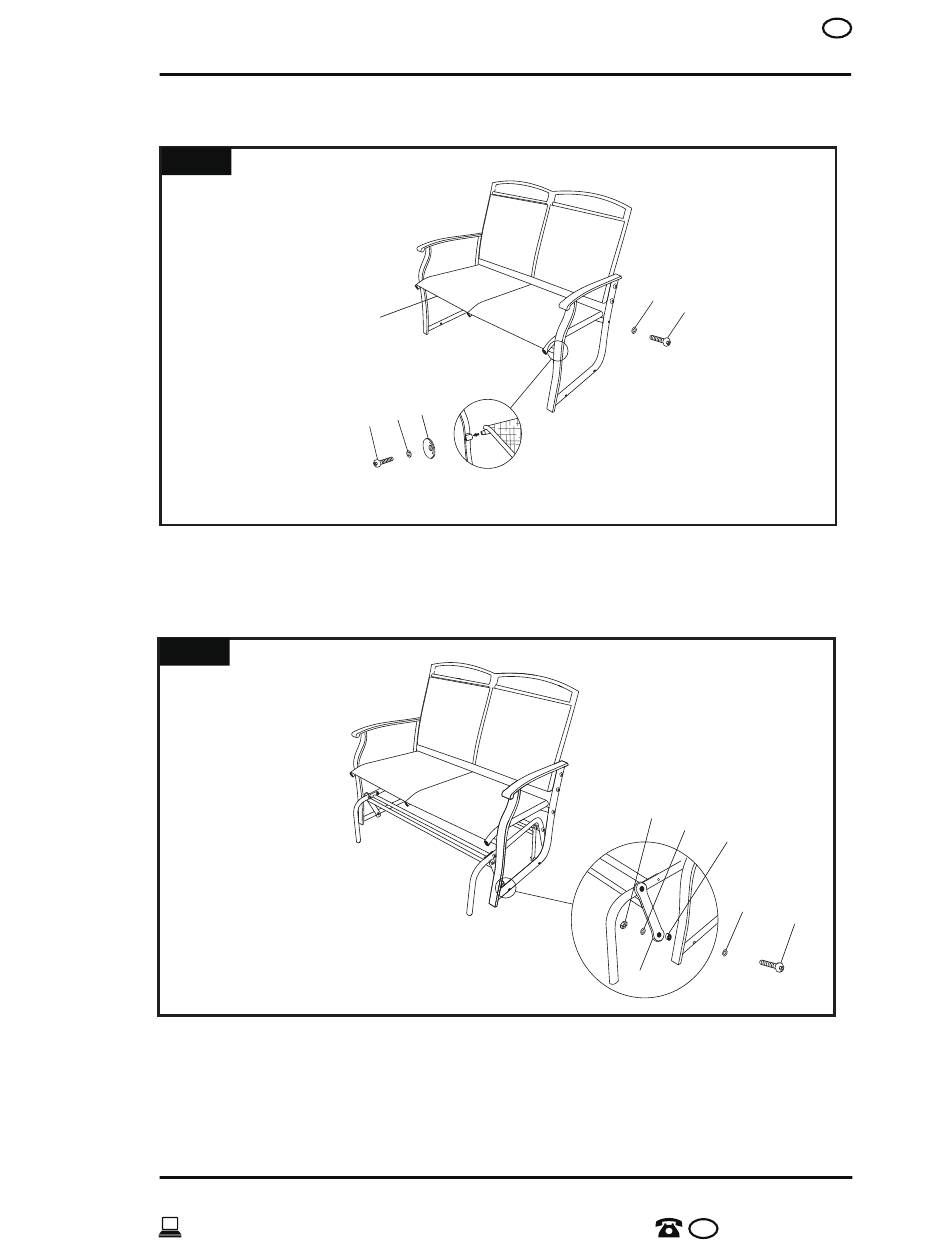

FIG.6
6. Attach the chair seat (E) to the arm front side using two M6*20 screws (I), two
washers (P) and two large washers (S). Attach the chair seat (E) to the arm rear side
using two M6*35 screws and two washers (P). See Fig.6
FIG.7
7. Attach the assembled chair bucket to the lower end of the rocker connector (G)
using one M6*50 screw, two washers (P), one spacer (O) and one nut (Q). Repeat
this step to assemble the other three connection points. See Fig.7
