Rutland Furlmatic 910-4 Windcharger

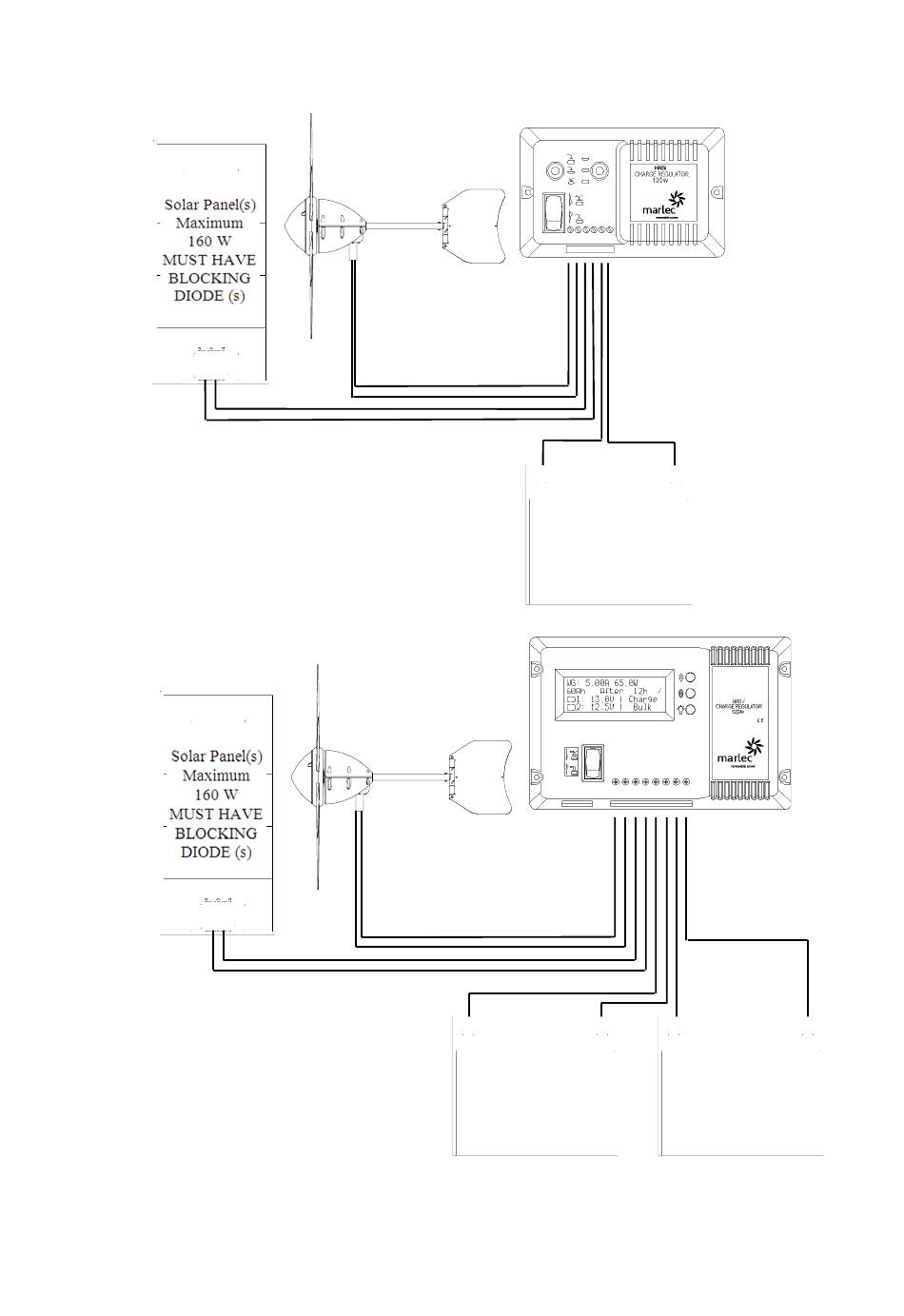

Typical Wiring Diagrams For Rutland FM910-4 Windcharger
Optional
Solar Panel(s)
Rutland FM 910-4 with HRSi
Charge Regulator.
Optional
Solar Panel(s)
Rutland FM 910-4 with HRDi
Charge Regulator
NB: Follow the installation instructions provided with the selected
Marlec regulator.
Doc No: SM-138 Iss. F 01.10.19
11
Installation & Operation
Optional 2nd
Battery Bank
