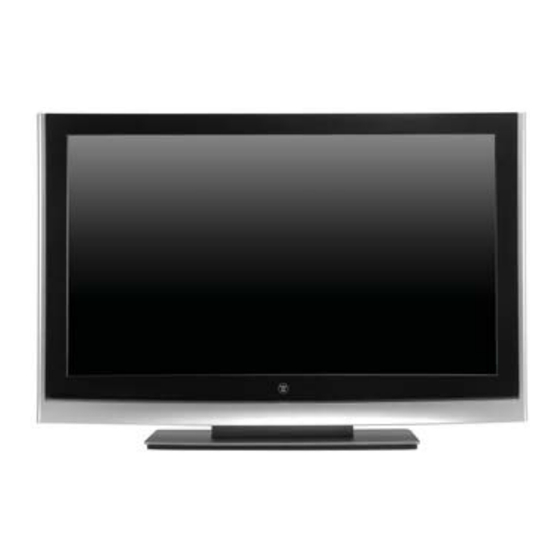

Westinghouse LTV-46w1 Guía De Conexión Rápida
Westinghouse LTV-46w1 Guía De Conexión Rápida

Westinghouse LTV-46w1 Guía De Conexión Rápida

Publicidad

Enlaces rápidos

DID YOU KNOW THAT
YOUR HD MONITOR ALSO HAS:
• Easy side access to connectors through innovative
spine design
• Integrated 15 W Stereo Speakers
CHECK OUT
www.westinghousedigital.com for our:
• Versatile Décor Wall Mounting options
• Complete line of TV's and desktop monitors
Quick Connect Guide
CONGRATULATIONS
3 easy steps. For complete installation, usage instructions, and safety precautions please refer to the User's Manual.
1
POWER
Use the enclosed AC power cable
to connect AC power to the
LCD TV.
MAXIMIZE YOUR LCD TV EXPERIENCE
variety of electronic devices including a digital cable or satellite set top box, a game console, a VCR, or a computer.
The chart shows our recommendations for the best quality picture for these commonly used devices.
VIDEO INPUTS
AV
S-Video
YPbPr
Digital Cable/
Satellite Receiver
Good
DVD Player
Good
Game Console
Good
Better
Better
VCR
Good
Best
Note: The audio input is shared between AV and S-Video
TYPICAL SETUP
• Progressive scan DVD players with HDMI
• Game console action using YPbPr
• Set top box using HDMI
©
2006 Westinghouse Digital Electronics, LLC. All rights reserved. Specifications subject to change without
¼, Westinghouse
You can be sure... if it's Westinghouse
notice.
and
Corporation and are used under license.
MA-PS-0121-0601
Westinghouse Digital Electronics
Start Here
LTV-46w1
S-Video/Video/SPDIF/
Keypad
SAVIEZ-VOUS QUE
VOTRE MONITEUR HD EST AUSSI MUNIE:
• Conception innovante pour faciliter l'accès latéral aux connecteurs
• De haut-parleurs stéréo intégrés de 15 w
CONSULTEZ
www.westinghousedigital.com pour nos:
• Options multiples de Montants Muraux Décoratifs
• Ligne complète d'écrans TV et d'ordinateurs
on purchasing a LCD TV! This Quick Connect Guide will help you get started in
2
HD VIDEO SOURCE
Connect HD digital cable, HD
satellite, or Over-the-Air antenna to
the corresponding video and audio
inputs on the connector panel.
ATSC tuner already built in.
You can attach your LCD TV to a
HDMI
VGA
(RGB)
Best
Monitor
Good
Best
Best
• Remember to adjust the resolution of your
computer or HD Media PC to 1366 x 768 for
best performance.
Use the input button on the remote control or keypad
to navigate between the S-Video, AV, YPbPr, HDMI,
or VGA inputs.
are trademarks of Westinghouse Electric
Comienzo Aquí
Démarre Entière
Antenna Inputs
3
PC INPUTS
DVI-HDMI
Best
Customer Service: 866.287.5555 • www.westinghousedigital.com
¿SABÍA USTED QUE SU TELEVISOR CON
MONITOR HD TAMBIÉN TIENE:
• Fácil acceso lateral a los conectores a través del innovador
diseño espinal
• Bocinas de estéreo de 15 watts
CONSULTE
www.westinghousedigital.com para ver nuestras:
• Opciones de montaje en pared con versátiles decorados
• Línea completa de pantallas de televisiones y de computadoras
GO!
COMPUTER
Connect a computer and
corresponding audio to the
VGA input.
No DVI on this model.
S-Video
Video
S-Video & Video
Audio Input
SPDIF
Audio Output
Audio Input
Antenna
Audio/VGA/YPbPr/
HDMI Inputs
Press the power button on the keypad
to turn on the LCD TV.
Audio In
VGA
YPbPr 2
YPbPr 1
Input
Input
YPbPr 1
YPbPr 2
Audio Input
HDMI
HDMI Audio
Input
