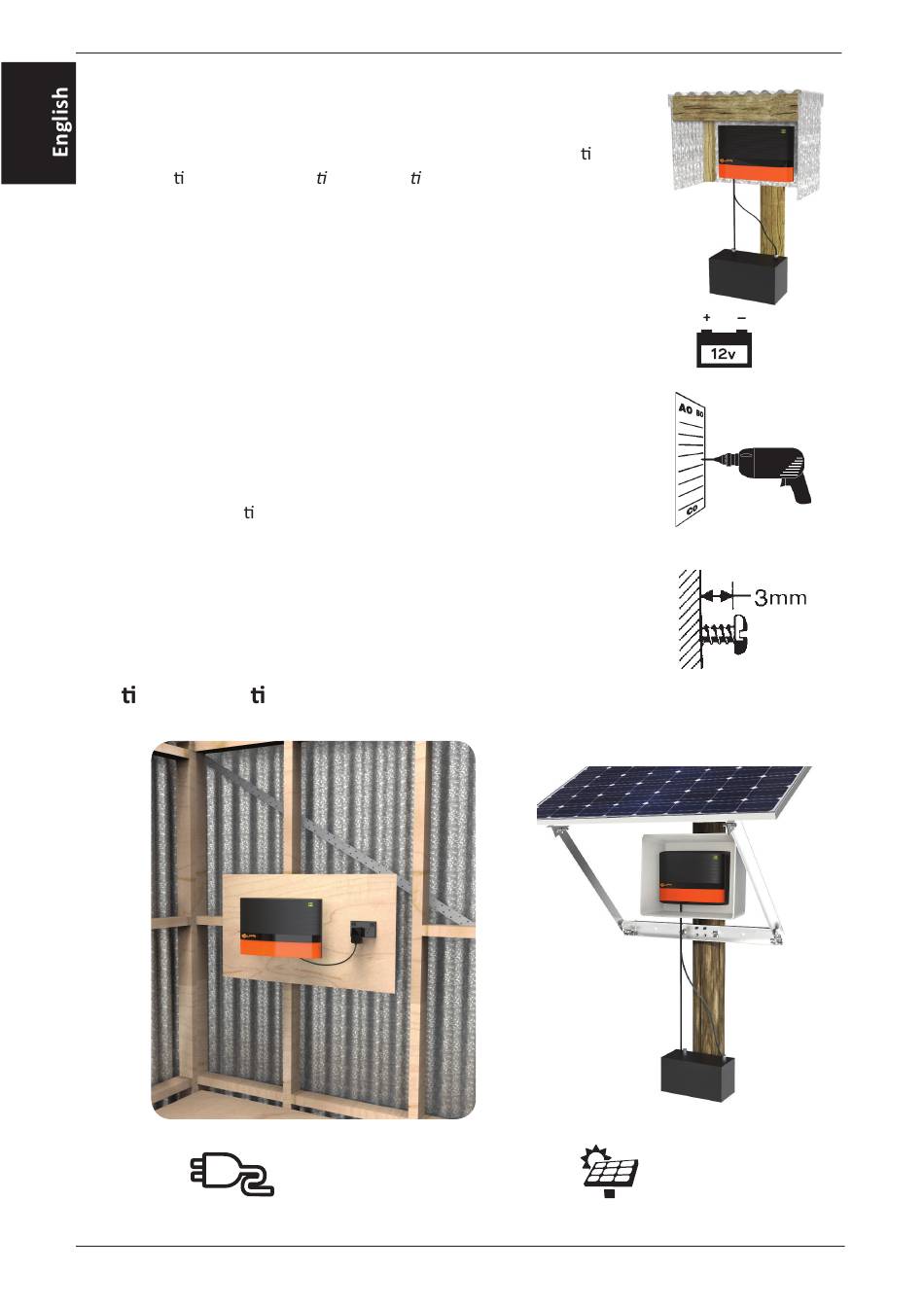

Step 1. Install the Energizer
Energizer must be installed under cover, where it is
protected from the environment. For further installa on
op ons refer to Mul Power Op ons below.
Mount the energizer on a wall and out of reach of children.
Install where there is no risk of the energizer incurring fi re
or mechanical damage and if possible away from heavy
electrical equipment eg. pumps or other
items that may cause electrical interference.
e) Using the template on the back page, drill 2 x 4mm
(5/32") holes (E & F).
f) Fix the screws provided into the wall leaving the head of
the screw about 3mm (1/8") out from the wall.
g) Place the energizer over and slide down onto the
moun ng screws.
h) Remove orange terminal cover to expose Fence, Earth
and Reference Earth terminals.
Mul Power Op ons
8
Mains
Powered
Battery
Powered
Solar/ Battery
Powered
a
b
