HUBITOOLS HU31010 Manual Del Usuario página 16

input jack on the test instrument.
2. Select InfraRed Temperature (℃/
3. Press the probe button laser, the Infrared Temperature Probe ON
4. Point the tip of the probe as close as possible to the object being measured without touching the object.
5. Read the test instrument display.
Additional considerations are:
 Release the probe button laser and the Infrared Temperature Probe OFF the DMM display will show 0°C or 0°F or 0mV.

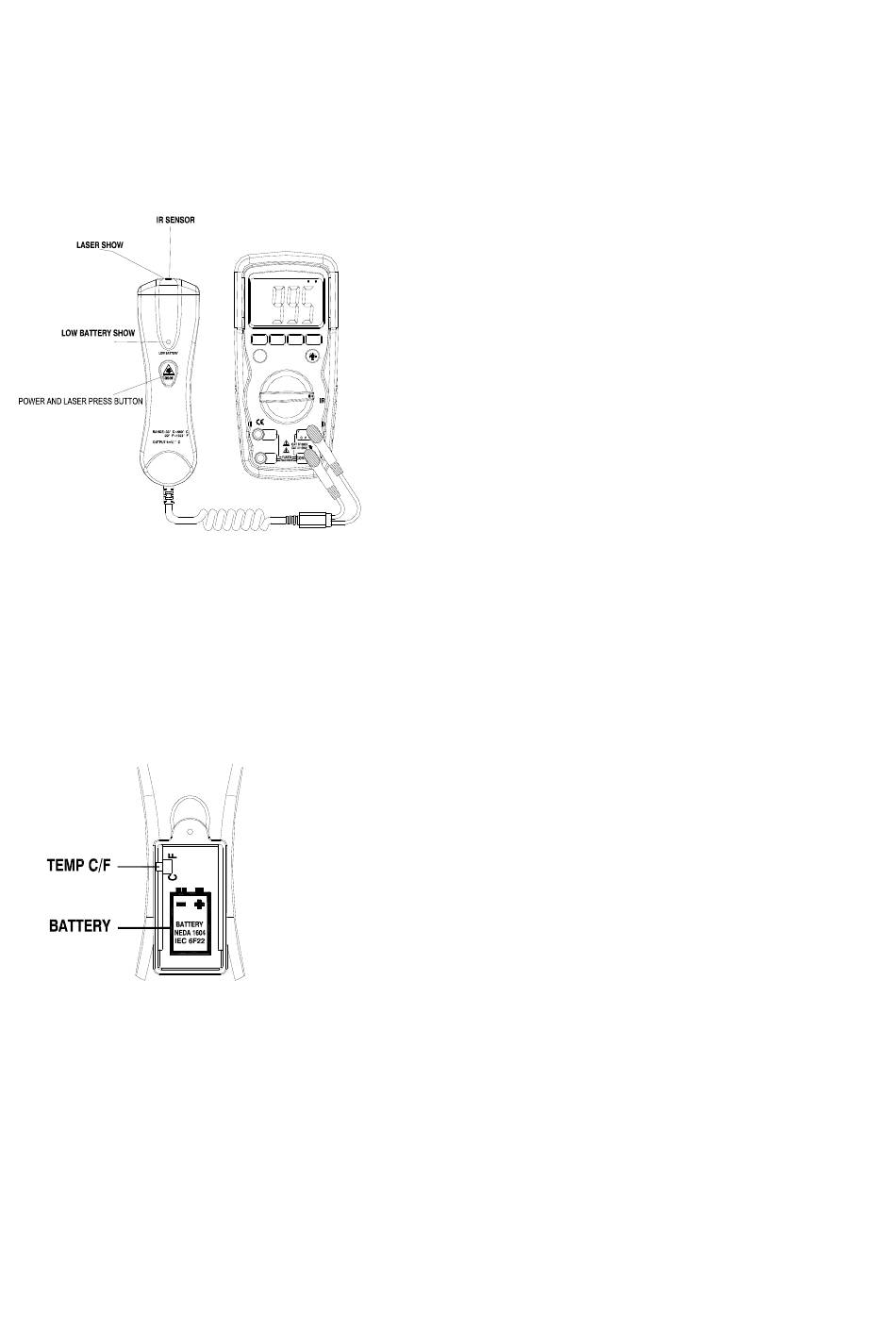

 The temperature scale can be changed to °C or °F
by removing the battery from the battery
compartment and moving the internal °C/°F switch
to the desired position.
 If the test instrument displays an overload
condition, switch the DMM range from mV dc to V
dc. Increasing the range to V dc moves the
decimal position three places to the left (500°F
displays as 0.500V).
Note: Measurement considerations
Holding the meter by its handle, point the IR Sensor toward the object whose temperature is to be
measured. The meter automatically compensates for temperature deviations from ambient temperature.
Keep in mind that it will take up to 30 minutes to adjust to wide ambient temperatures are to be measured
followed by high temperature measurements, some time (several minutes) is required after the low (and
0
F ) or mV dc range on the test instrument.
C F
¡ ã C
¡ ã F
¡ ã ¡ ã
9V
