Outsider GFS20317F Manual De Instrucciones página 11

S T E P 8
Requires: A1, A2, A3, C1, H2, K
F I N A L A S S E M B L Y

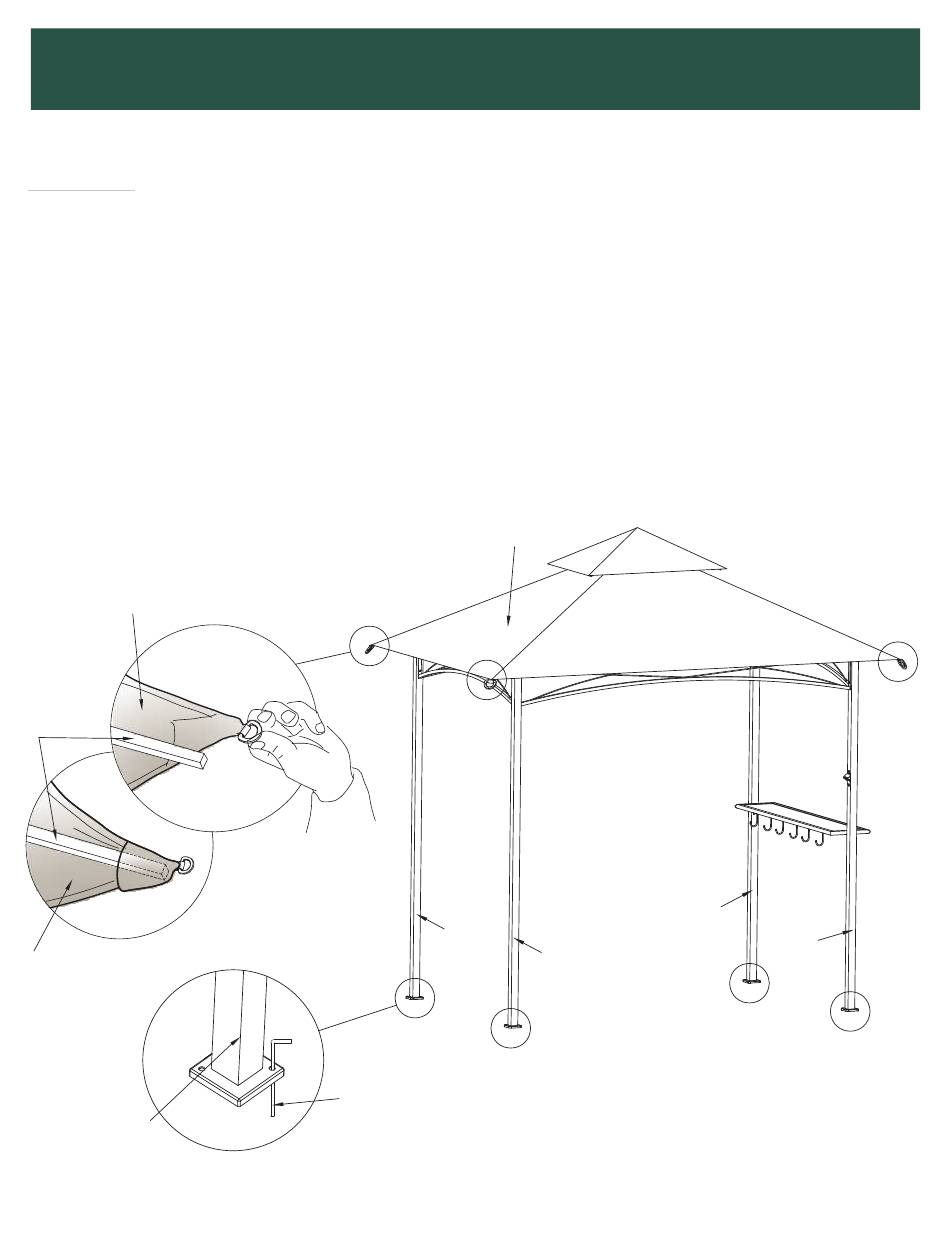

Finish installing the Lower Canopy (H2) by pulling down and out on the D-loops at each corner
and inserting the ends of the Long Corner Rafters into the fabric pockets on the Lower Canopy.
For the easiest assembly it is recommended to start with the Right Front Leg (A2), then move to
Left Rear Leg (A3), then Left Front Leg (A3), and finish with Right Rear Leg (A1). If installing on the
ground, insert Ground Stake (K) through one hole on each Leg (A1, A2, & A3). Be sure to use the
appropriate fasteners (not provided) to secure the Grill Gazebo if installing on a wood or
composite deck, or onto a concrete or paver patio. Your local store can help you find the
appropriate fastener for your application.
