Installation to an electrical outlet box

WarnInG: RISK OF ELECTRIC SHOCK. Ensure the electricity to the wires you are working on is shut off. Either remove the fuse or turn off
the circuit breaker before removing the existing light fixture or installing the new one.
1

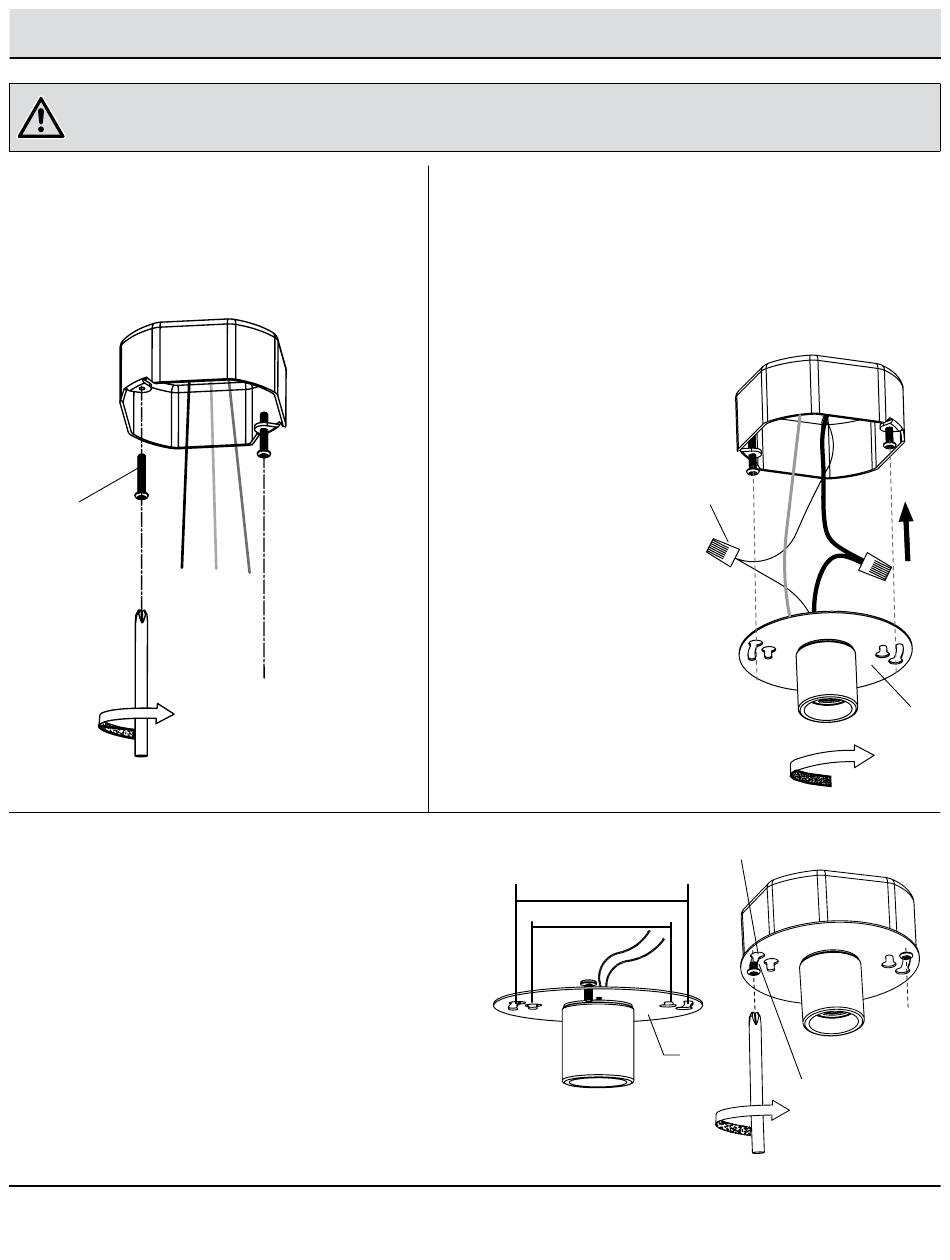

Attaching the mounting screws
to the electrical outlet box
□ Attach the mounting screws (BB) directly to the
electrical outlet box.
BB
3
Attaching the SpeedMount socket to
the electrical outlet box
□ Select the mounting holes on the SpeedMount
socket (CC) mounting bracket according to the size of the
electrical outlet box.
□ Position the SpeedMount socket (CC) over the electrical
outlet box, allowing the heads of the mounting screws (BB)
to come through the large ends of the keyholes.
□ Turn the SpeedMount socket (CC) clockwise until the heads
of the mounting screws (BB) slide into the narrow ends of
the keyholes.
□ Tighten the mounting screws (BB) to secure the SpeedMount
socket (CC) to the electrical outlet box.
2

Making the electrical connections

□ Connect the white wire from the SpeedMount socket (CC) to the
white wire from the electrical outlet box.
□ Connect the black wire from the SpeedMount socket (CC) to the
black wire from the electrical outlet box.
□ Cover the wire connections
using the wire connectors
(AA).
□ Wrap the wire connections
with electrical tape for a
more secure connection.
□ Wrap the ground wire from
the electrical outlet box
around the ground screw
on the SpeedMount socket
(CC) mounting bracket.
□ Position the wires back
inside the electrical
outlet box.
3.54 in.
2.75 in.
5
Please contact 1-877-527-0313 for further assistance.
