Installation (continued)
3

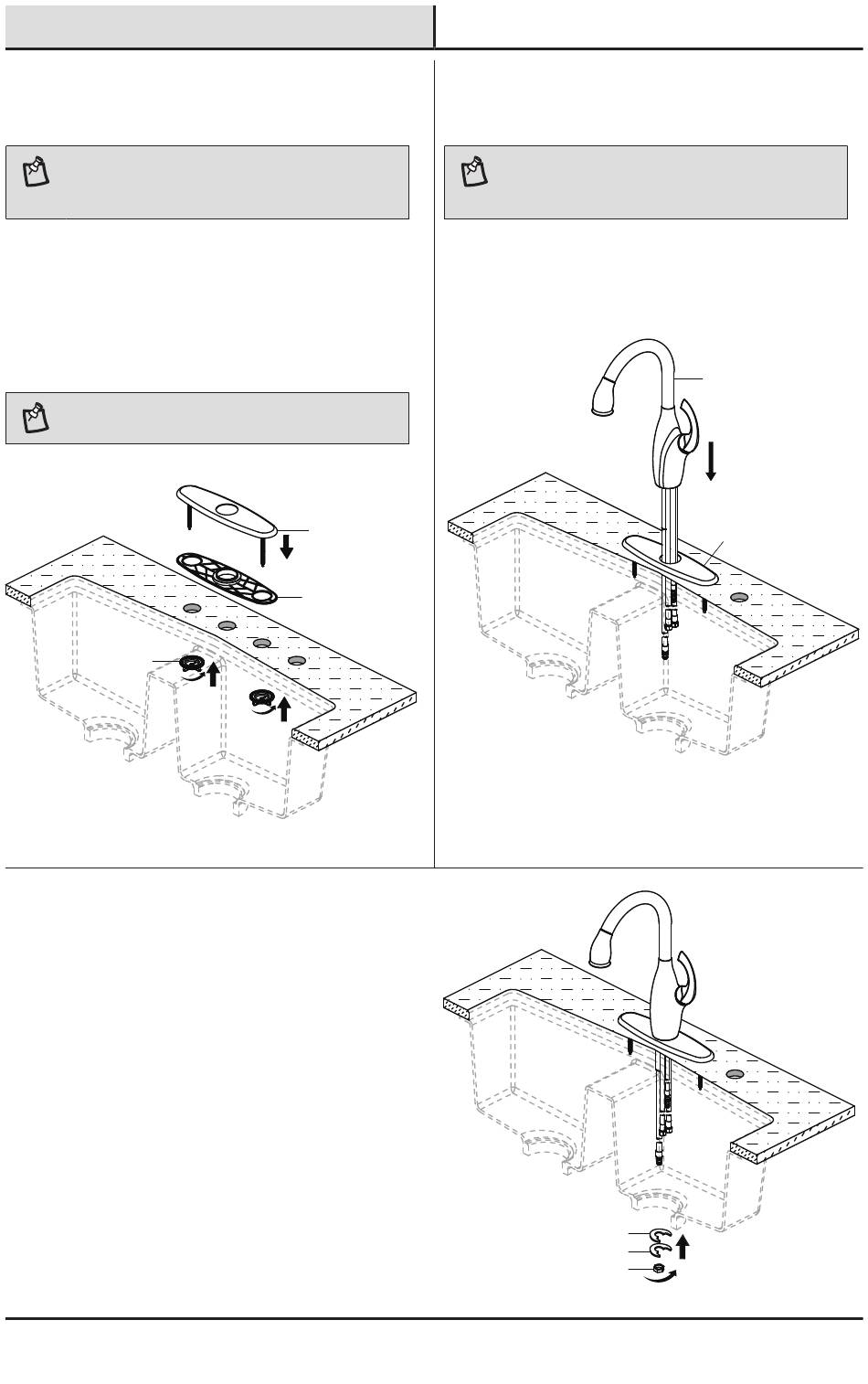

Installing the escutcheon

NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 2.
□
Ensure that the gasket (G) is pressed onto the
escutcheon (F) before the escutcheon (F) is
installed over the three holes in the sink.
□
From underneath sink, hand tighten the
mounting nuts (H). Do not overtighten.
NOTE: If the sink is uneven, use silicone under the
gasket (G).
H
5
Securing the faucet assembly
□
Install the rubber washer (B), and metal washer
(C) onto the threaded mounting shank.
□
Thread the nut (D) onto the mounting shank
using the basin wrench. Do not overtighten.
4
□
F
G
5
Installing the faucet assembly
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 2.
Insert the faucet assembly (A) through the hole
in the escutcheon (F).
B
C
D
www.schonsimplymodern.com
Please contact (800) 880-8164 for further assistance.
A
F
