Huisen Furniture MS18-D1-1009-08 Manual De Instruccion página 7

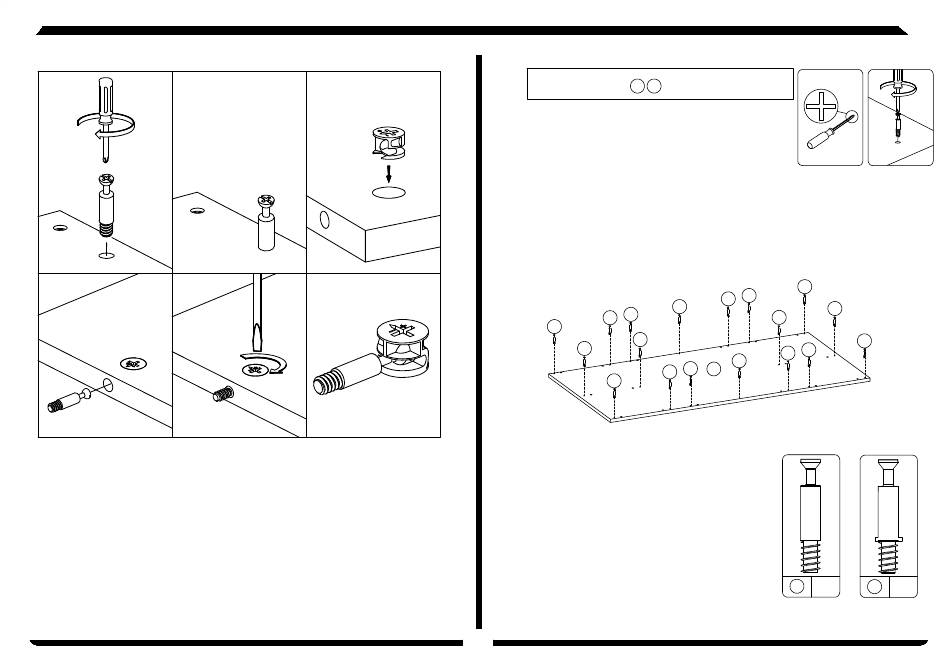

This illustration shows how the CAM fastening system works.
1 2
4 5
. SCREW CAM BOLTS INTO THE PANELS TO COVER THE 3
THREADS ON THE BOTTOM OF THE CAM BOLT. THE LARGER
RING ABOVE THE 3 THREADS SHOULD REST ON THE PANEL.
. Position the CAM LOCK so the opening is facing the outer
raw edge of the shelf.
. When connecting the side panels to the shelves, the CAM
LOCK is turned approximately ½ way clockwise to secure
the bolt.
. Failure to properly lock the CAM LOCK could result in
instability or collapse.
1
3
6
7
Insert hardware to part A as shown.
3 4
3
3
3
3
4
4
3 A
3
3
3
3
3
4
4
3
3
3
3
3 x14
4 x 4
Cam bolt 1 Cam bolt 2
