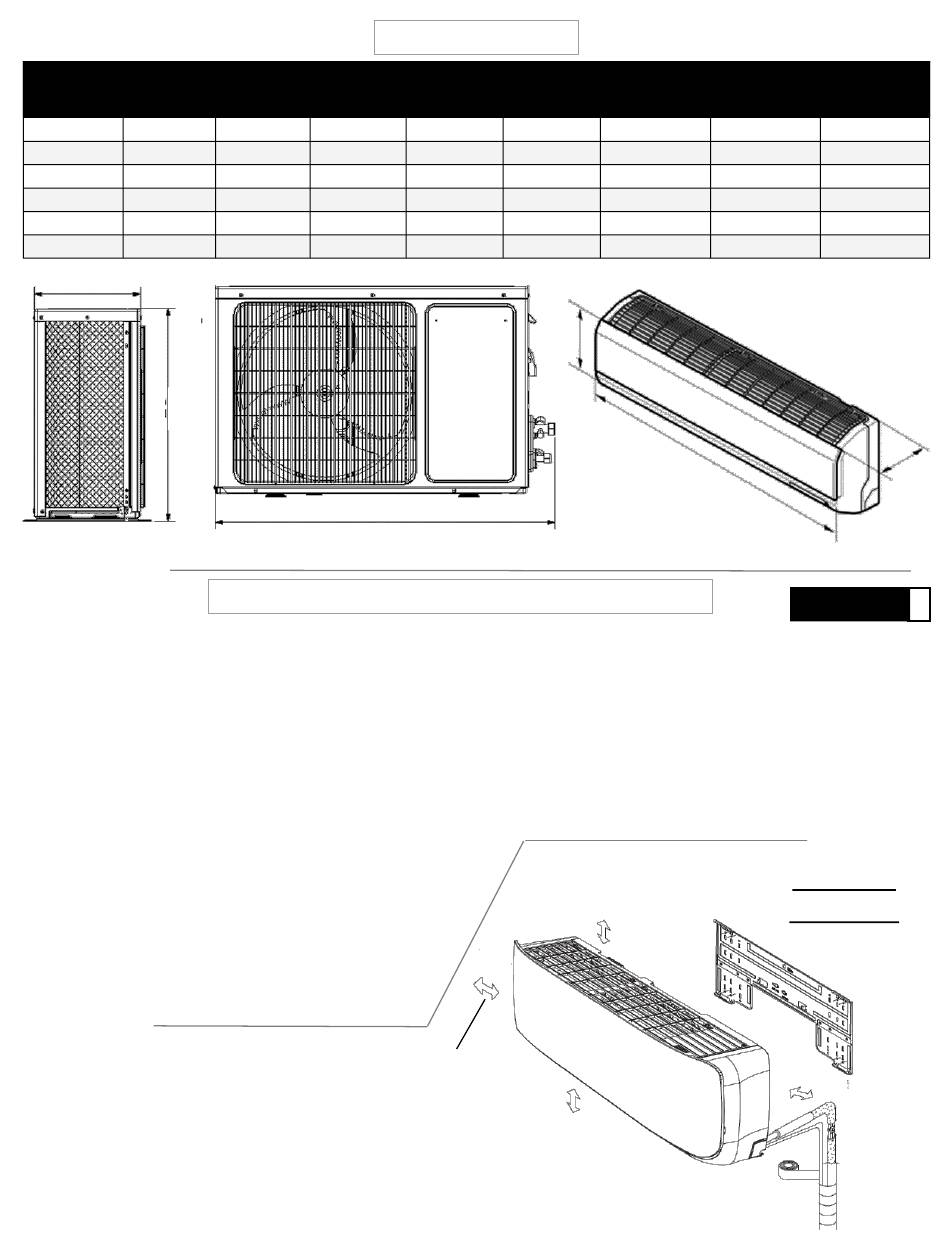

Dimensions: 3.0 - Hessaire H Serie Instrucciones De Instalación

Model Indoor
Number Unit Wt.
H12E1 21.0 lbs
H12HP1A 20.0 lbs
H12HP2A 20.0 lbs
H18E2 32.0 lbs
H18HP2A 28.0 lbs
H24HP2A 33.0 lbs
D
H
Outdoor Unit
(side view)
When selecting location for indoor unit, it is recommended that:
- it allows for maximum air circulation
- it has a convenient drainage location
- the area doesn't cause noise issues for other people
- it is on a strong enough structure(wall) to support it's weight
- it is at least 3ft from all other electrical devices(computer, TV, radio, etc.)
- it is located where piping and wall hole can easily be arranged - avoiding wall studs when drilling 3" hole
- you adhere to minimum clearances shown below
Be sure to avoid installing near:
- sources of heat, steam or combustible gases
- flammable materials such as curtains
- obstacles that would potentially block air circulation
- areas in direct sunlight
- doorways
122821

Dimensions: 3.0

Outdoor Indoor Unit
Unit Wt. Width (W)
78.0 lbs 33.5"
65.0 lbs 32.0"
65.0 lbs 32.0"
99.0 lbs 44.5"
86.0 lbs 36.0"
110.0 lbs 43.0"
W
Outdoor Unit (front view)
Indoor Unit Installation: 4.1 Select Location
Minimum Distance From
Side Wall: 2 inches
Indoor Unit Indoor Unit
Height (H) Depth (D)
11.0" 8.50"
11.0" 8.50"
11.0" 8.50"
12.5" 9.50"
12.5" 9.50"
12.5" 9.50"
H
Recommended Distance
From Floor: 8 feet
4
Outdoor Unit Outdoor Unit
Width (W) Height (H)
32.0" 23.0"
28.0" 19.0"
28.0" 19.0"
34.0" 26.0"
32.0" 24.0"
37.0" 26.5"
Indoor Unit
W
Minimum
Distance
From Ceiling:
8 inches
Outdoor Unit
Depth (D)
11.0"
10.0"
10.0"
12.5"
11.5"
12.5"
D
Skill Level
1
Indoor Unit
Clearances:
Min.
Distance
From
Side Wall:
2 inches
