6. DMX-512 CONTROL CONNECTIONS
Connect the provided XLR cable to the female 3-pin
XLR output of your controller and the other side to
the male 3-pin XLR input of the moving head. You
can chain multiple Moving head together through
serial linking. The cable needed should be two
core, screened cable with XLR input and output

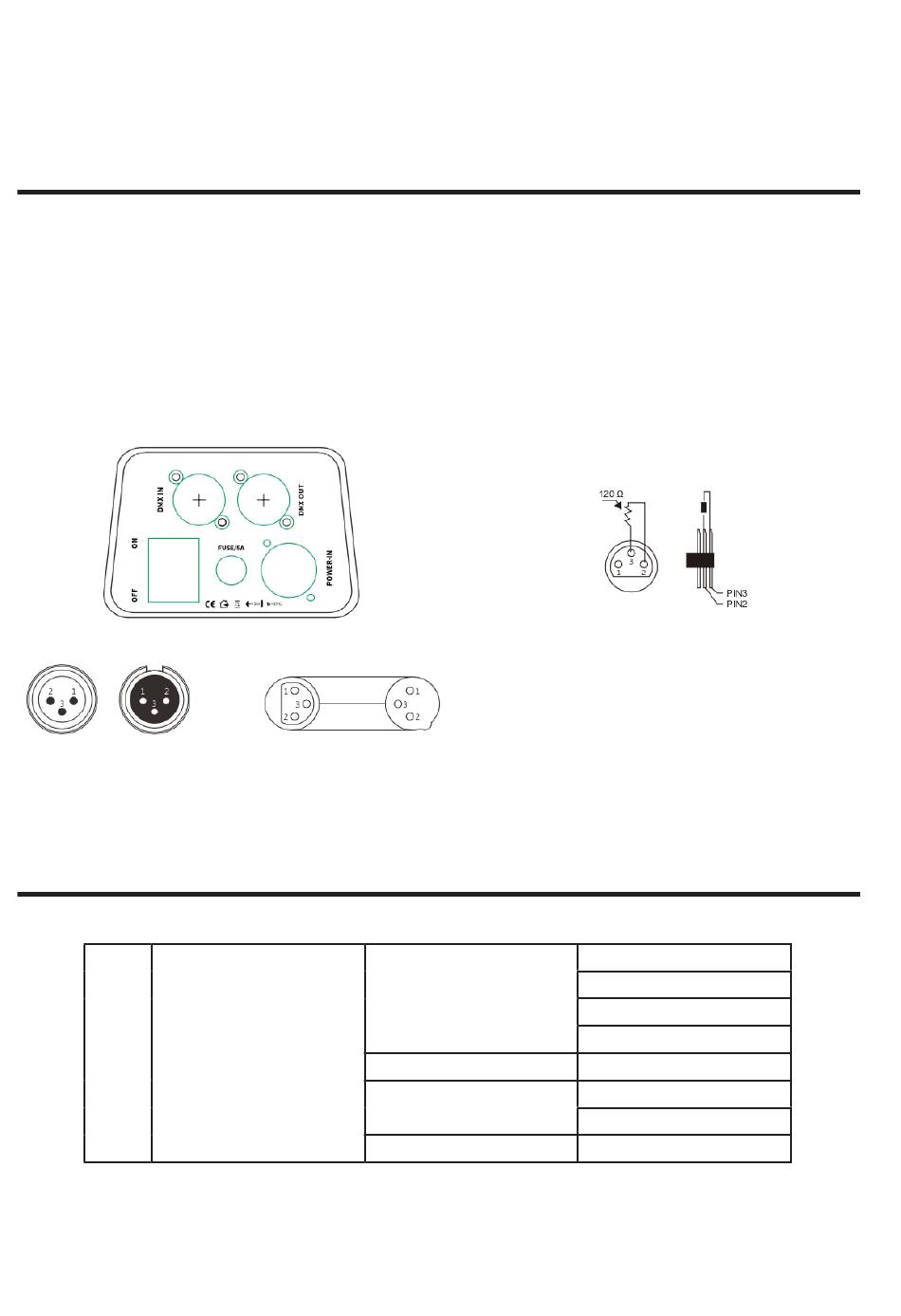

connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator.
DMX Output
DMX Input
3-Pin XLR Socket
3-Pin XLR Socket
7. MENU OPERATIONS
Menu
COMMON
1: Ground
DMX+
2: Data (-)
3: Data (+)
DMX-
DMX512 Out
3-PIN XLR
Setup
For installations where the DMX cable has to
run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is
recommended to use a DMX terminator. This helps
in preventing corruption of the digital control signal
by electrical noise. The DMX terminator is simply an
XLR plug with a 120 Ω resistor connected between
pins 2 and 3,which is then plugged into the output
XLR socket of the last fixture in the chain. Please
see illustrations below.
DMX512 In
3-PIN XLR
RunMode
DMX Address
Channel Mode
Sound Regulator
DMX
Auto
Random
Sound
001-512
Std.16CH
Ext.20CH
+000~-000
| Tecshow Beamer 230
