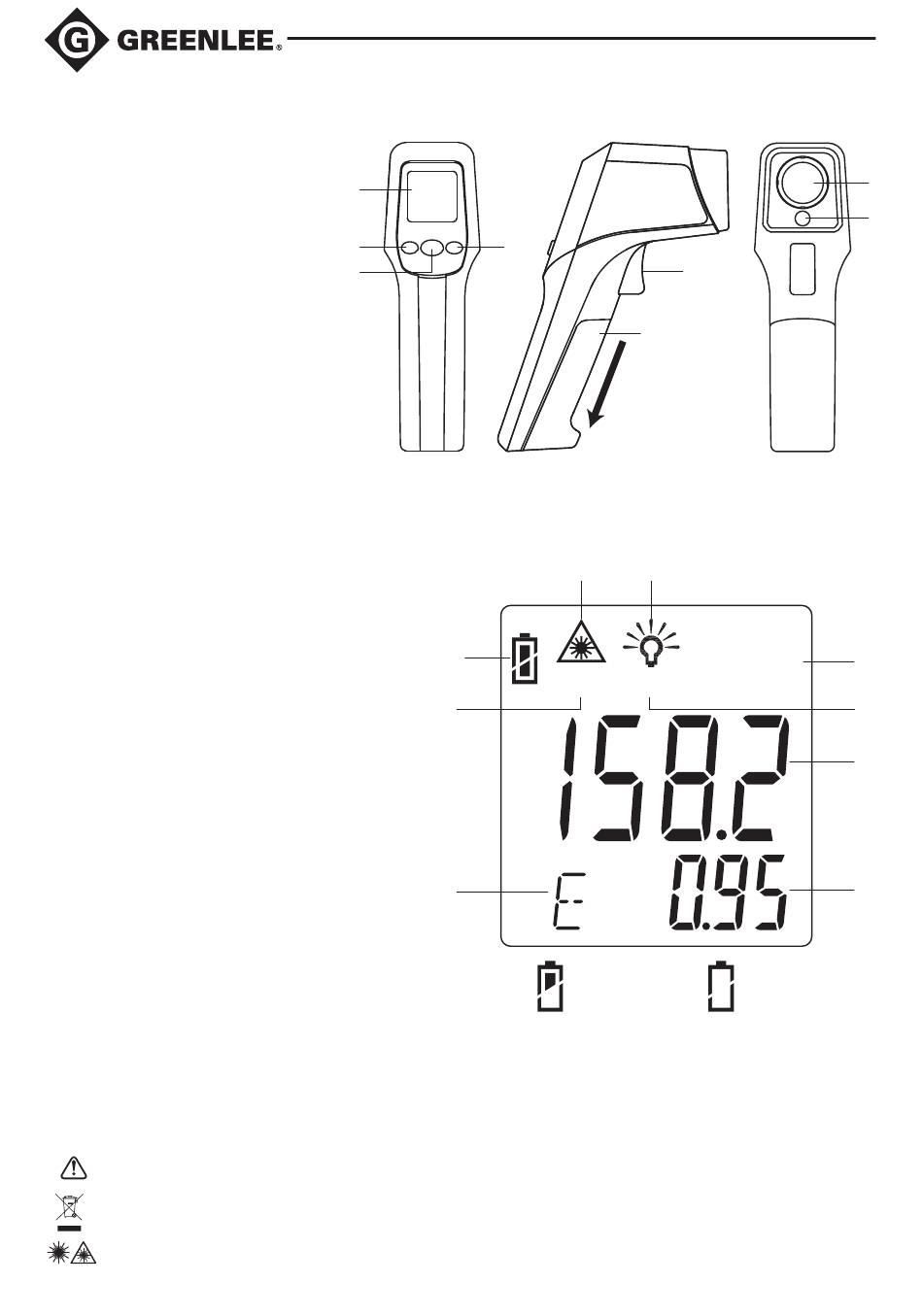

Identification
1. Display
2. Decrease button
and °C/°F selector
3. Mode selector
4. Increase button
and Lock button
5. Trigger
6. Battery compartment door
7. Lens
8. Laser

Display Icons

10. Hold mode indicator
11. Full battery indicator
11A. Low battery indicator
11B. Dead battery indicator
12. Laser ON indicator
13. Backlight ON indicator
14. Celsius or Fahrenheit indicator
15. Lock mode indicator
16. Temperature indicator
17. Mode value indicator
18. Mode indicator
Symbols on the Unit
Warning—Read the instruction manual.
Recycle product in accordance with manufacturer's directions.
Laser radiation is emitted from this unit.
