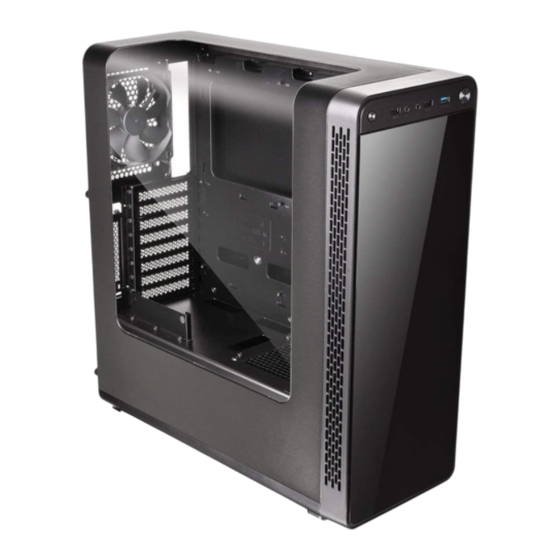

Thermaltake View 27
o
view 27
User's Manual
Benutzerhandbuch
Mode d'emploi
Manual del usuario
Manuale dell'utente
Manual do Utilizador
安裝說明書
用戶手冊
ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
คู ่ ม ื อ การใช้
Publicidad
Manuales relacionados para Thermaltake View 27
Resumen de contenidos para Thermaltake View 27
- Página 1 Manuale dell’utente Manual do Utilizador 安裝說明書 用戶手冊 ユーザーズマニュアル Руководство пользователя © 2016 Thermaltake Technology Co., Ltd. All Rights Reserved. A-2016.07 kullanıcı elkitabı All other registered trademarks belong to their respective companies. www.thermaltake.com (EEE Yönetmeliğine Uygundur) คู ่ ม ื อ การใช้...
- Página 2 Motherboard Screw M3 x 5 mm Motherboard/ODD/FDD/2.5”HDD Chapter 4. Other Screw # 6-32 x 6 mm 3.5"HDD(HDD Tray) Thermaltake Power Supply Series (Optional) Screw M3 x 5 mm Power Supply *Picture for reference only HDD Cage Screw Ø3 x 5mm...
- Página 3 Warning and Notice CPU Cooler Height Limitation VGA ( Add- on card) Length Limitation Atenção!! - Limite de altura para o dissipador do CPU: O limite de altura para o dissipador do CPU é 155 mm (6,1 polegadas). - Limite de comprimento para VGA (placa gráfica): O limite de comprimento para VGA (placa gráfica) é...
- Página 4 PSU Installation Side Panel Disassembly English / 繁體中文 / Place the power supply in proper location and 將電源供應器放在正確的位置，並用螺絲固定 English / 繁體中文 / secure it with screws. 鎖上。 Remove the screws on the back of the chassis, 移除機殼後方螺絲，將側窗打開。 and open the side panel. Deutsch / 简体中文...
- Página 5 3.5” & 2.5" HDD Installation Motherboard Installation With HDD Tay 3.5" HDD 2.5" HDD 2.5" HDD English / 1. Pull the HDD tray out. 2. Place the HDD on proper location and secure it with screws. 3. Slide the HDD tray back to the HDD cage. 繁體中文...
- Página 6 PCI Slot Usage Without HDD Tay Type A Direct installing to Motherboard 2.5" HDD Note: Type B Extend installing to Motherboard (Optional)
- Página 7 Radiator Installation Air Cooling Installation Front Fan 120mm x 3 English / 繁體中文 / Fix the radiator with screws. 用螺絲鎖固散熱排。 HDD Fan 120mm x 1 Deutsch / 简体中文 / Befestigen Sie den Kühler mit Schrauben. 用螺丝锁固散热排。 Français / 日本語 / Fixez le radiateur de avec des vis.
- Página 8 Leads Installation Français English Guide d'installation des fils Leads Installation Guide Connexion des voyants du boîtier / Sur la face avant du boîtier, vous trouverez plusieurs voyants et les fils des Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user boutons.
- Página 9 Italiano 繁體中文 線材安裝說明 Guida di installazione dei contatti 機殼LED連接方式 / 在機殼前方的面板後面，可以找到一些LED與開關線材（POWER Switch….），請參考主機板使用說明書， Connessione del LED del case / Nella parte anteriore del case, sono presenti alcuni contatti per interruttori e LED. 並將機殼上的線材正確地連接到主機板上，這些線材通常都會印有標籤在上面，如果沒有的話，請找出機殼前方面板上線材原 Consultare il manuale utente del produttore della scheda madre, quindi connettere i contatti alla parte superiore del 本的位置以知道正確的來源。...
- Página 10 日本語 Türkçe リード線の取り付けガイド Ara Kablo Kurulum Kılavuzu Kasa ışık bağlantısı / Kasanın ön kısmında bazı ışıklar ve anahtar ara kabloları görebilirsiniz. Lütfen anakart üreticinizin ケース LED の接続 / ケース前面には、LEDとスイッチリード線があります。 マザーボードメーカーのユーザーマニュアル sağladığı kullanım kılavuzuna bakın ve daha sonra, bu ara kabloları, anakart üzerindeki panel bağlantı noktalarına bağlayın. を参照し、これらのリード線をマザーボードのパネルヘッダに接続してください。...
- Página 11 Quality From Within Share your thoughts and builds with the community Every power supply units from Thermaltake should pass a very strict quality control before sent to Enter monthly contests and giveaways customers, including BIT(Burn-in-test) for over 8 continuous hour in a 45℃ room to test if a unit can run normally under usual scene, and Hipot test to ensure the power supply unit can survive and protect both users and their systems when the voltage volume surges.
- Página 12 Note: Note:...
