FreeSpace

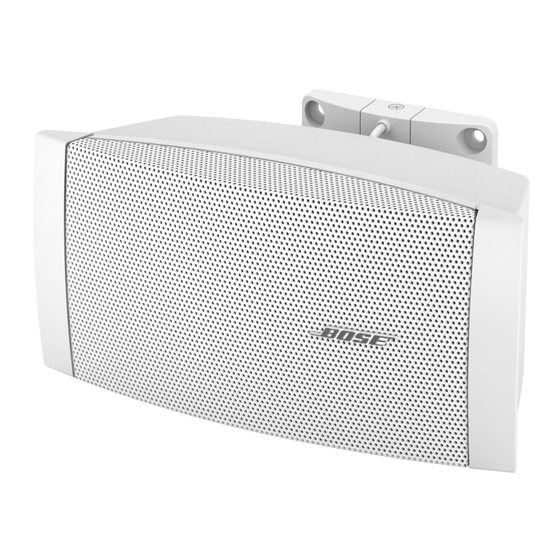

Surface-mount Loudspeaker
DS16SE
Installation Guide*
lnstallationsvejledning*
lnstallationsanleitung*
Gufa de instalaci6n*
Guide d'installation*
Guida all'installazione*
lnstallatiehandleiding*
lnstallationsanvisning*
Publicidad
Manuales relacionados para Bose FreeSpace DS16SE
Resumen de contenidos para Bose FreeSpace DS16SE
- Página 17 ® ® Bose FreeSpace DS 16S and DS 16SE Loudspeakers Installation Guide* Installationsvejledning* Installationsanleitung* Guía de instalación* Guide d’installation* Guida all’installazione* Installatiehandleiding* Installationsanvisning* * For use by trained installers only. * Kun til brug for erfarne installatører. * Montage ausschließlich durch ausgebildetes Installationspersonal.
- Página 18 Installation Package Contents Kassen indeholder Packungsinhalt El paquete contiene Contenu de l’emballage Contenuto della confezione Inhoud van de verpakking Paketets innehåll Dimensions Mål Abmessungen Dimensiones Dimensions Dimensioni Afmetingen Dimensioner...
- Página 19 Installation Speaker orientation and angle Højttalerretning og -vinkel Lautsprecherausrich- tung und Winkel Orientación y ángulo de altavoz Angle et orientation des enceintes Orientamento e angolazione diffusore Richting en hoek luidspreker Högtalarorientering och vinkel...
- Página 20 Installation Tap setting as needed Indstilling af udtag efter behov Einstellung wie erforderlich Configuración de derivación si es necesaria Réglage depuissance Regolazione della potenza Gewenste aantal Watts Uttagsreglering vid behov • Choose a mounting position, method, and hardware consistent with local building codes Installing and regulations.
- Página 21 ® surface Bose ® Scatola di derivazione opzionale Bose con montaggio a parete ® Optionele, tegen de muur te monteren Bose -kabeldoos ® Bose -tillval – kopplingsbox för på-vägg-montering Bose optional in-wall junction box Bose-samlingsboks til montering i væg (ekstraudstyr) Optionale Bose-Verbindungsdose für die Unterputz-...
- Página 22 Installation Attaching directly to the wall Size holes for M4 or #8 anchors. Montering direkte på væggen Hulstørrelse til murankre type M4 eller nr. 8. Befestigung direkt an der Wand Löcher für M4- oder #8-Dübel. Fijación directa a la pared Tamaño de orificios para M4 o anclajes de pared del nº...
- Página 23 Installation Using an in-wall junction box Size holes for M4 or #8 anchors. Brug af samlingsboks i væggen Hulstørrelse til murankre type M4, nr. 8 eller anden passende størrelse. Verwendung einer Verbindungsdose für die Unterputz-Wandmontage Löcher für M4-, #8- oder andere passende Dübel.
- Página 24 Installation Connecting DS 16 70/100V Direct mount Direkte montering Direktmontage Tilslutning Montaje directo Montage direct Montaggio diretto Rechtstreekse montage Verbindung Direktmontering Conexión Connexion Connessione DS 16 8Ω Aansluiten Ansluta Bracket to optional in-wall junction box using direct input terminals Beslag til samlingsboks til montering i væg med direkte indgangsterminaler Befestigung an optionaler Unterputz-Verbindungsdose mit direkten Eingangsklemmen Soporte para caja de conexiones opcional de montaje empotrado empleando terminales de entrada directa...
- Página 25 Installation Bracket to optional in-wall junction box using ceramic terminals Beslag til samlingsboks til montering i væg med keramiske terminaler Befestigung an optionaler Unterputz-Verbindungsdose mit keramischen Eingangsklemmen Soporte para caja de conexiones opcional de montaje empotrado empleando terminales cerámicos Support de la boîte de branchement pour montage mural encastré avec bornes d’entrée céramique Staffa per scatola di derivazione opzionale a incasso con terminali in ceramica Beugel voor optionele, in de muur bevestigde kabeldoos met keramische connectors Fäste för valfri kopplingsbox för i-vägg-montering med hjälp av keramiska uttag...
- Página 26 Installation Attaching Montering Aufbau Montaje Fixation Installazione Monteren Montering...
- Página 27 Fire alarm: 400 Hz to 4 kHz General signaling: 80 Hz to 16 kHz (±3dB) The Declaration of Conformity for this product can be found at www.bose.com/static/compliance/index.html. Wire gauge ® The FreeSpace DS 16S and DS 16SE loudspeaker brackets are designed to work with 18 AWG (0.8 mm to 14 AWG (2.0 mm...
- Página 28 ©2006 Bose Corporation, The Mountain Framingham, MA 01701-9168 USA 299653 AM Rev.00 N10G...
- Página 29 Important • Vigtige • Wichtige • importante Important • Importanti • Belangrijke • Viktig CAUTION: DO NOT attempt to change the loudspeaker's position without completely loosening the fastener. Damage could occur if the fastener is not completely loosened before trying to adjust the loudspeaker angle.
- Página 30 VARNING: Försök inte ändra högtalarvinkeln utan att först lätta på skruvarna. Du riskerar att orsaka skada om du inte lossar på skruvarna innan du försöker ändra högtalarnas vinkel. ©2008 Bose Corporation, The Mountain Framingham, MA 01701-9168 USA AM316790 Rev.00...
- Página 34 Safety Cable Installation Guide Guía de instalación Guide d’installation Installationsanleitung Guida all’installazione Installatiehandleiding 安装指南 安裝指南 設置ガイド دليل التركيب...
- Página 35 HVAC system. Plenum In the diagram above, the installed Bose loudspeakers are circled and numbered: The flush-mount loudspeaker in this dining area requires a safety cable. The surface-mount in this dining area does not require a safety cable.
- Página 36 Visit bosepro.link/contact to find your local sales office. Gripple is a registered trademark of Gripple Limited. Bose is a trademark of Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.
- Página 37 Safety Cable Installation Guide PRO.BOSE.COM Installation Instructions For Flush-mount (In-ceiling) Loudspeakers 6.1 m (20.0 ft) HANGING INSTRUCTIONS Gripple hanging solutions www.gripple.com 152 mm (6 in) Note: The FreeSpace 3 Series II Acoustimass module requires the surface-mount safety cable. It does not have attachment points for the flush-mount safety cable.
- Página 38 PRO.BOSE.COM Safety Cable Installation Guide For Surface-mount Loudspeakers DS 16S/16SE FreeSpace 3 Series II DS 40SE Acoustimass DS 100SE 1.5 m Module (5.0 ft) HANGING INSTRUCTIONS M4 M5 Gripple hanging solutions www.gripple.com 152 mm (6 in) Unpack the contents of the Gripple surface-mount safety cable kit (839761- 0010): Safety cable (1 end with 90°...
- Página 39 ©2019 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM839140 Rev. 01 March 2019...
- Página 40 In-Wall Junction Box for FreeSpace DS 16S, DS 16SE, DS 40SE, and DS 100SE loudspeakers ® Contents Choose a mounting position, method, and hardware consistent with local building codes and regulations. Indhold Vælg monteringssted, -metode og tilbehør, der er i overensstemmelse med lokale byggevedtægter og Inhalt -bestemmelser.
- Página 41 Skruva inte in dem för hårt. Om du använder en skruvdragare ska du ställa in den på ett lågt vridmoment. ©2010 Bose Corporation, The Mountain Framingham, MA 01701-9168 USA AM300183 Rev.03...
- Página 42 3 Sensitivity measured in free field (no boundary-loading gain) with recommended active EQ, referenced to 1W/1m. 4 Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression. Bose Professional Systems Division OF 6 p r o . B o s e . c o m...
- Página 43 FreeSpace DS 16S / 16SE ® loudspeaker Directivity Index and Q Beamwidth Impedance On-Axis Response 1000 10000 20000 Frequency (Hz) DS16S Bose Professional Systems Division OF 6 p r o . B o s e . c o m...
- Página 44 FreeSpace DS 16S / 16SE ® loudspeaker Tap Chart Mechanical Diagrams Bose Professional Systems Division OF 6 p r o . B o s e . c o m...
- Página 45 FreeSpace DS 16S / 16SE ® loudspeaker Horizontal Plots Bose Professional Systems Division OF 6 p r o . B o s e . c o m...
- Página 46 FreeSpace DS 16S / 16SE ® loudspeaker Vertical Plots Bose Professional Systems Division OF 6 p r o . B o s e . c o m...
- Página 47 European regulatory meet numerous standards for combination music and evacuation specification for combination systems: systems around the world. The loudspeakers shall be the Bose FreeSpace DS 16S and ® ®...
- Página 48 CoveRage How consistent must the sound be • Always add 25% headroom to your amplifier to across the entire coverage area? accommodate various types of program material. Bose Professional systems Division p r o . B o s e . c o m...
- Página 49 FreeSpace DS 16S ® FreeSpace DS 16SE ® Design Worksheet use the following worksheet to create a design using the Freespace Ds 16s and se loudspeakers. step 1 Using the graph paper on the last page, create a sketch or drawing of the room. step 2 Confirm that the FreeSpace DS 16 loudspeaker will meet your loudness requirement.
- Página 50 FreeSpace DS 16S ® FreeSpace DS 16SE ® step 4 using your sketch of the room, create a loudspeaker layout using a Loudspeaker spacing from the table below that meets your coverage requirement. Coverage Loudspeaker Spacing Distance Premium 25ft | 7.5m Standard 30ft | 9.0m Minimum...
- Página 51 ® All information subject to change without notice. ©2007 Bose Corporation. Bose and FreeSpace are registered trademarks of Bose Corporation. p r o . B o s e . c o m Other marks are the property of their owners.
