Description of the product

4.1

Overview

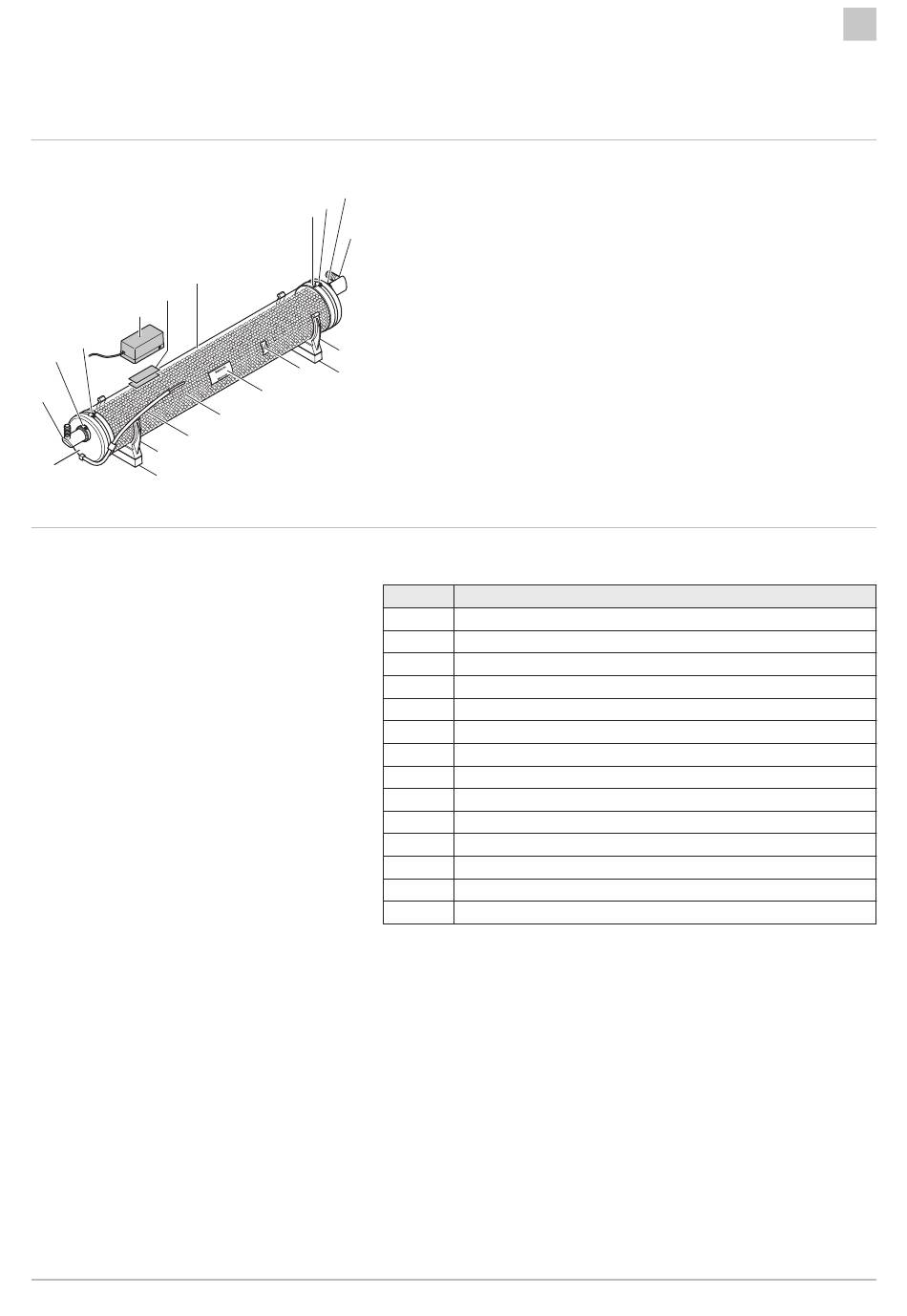

Fig.15 Overview NEOP 300
6
5
4
3
2
1
14
9
15
10
4.2

Standard delivery

7311618 - 04 - 20022020
2
3
7
8
9
11
10
12
13
RA-0001675
Tab.8
Volume
1
1
2
2
2
5
1
2
2
2
1
1
1
1
1 Inlet connection and hose connection ¾"
2 Hose clamp
3 Hose clamp
4 Pump
5 Velcro strips
6 Neutralisation pipes
7 Service cover
8 Outlet connection with the pipe screen and hose connection ¾"
9 Brackets
10 Installation heightenings
11 Label for vertical filling level
12 Label for horizontal filling level
13 Granulate
14 Air hose with check valve
15 Cover with diffuser
Designation
Booster pump incl. connection cable 3.5m
Foam rubber 9/15 mm, l = 100 mm
Brackets for floor installation
Installation heightenings
Velcro strips, self-adhesive, 90 x 25 mm
Strip for ph measurement
Indicator card with pH color scale
Hose clamps
Pipe screen DN 40
Angle hose nozzle 90°, DN 15
Cleaning rod l = 1000 mm
PVC hose with insert, transparent
Label "Neutralisation-next check"
Assembly instructions
