6.4.1 Connecting up the aspiration unit (optional for DM 30-40-50, DM 4R)
1
Figure
2
Figure
STARTING UP THE EQUIPMENT
6.5
3
Figure
4
Figure
158 of 272
EN

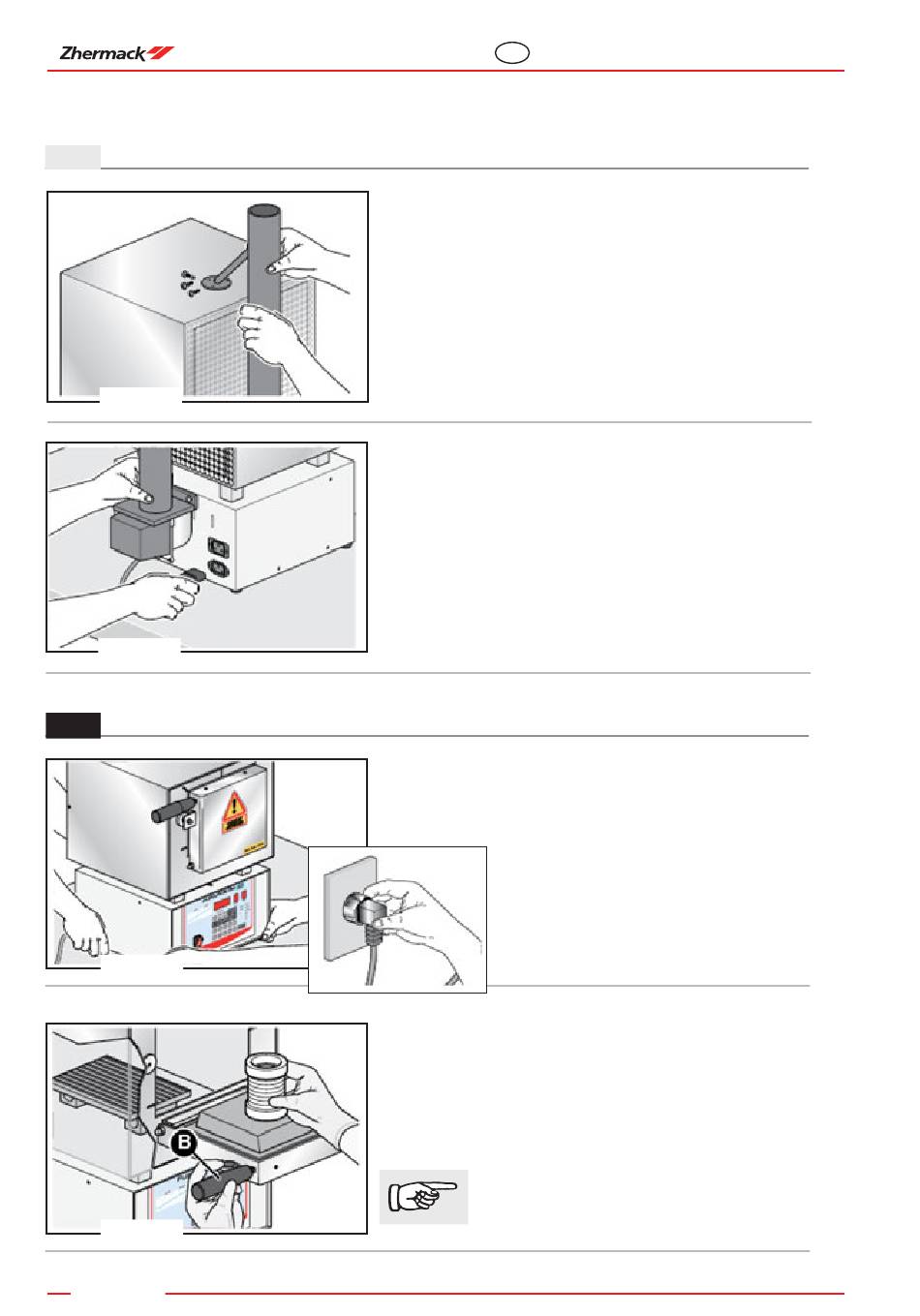

Fig. 1: Remove the bleeder from its seat and connect
up the aspirator using the screws supplied with the
aspirator itself.
Fig. 2: Finally, insert the aspirator plug in the socket on
the rear panel of the oven base.
Fig. 3: Position the equipment correctly in the
designated area, observing the instructions in paragraphs
6.3 and 6.3.1.
Connect the lead to the mains power
socket: follow the instructions in section
6.4 carefully.
Fig. 4: Open the oven door using the handle (B).
After placing the grooved plate and the refractory
supports (see diagram) inside the oven, insert the firing
cylinders and close the door properly.
Even when the DM oven is at ambient
temperature it is still advisable to use
protective gloves during handling.
