NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.

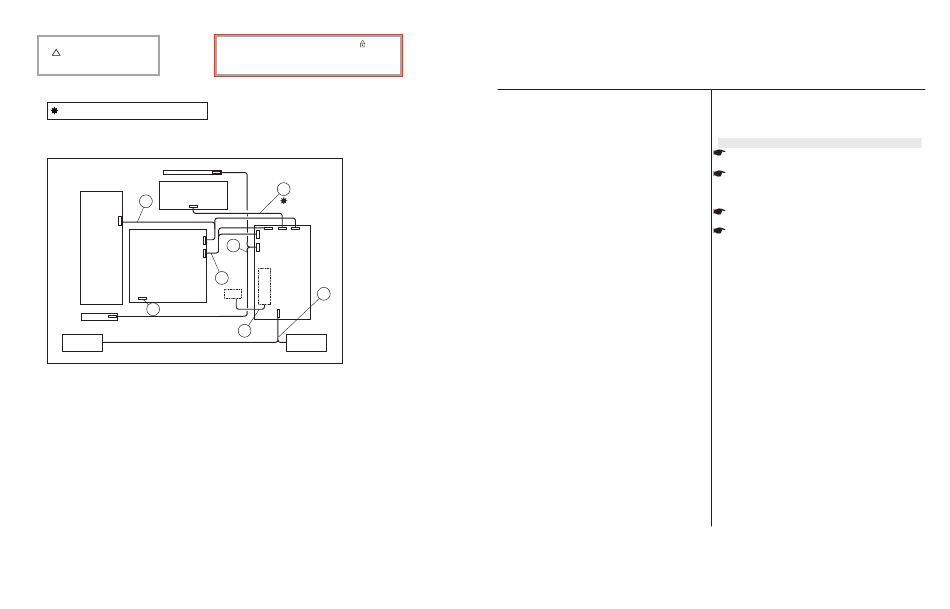

4-3. CONNECTORS (KLV-26M400A/32M400A/37M400A ONLY)
2-580-629-01
SCREW, +BVST 3X8
HB1
T-CON
INV
107
POWER UNIT
CN601
CN602
106
HM3
CN301
SP
KLV-26M400A/32M400A/37M400A/40M400A
NOTE: The components identifi ed by a red outline and a
mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
CN101
101
4002
4003
4500
4001
104
3008
BG2A
105
102
CN2000
103
SP
REF. NO.
PART NO.
DESCRIPTION
[ASSEMBLY INCLUDES]
101
1-835-687-11
30P LVDS CABLE
(KLV-26M400A ONLY)
101
1-835-169-11
LVDS CABLE
(KLV-32M400A ONLY)
101
1-835-686-11
30P LVDS CABLE
(KLV-37M400A ONLY)
102
1-910-044-87
CONN ASSEMBLY, 4P SPEAKER FASTON
(KLV-26M400A ONLY)
102
1-910-044-93
CONN ASSEMBLY, 4P SPEAKER FASTON
(KLV-32M400A ONLY)
102
1-910-044-94
CONN ASSEMBLY, 4P SPEAKER FASTON
(KLV-37M400A ONLY)
103
1-835-207-11
P-F CABLE
104
1-910-044-74
CONN ASSEMBLY, 11P MM CRIMP 740
(KLV-26M400A ONLY)
104
1-910-044-77
CONN ASSEMBLY, 11P MM CRIMP 890
(KLV-32M400A ONLY)
104
1-910-044-88
CONN ASSEMBLY, 11P MM CRIMP 1050
(KLV-37M400A ONLY)
KLV-26M400A/32M400A/37M400A/40M400A
REF. NO.
PART NO.
DESCRIPTION
[ASSEMBLY INCLUDES]
105
1-910-045-09
CONN ASSEMBLY, 13P MM CRIMP 280
(KLV-26M400A/37M400A ONLY)
105
1-910-045-07
CONN ASSEMBLY, 13P MM CRIMP 280
(KLV-32M400A ONLY)
! 106
1-835-327-11
AC POWER CORD (WITH CONNECTOR)
107
1-910-044-75
CONN ASSEMBLY, 14P MM CRIMP 420
(KLV-26M400A 4,000,001 TO 4,199,999 ONLY)
107
1-910-049-39
CONN ASSEMBLY, 14P MM CRIMP 420
(KLV-26M400A 4,200,001 & UP ONLY)
107
1-910-045-04
CONN ASSEMBLY, 14P MM CRIMP 650
(KLV-32M400A ONLY)
107
1-910-044-83
CONN ASSEMBLY, 14P MM CRIMP 650
(KLV-37M400A SN 4,000,001 TO 4,099,999 ONLY)
107
1-910-049-41
CONN ASSEMBLY, 14P MM CRIMP 650
(KLV-37M400A SN 4,100,001 & UP ONLY)
55
