AC WIRING ORIGINATION

Lexan cover protects AC Wiring
Compartment Board

AC WIRING COMPARTMENT BOARD

50

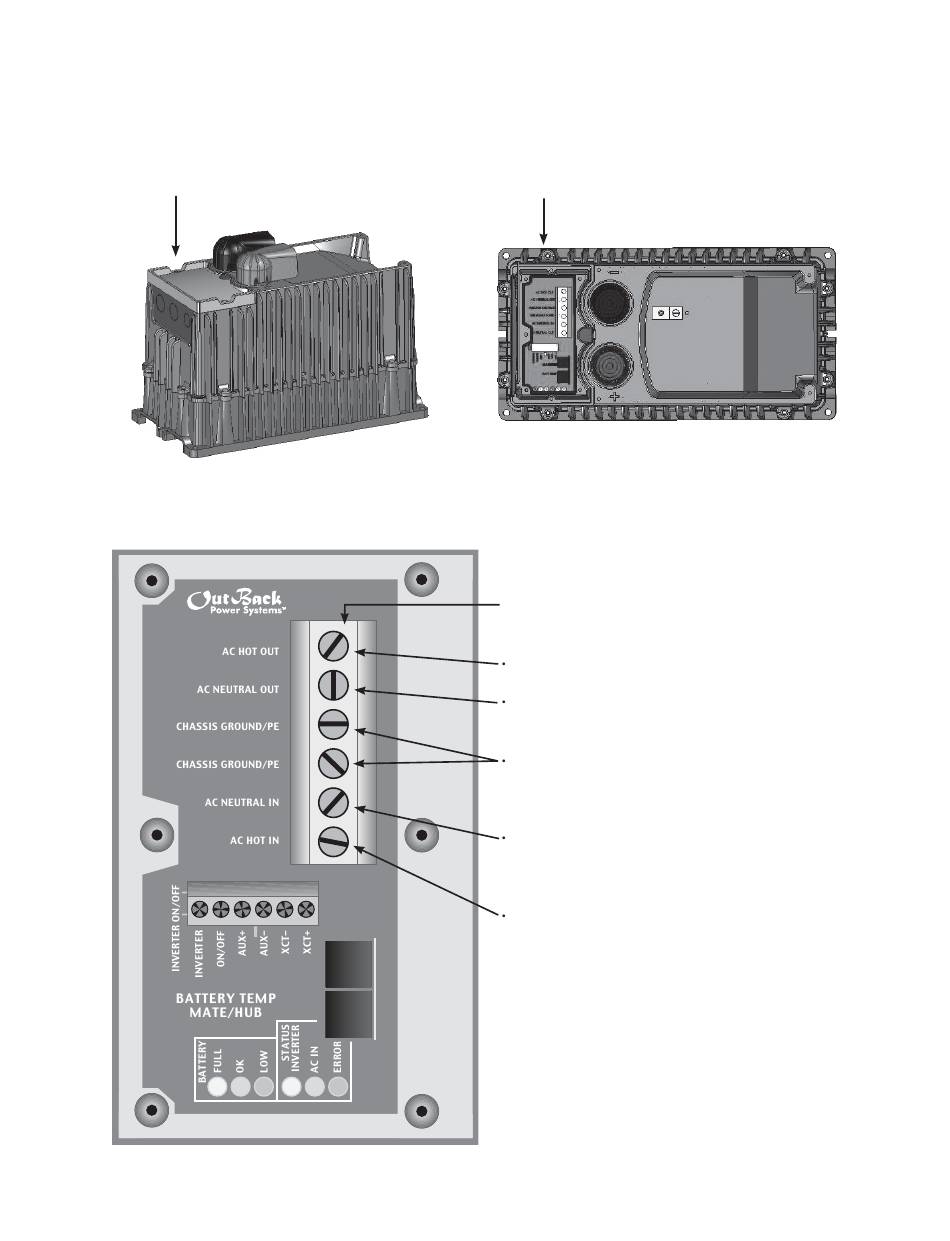

AC Wiring Board
AC Terminal Block--secures AC
connections to the FX using set screws
AC HOT OUT supplies power to the loads.
AC NEUTRAL OUT acts as neutral leg for loads
supplied by the FX.
CHASSIS GROUND connections are common
and act as grounds for both the incoming and
outgoing AC circuits.
AC NEUTRAL IN acts as the neutral leg for AC
power supplied by either the grid or a generator
to the FX.
AC HOT IN connects incoming AC from the grid
or a generator to the FX. This AC is used to run
loads and recharge batteries.
NOTE: 6 AWG ( (4.11 mm) is the largest wire
size the AC Wiring Compartment Board can
accommodate.
