Ingersoll Rand 2130XP Serie Manual Del Usuario

The 2130XP series of Impact Wrenches are designed for use in general automotive repair, tire service and heavy
duty fleet applications.
• IMPORTANT SAFETY INFORMATION ENCLOSED - SAVE THESE INSTRUCTIONS.
• Read and understand this manual before operating this product.
• It is your responsibility to make this safety informationavailable to others that will operate
this product.
• Failure to observe the following warnings could result in injury.
• Always install, operate, inspect and maintain
this product in accordance with all applicable
standards and regulations (local, state,
country, federal, etc.).
• Always use clean, dry air at 90 psig (6.2 bar/620
kPa) maximum air pressure at the inlet. Higher
pressure may result in hazardous situations
including excessive speed, rupture, or incorrect
output torque or force.
• Be sure all hoses and fittings are the correct
size and are tightly secured. See Dwg. TPD905-
2 for a typical piping arrangement.
• Ensure an accessible emergency shut off valve
has been installed in the air supply line, and
make others aware of its location.
• Do not use damaged, frayed or deteriorated air
hoses and fittings.
• Always wear eye protection when operating or
performing maintenance on this tool.
• Always wear hearing protection when operating
this tool.
• Always use Personal Protective Equipment
appropriate to the tool used and material
worked. This may include dust mask or other
breathing apparatus, safety glasses, ear plugs,
gloves, apron, safety shoes, hard hat and other
equipment.
• When wearing gloves always be sure that the
gloves will not prevent the throttle mechanism
from being released. This tool is not designed
for working in explosive environments,
including those caused by fumes and dust, or
near flammable materials.
• This tool is not insulated against electric shock.
• Prevent exposure and breathing of harmful
dust and particles created by power tool use.
Refer All Communications to the Nearest
Ingersoll-Rand Office or Distributor.
© Ingersoll-Rand Company 2004
Printed in China
Instructions for

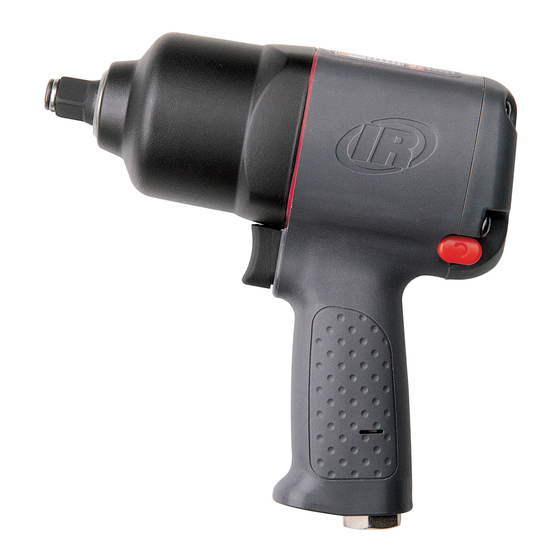

Model 2130XP Super Duty
Automotive Impact Wrench
PLACING TOOL IN SERVICE
USING THE TOOL
1
• Keep clear of whipping air hoses. Shut off the
compressed air before approaching a whipping
hose.
• Always turn off the air supply, bleed the air
pressure and disconnect the air supply hose
before installing, removing or adjusting any
accessory on this tool, or before performing any
maintenance on this tool or any accessory.
• Do not lubricate tools with flammable or
volatile liquids such as kerosene, diesel or jet
fuel. Use only recommended lubricants.
• Use only proper cleaning solvents to clean
parts. Use only cleaning solvents which meet
current safety and health standards. Use
cleaning solvents in a well ventilated area.
• Keep work area clean, uncluttered, ventilated
and illuminated.
• Do not remove any labels. Replace any dam
aged label.
Some dust created by power sanding,
sawing, grinding, drilling and other
construction activities contains chemicals
known to cause cancer, birth defects or
other reproductive harm. Some examples of
these chemicals are:
- lead from lead based paints,
- crystalline silica from bricks and cement
and other masonry products, and
- arsenic and chromium from chemically
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area,
and work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
Form P7681-1
EN
Edition 2
February, 2004
CCN 04580627
Form P7681 Edition 2
