INSTALLATION MANUAL
ECM5000 - ECM5000M - ECS5000 - ECS5000M - ECS8000 - ECS8000M

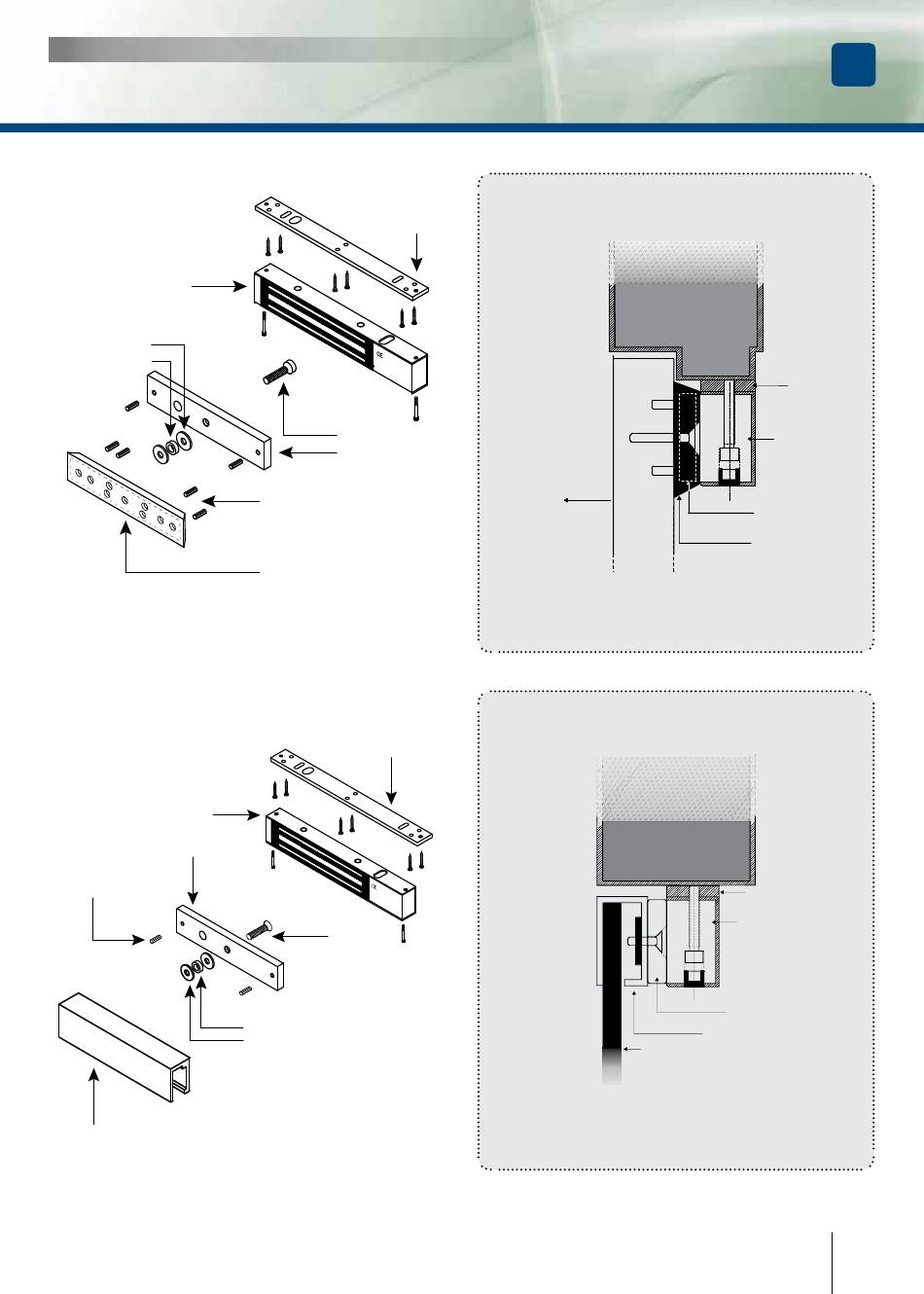

Surface mount or Mortice Electromagnetic locks
Installation with
an armature base
Electromagnetic lock
Steel washer
Rubber washer
Installation with base
for glass door
Electromagnetic lock
Armature plate
Roll pin
Armature base for glass door UBKU
Fixing plate
Armature screw
Armature plate
Roll pin
Armature base
AMA3 - AMA5
Fixing plate
Armature
screw
Steel washer
Rubber washer
OUTDOOR
Door frame
EXT.
opening
Door
Outward opening door
(push door).
OUTDOOR
Door frame
Door
Inward opening door (Pull door)
(installed with UBKU brackets)
EN
INDOOR
Fixing plate
Electromagnetic
lock
Armature plate
Armature base
AMA3 or AMA5
INDOOR
Fixing plate
Electromagnetic lock
Armature plate
Universal base for glass
door UBKU
