INSTALLATION INSTRUCTIONS

• STEP #2
o Check for cutout alignment by placing
Lavatory (A) in desired mounting position.
• STEP #3a (Drop-In)
o Apply sealant around the underside of rim near the edge,
as shown.
o NOTE: DECOLAV DOES NOT RECOMMEND THE USE OF A SILICONE SEALANT
AS IT WILL ADVERSELY AFFECT THE FROSTED FINISH!
o Carefully lower lavatory in place. Align and press fi rmly
to set.
o Wipe off excess sealant.
o NOTE: ALLOW SEALANT TO SET BEFORE PROCEEDING!
o Proceed to Step #4.
• STEP #3b (Undermount)
o Refer to Mounting Clips Detail (Figure 2). [Installation for solid surface countertops with a minimum
thickness of 1" (25 mm). Installer must supply anchors for thinner countertops.]
o For solid surface, drill anchors hole 3/
provided) to closed end of Threaded Knurl (C). Insert threaded knurl (threaded open end exposed).
o Apply sealant around the topside of rim near the edge, as shown.
o NOTE: DECOLAV DOES NOT RECOMMEND THE USE OF A SILICONE SEALANT AS IT WILL ADVERSELY AFFECT THE FROSTED FINISH!
o Carefully raise lavatory in place. Align and press fi rmly to set.
o Wipe off excess sealant.
o Attach Undermount Clips (B) to hold lavatory in place.
o NOTE: FOR WOOD COUNTERTOPS USE WOOD SCREWS AND ANCHORS, WOOD SCREWS NOT PROVIDED.
o NOTE: ALLOW SEALANT TO SET BEFORE PROCEEDING
Customer Service: 561-274-2110 Customer Service: 561-274-2110
www.decolav.com www.decolav.com
MODEL NUMBER: 1000TU
" diameter x ½" deep. Apply small amount of epoxy (not
8
Countertop
Apply
Sealant
Here
Lavatory
IF DROP-IN
IF UNDERMOUNT

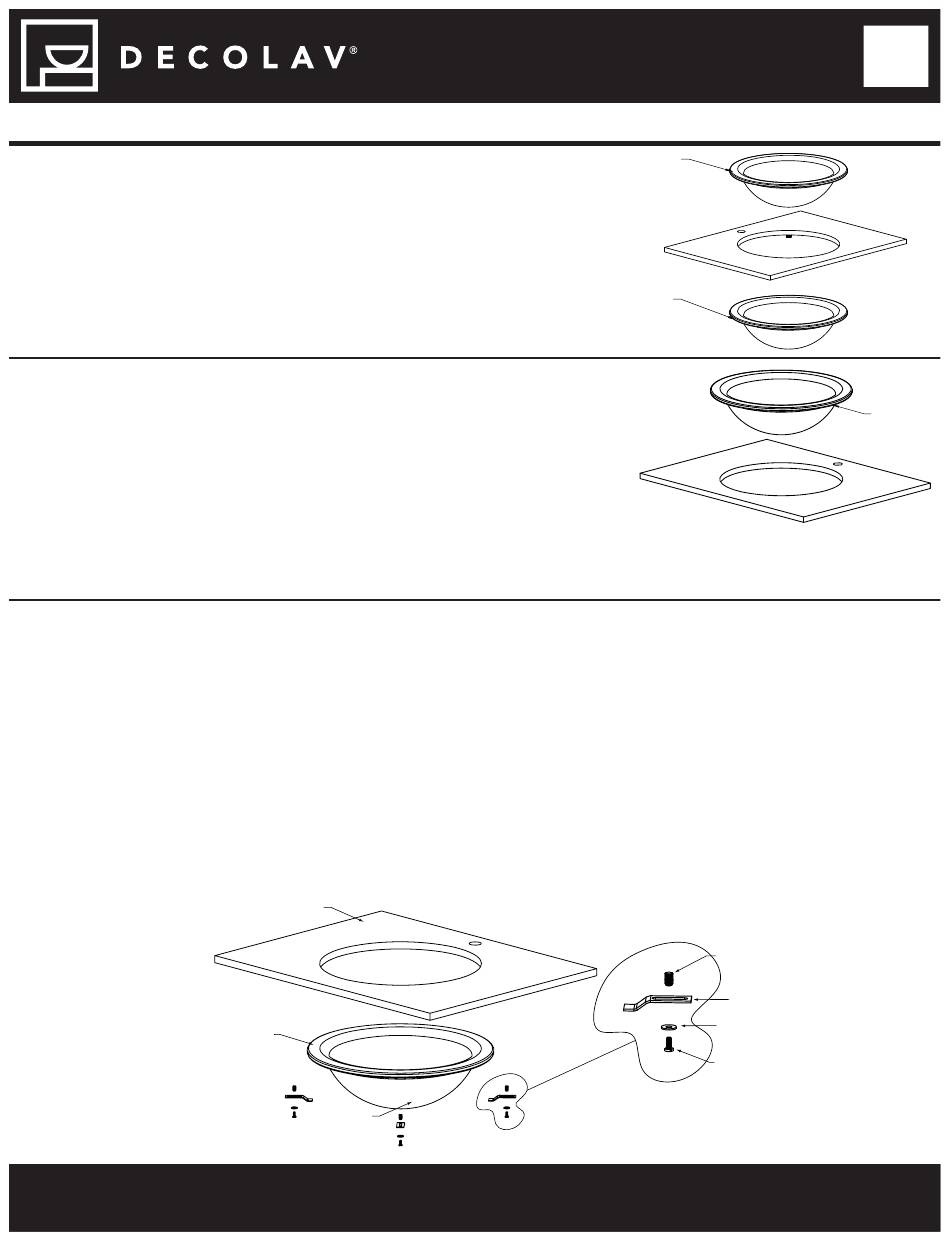

Mounting Clip Detail
Figure 2
