Operation

Mounting the Ace Follow Focus

To mount the Ace Follow Focus onto camera rods (see Fig. 5):
Ensure that the head platform is level and apply both the horizontal and vertical brakes
[A].
If required, rotate the bridge clamp clockwise to loosen the lower support rod bridge [B].
Align the lower support rod bridge mounting holes with the support rods and slide the
bridge onto the rods [C] until the friction wheel or drive gear is aligned with the camera
lens gear [D].
NOTE: The maximum allowable height between the centre of the friction wheel/drive
gear and the centre of the camera lens is 2.9 cm.
Adjust the upper slide bridge until the friction wheel or drive gear engages with the
camera lens gear, then turn the bridge clamp counter-clockwise to secure [D].

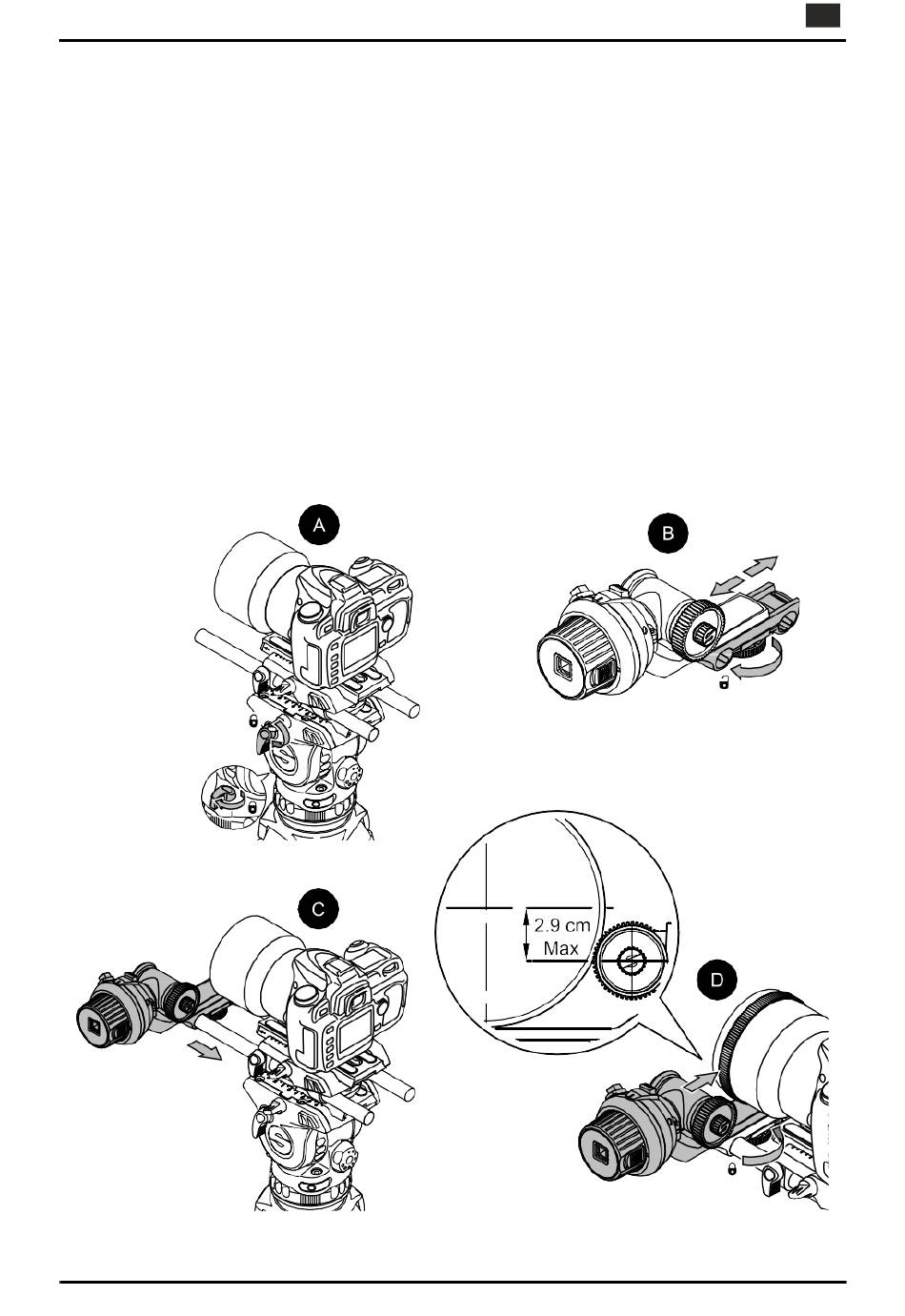

Fig. 5 Mounting the Ace Follow Focus
