CONNECTING THE BATTERY CHARGER TO THE PRG851
The procedure to be followed to connect the batteries to the battery charger is as follows:
•
Remove the fuse "F2" from the programmer circuit board.
•
Connect the batteries to the battery charger (The battery charger must not be powered up!) and close
the jumper "J1" then connect the battery as follows:
- Battery negative connects to binding post "9" - Battery positive connects to binding post "10"
If LED "L1" lights up, the connection is correct; if LED "L1" does not light up, invert the connection to
the batteries; open jumper "J1".
•

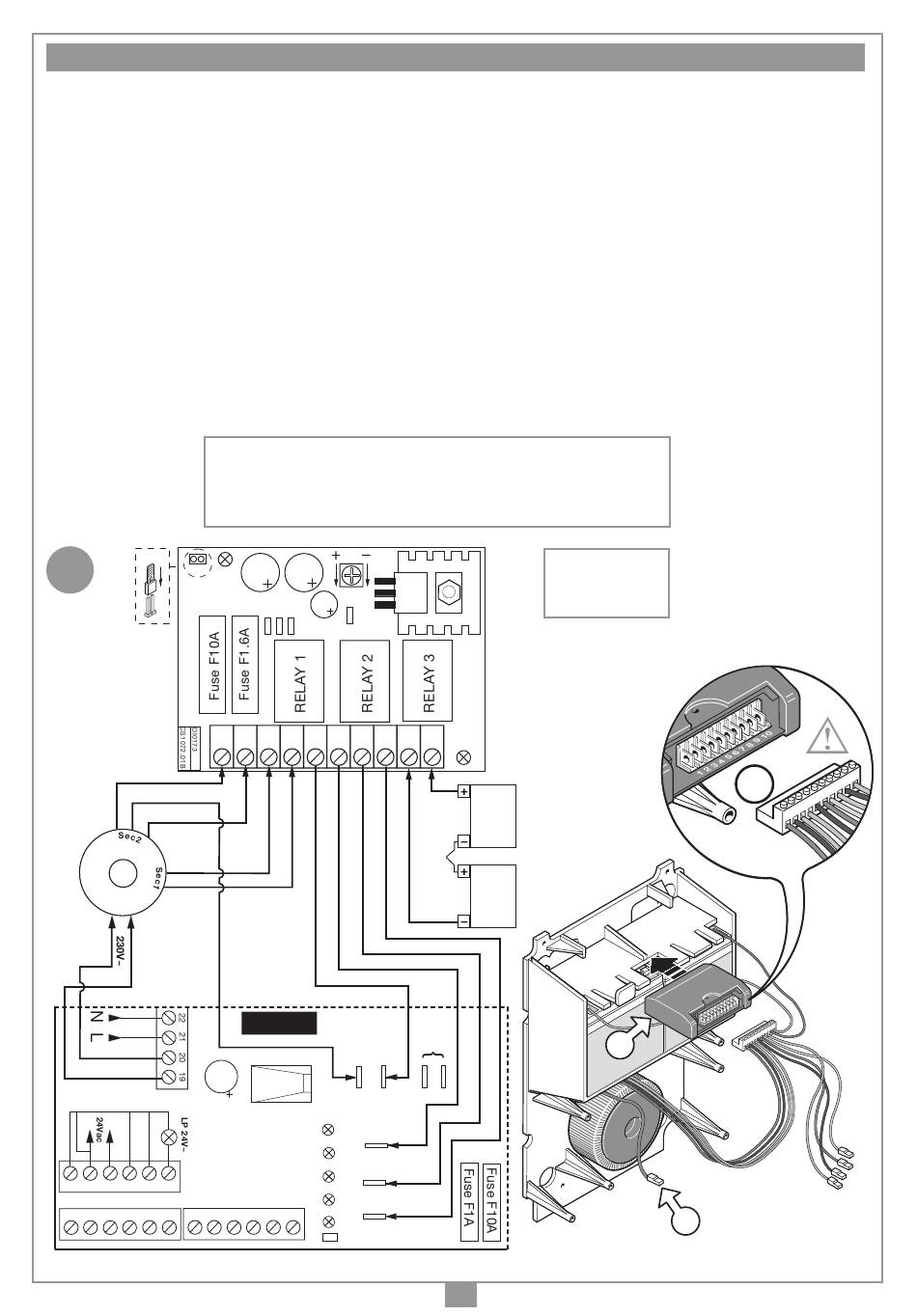

Connect the wires to the battery charger terminal board as follows (see fig. 6 det. M):
1
Binding post for the (red) "secondary 2" wire coming from the transformer.
2
Binding post for the (pink) "secondary 2" wire coming from the transformer.
3,4 Binding posts for the (0-24Vac: grey/grey) "secondary 1" wires.
5
Output to be connected to the faston marked "V2"
6
Output to be connected to the faston marked "V0"
7
Output to be connected to the faston marked "V3"
8
Output to be connected to the faston marked "V4"
•
Close the battery charger container and slide it into the battery holder and circuit board unit as shown
in figure 6. det. "L".
•
Insert the terminal block into its seat carefully following the direction indicated in detail "M"
•
Replace the fuse "F2".
