removal & reinstallation of cartridge rack
Remove door
Remove door using quick release tab at the back of hinges (circled below)
Salamander 4 Bay Cabinet with XL Display Mount
ADJUSTMENT TIPS

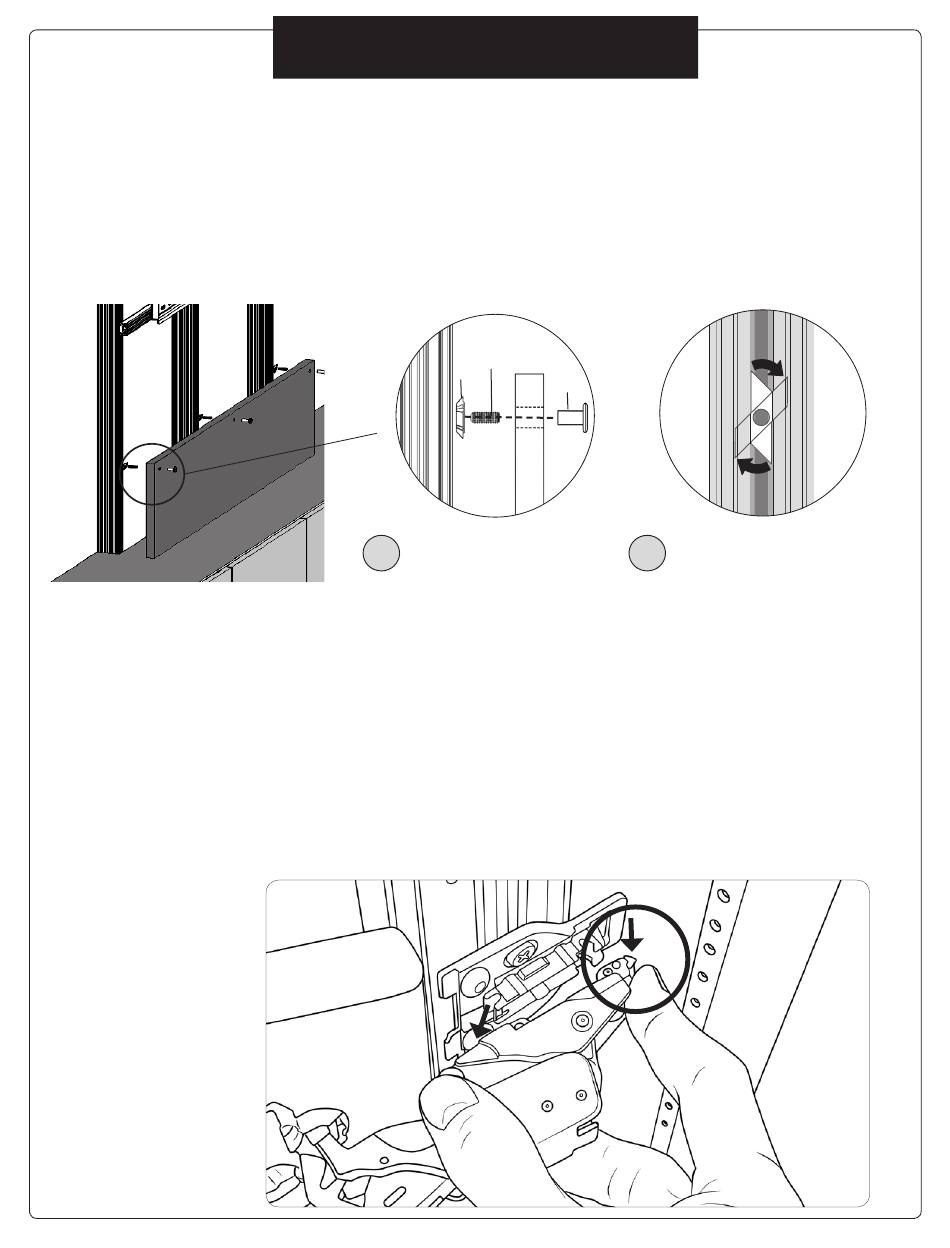

Modesty Panel

Removing and Re-Installing
NOTE: Be sure bottom of modesty panel is flush to cabinets top.
A
C
N
E
Loosely assemble Set
Screw (C), JCN (E) and
Drop-In Nut (N) through
each hole in the panel.
8 of 28
Insert Drop-In Nut (N) into
B
the slots of the vertical
mounting post and using
the provided Hex Key.
501-020 [9.17]
