Cod. 3130-3136-3138

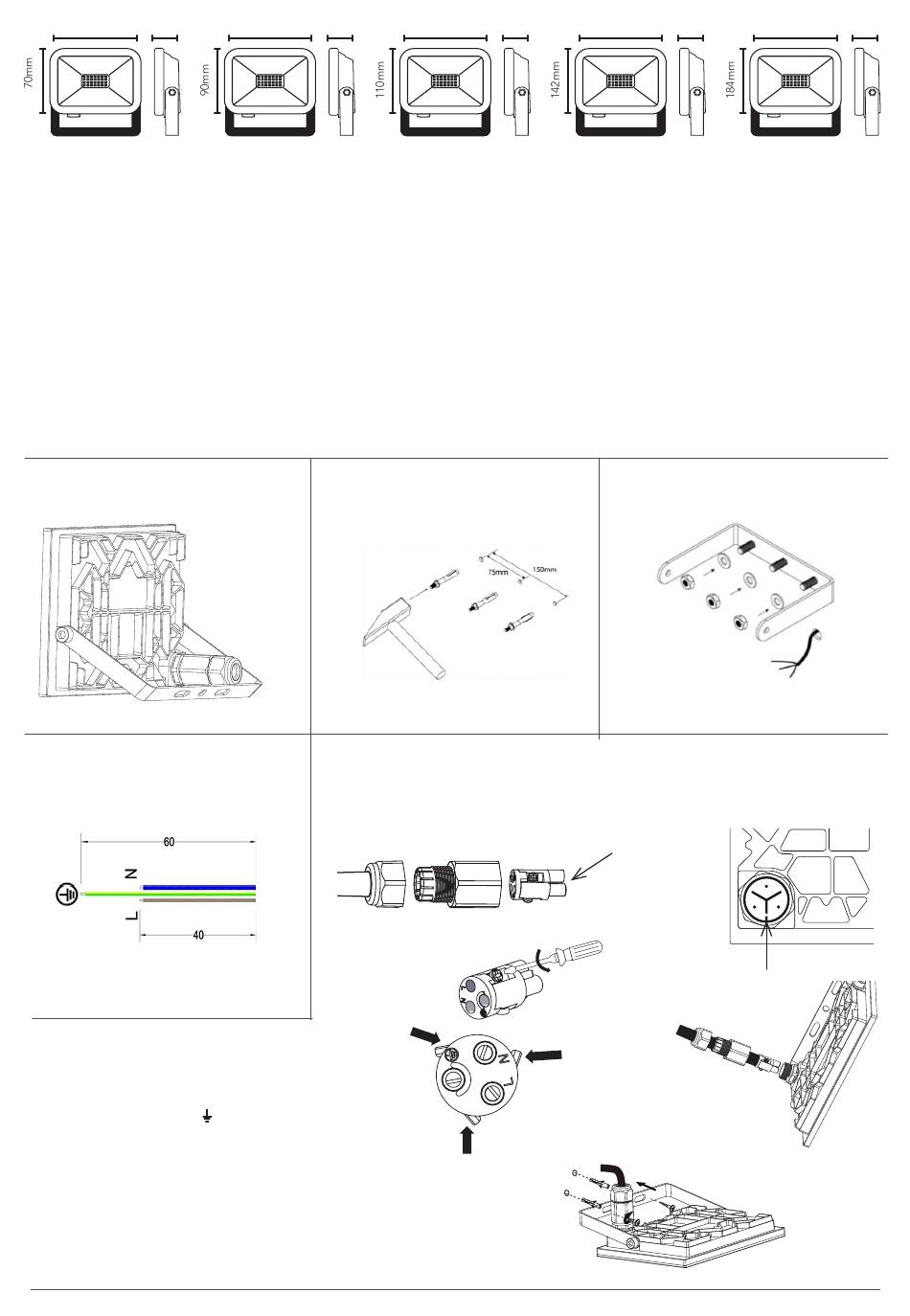

INSTRUCTIONS:
• Before operating on the system, remove voltage via the main switch
• Before making holes, make sure they do not damage the pipes, cables or other utilities of the building.
• The elements of this product do not require maintenance. If parts are damaged, disconnect from the
mains and stop use.
• Note: The retaining screws are not provided. Please use the appropriate retaining screws.
Remove the bracket from the light
Use a rubber cable
(H05RN-F 3x1mm min 3x1mm²)
2
1Insert the cable into the cable gland
2 Loosen the screws of the wiring system and
wire the cables (the yellow-green cable must be
inserted in the terminal )
3 Secure the quick wiring system to the connectors
on the spotlight. Be sure to align the slot with the
fin in the connector housing (fig.1)
4 Place the cable gland on the fixing system and
tighten on the spotlight
The PP3138-PP3139 model is fitted with cable and does not require wiring.
135mm 61mm
Cod. 3131-3137-3139
Mark the wall with the appropriate
fixing positions.
1
165mm 61mm
Cod. 3132
Wiring device slot
2
4
210mm 61mm
Cod. 3133
Fit the bracket on the wall
Fig. 1
rear of the
spotlight
3
270mm 61mm
Cod. 3134
Fin
