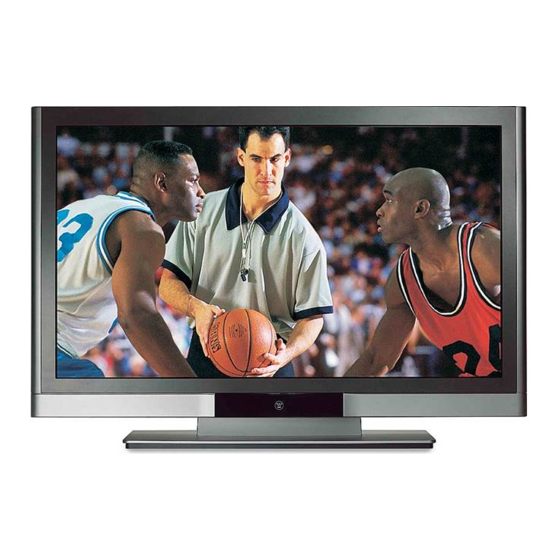

Westinghouse LVM-42w2 Guía De Conexión Rápida

Power Indicator
DID YOU KNOW THAT
YOUR 1080p MONITOR ALSO HAS:
• Integrated 10 W Stereo Speakers & Subwoofer
• Progressive Scan
• Full HD 1080p
CHECK OUT
www.westinghousedigital.com for our:
• Versatile Décor Wall Mounting options
• Décor Frames for LCD TVs with Acoustical Mattes
Quick Connect Guide
CONGRATULATIONS
3 easy steps. For complete installation, usage instructions, and safety precautions please refer to the User's Manual.
1
POWER
Use the enclosed AC power cable to
connect the AC power to the power
input on the 1080p Monitor.
MAXIMIZE YOUR 1080 MONITOR EXPERIENCE
p
variety of electronic devices including a digital cable or satellite set top box, a game console, a VCR, or a computer.
The chart shows our recommendations for the best quality picture for these commonly used devices.
VIDEO INPUTS
AV S-Video YPbPr
Digital Cable/
Satellite Receiver Good
DVD Player Good
Game Console Good Better Better
VCR Good Best
Note: The audio input is shared between AV and S-Video
TYPICAL SETUP
• Progressive scan DVD players with HDMI or DVI
• Game console action using YPbPr
• Set top box using HDMI or DVI
© 2006 Westinghouse Digital Electronics, LLC. All rights reserved. Specifications subject to change without
¼, Westinghouse You can be sure... if it's Westinghouse
notice. and
Corporation and are used under license. MA-PS-0603-0603
Westinghouse Digital Electronics
Start Here
1080p MONITOR
LVM-42w2
LVM-47w1
Keypad
SAVIEZ-VOUS QUE
VOTRE MONITEUR 1080p EST AUSSI MUNIE:
• De haut-parleurs stéréo intégrés de 10 w
• Balayage en progressif
• Plein HD 1080p
CONSULTEZ
www.westinghousedigital.com pour nos:
• Options multiples de Montants Muraux Décoratifs
• Cadres de décorations pour les TV LCD avec Caches Acoustiques
on purchasing a 1080p Monitor! This Quick Connect Guide will help you get started in
2
HD VIDEO SOURCE
Connect a HD digital cable, HD
satellite receiver or ATSC tuner to
the corresponding video input on
the connector panel.
You can attach your 1080p Monitor to a
DVI-HDCP
HDMI
(RGB)
Best Monitor Good
Best
Best
• Remember to adjust the resolution of your
computer or HD Media PC to 1920 x 1080 for
best performance.
Use the input button on the remote control or keypad
to navigate between the S-Video, AV, YPbPr, HDMI,
DVI-HDCP or VGA inputs.
are trademarks of Westinghouse Electric
Comienzo Aquí
Démarre Entière
DVI/HDMI/Video/
S-Video Inputs
3
COMPUTER
Connect a computer to a VGA or
DVI input and the corresponding
audio inputs.
PC INPUTS
VGA DVI-HDCP
Best
Customer Service: 866.287.5555 • www.westinghousedigital.com
¿SABÍA USTED QUE SU TELEVISOR CON
MONITOR 1080p TAMBIÉN TIENE:
• Bocinas de estéreo de 10 watts
• Rastreo progresivo
• HD lleno 1080p
CONSULTE
www.westinghousedigital.com para ver nuestras:
• Opciones de montaje en pared con versátiles decorados
• Marcos decorativos para televisores con pantalla de cristal
líquido con paneles acústicos
GO!
Press the power button on the keypad
to turn on the 1080p Monitor.
DVI 2
(up to 1080i)
DVI 2 Audio Input
HDMI
HDMI Audio
Input
YPbPr 2
Input
S Video
AV
AV & S Video
Audio Input
YPbPr 2
Audio Input
Audio Output
VGA/YPbPr/DVI Inputs
VGA Audio Input
VGA
DVI 1 Audio Input
DVI 1
(up tp 1080p)
YPbPr 1
Input
YPbPr 1
Audio Input
