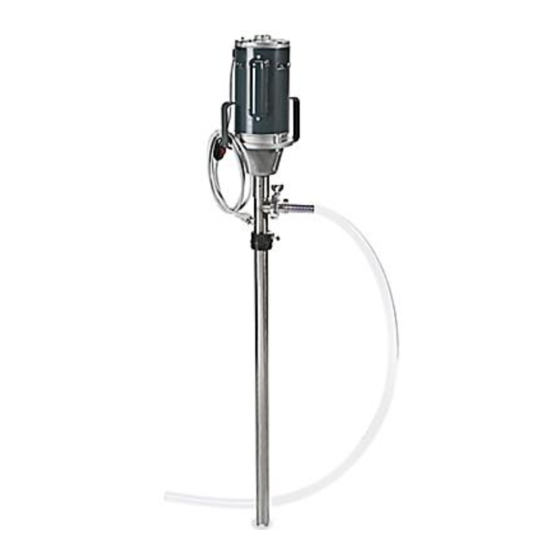

H-6501
HIGH-VISCOSITY
ELECTRIC DRUM PUMP
GENERAL SAFETY
This pump is designed to transfer clean, non-abrasive,
and nonflammable liquids that are compatible with
pump materials.
For a list of materials and compatible chemicals, see
uline.com.
Other factors such as viscosity, pressure, specific
gravity, temperature, concentration and chemical
combinations should also be considered when
determining compatibility. Always contact your
chemical supplier for compatibility recommendations.
Final selection should be based on actual field testing
under the conditions of intended use.
1.
Know the pump application, limitations and
potential hazards.
CAUTION! Do not use to pump flammable
or explosive fluids, such as gasoline, fuel
oil, kerosene, etc. Do not use in explosive
atmospheres. Pump should only be used with
liquids compatible with pump component
materials. Failure to follow this warning can
result in personal injury and/or property
damage.
2. Make certain that the power source conforms to the
requirements of the equipment.
3. Provide adequate protection and guarding around
moving parts.
4. Disconnect power before servicing.
PAGE 1 OF 9
1-800-295-5510
uline.com
SAFETY
5. Release all pressure within pump before servicing
any component.
6. Drain all liquids from pump before servicing.
7.
Secure the discharge line before starting the pump.
An unsecured discharge line will whip, possibly
causing personal injury and/or property damage.
8. Before each use, check hoses for weak or worn
condition, making certain that all connections are
secure.
9. Periodically inspect pump components. Perform
routine maintenance as required.
(See Maintenance section)
10. Provide a means of pressure relief for pumps where
discharge line can be shut off or obstructed.
11. Personal Safety –
a. Wear safety glasses at all times when working
with pump.
b. Wear a face shield and proper apparel when
pumping hazardous chemicals.
12. When wiring an electrically-driven pump, follow all
electrical and safety codes, as well as the most
recent United States National Electrical Code (NEC)
and the Occupational Safety and Health Act (OSHA).
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
CAUTION! Risk of electrical shock! Never
connect the green (or green and yellow) wire to
a live terminal!
0721 IH-6501
Publicidad
Tabla de contenido
Manuales relacionados para Uline H-6501
Resumen de contenidos para Uline H-6501
- Página 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. π H-6501 1-800-295-5510 uline.com HIGH-VISCOSITY ELECTRIC DRUM PUMP SAFETY GENERAL SAFETY 5. Release all pressure within pump before servicing any component. This pump is designed to transfer clean, non-abrasive, 6.
- Página 2 SAFETY CONTINUED GROUNDING To ensure a proper ground, the grounding means must be tested by a qualified electrician. To reduce the risk of electrical shock, the motor must Use only 3-wire extension cords that have 3-prong, be securely and adequately grounded. This can be grounding type plugs and 3-pole receptacles that accomplished by either: accept the equipment plug.
- Página 3 Clogged impeller or augers. Clean impeller or augers. Clogged discharge hose. Clean discharge hose. Pinched discharge hose. Replace discharge hose. Pumped liquid is too viscous. Use only for liquids with viscosity within range of pump. 1-800-295-5510 uline.com PAGE 3 OF 9 0721 IH-6501...
-
Página 4: Bomba Eléctrica Para Alta Viscosidad Para Tambos
π H-6501 800-295-5510 uline.mx BOMBA ELÉCTRICA PARA ALTA VISCOSIDAD PARA TAMBOS SEGURIDAD SEGURIDAD GENERAL 5. Libere toda presión en la bomba antes de darle mantenimiento a cualquier componente. Esta bomba está diseñada para transferir líquidos limpios 6. Drene todo el líquido de la bomba antes de darle no abrasivos y no inflamables que sean compatibles mantenimiento. -
Página 5: Continuación De Seguridad
CONTINUACIÓN DE SEGURIDAD CONEXIÓN A TIERRA Para asegurar una conexión adecuada a tierra, los medios de conexión a tierra deberán de ser probados Para reducir el riesgo de descarga eléctrica, el motor por un electricista calificado. deberá estar conectado a tierra de forma segura. Esto Utilice solamente extensiones de 3 alambres que se puede lograr de la siguiente manera: tengan una clavija de 3 picos a tierra y enchufes de 3... -
Página 6: Continuación De Instalación Y Operación
Obstrucción de la manguera de descarga. descarga. Reemplace la manguera de Manguera de descarga rota. descarga. El líquido es muy viscoso. Utilice solamente líquidos de viscosidad permitidos dentro del rango de la bomba. 800-295-5510 uline.mx PAGE 6 OF 9 0721 IH-6501... -
Página 7: Sécurité Générale
Fixez la conduite de refoulement avant d'actionner Reportez-vous à fr.uline.ca pour consulter la liste des la pompe. Une conduite de refoulement mal fixée matériaux et produits chimiques compatibles. peut fouetter l'air et entraîner de graves blessures D'autres facteurs comme la viscosité, la pression, la... -
Página 8: Mise À La Terre
SÉCURITÉ SUITE MISE À LA TERRE Pour assurer un bon raccordement de mise à la terre, les moyens de mise à la terre doivent être vérifiés par un Tour réduire le risque de choc électrique, le moteur doit électricien qualifié. être correctement mis à... - Página 9 Nettoyez le tuyau de refoulement. engorgé. Remplacez le tuyau de refoulement. Le tuyau de refoulement est Utilisez uniquement des liquides dont coincé. la viscosité est compatible avec la Le liquide pompé est trop visqueux. pompe. 1-800-295-5510 uline.ca PAGE 9 OF 9 0721 IH-6501...
