Installation
C
E
F
24 English
DV22K6800-03650A-00_EN (US)_151211.indd 24
D

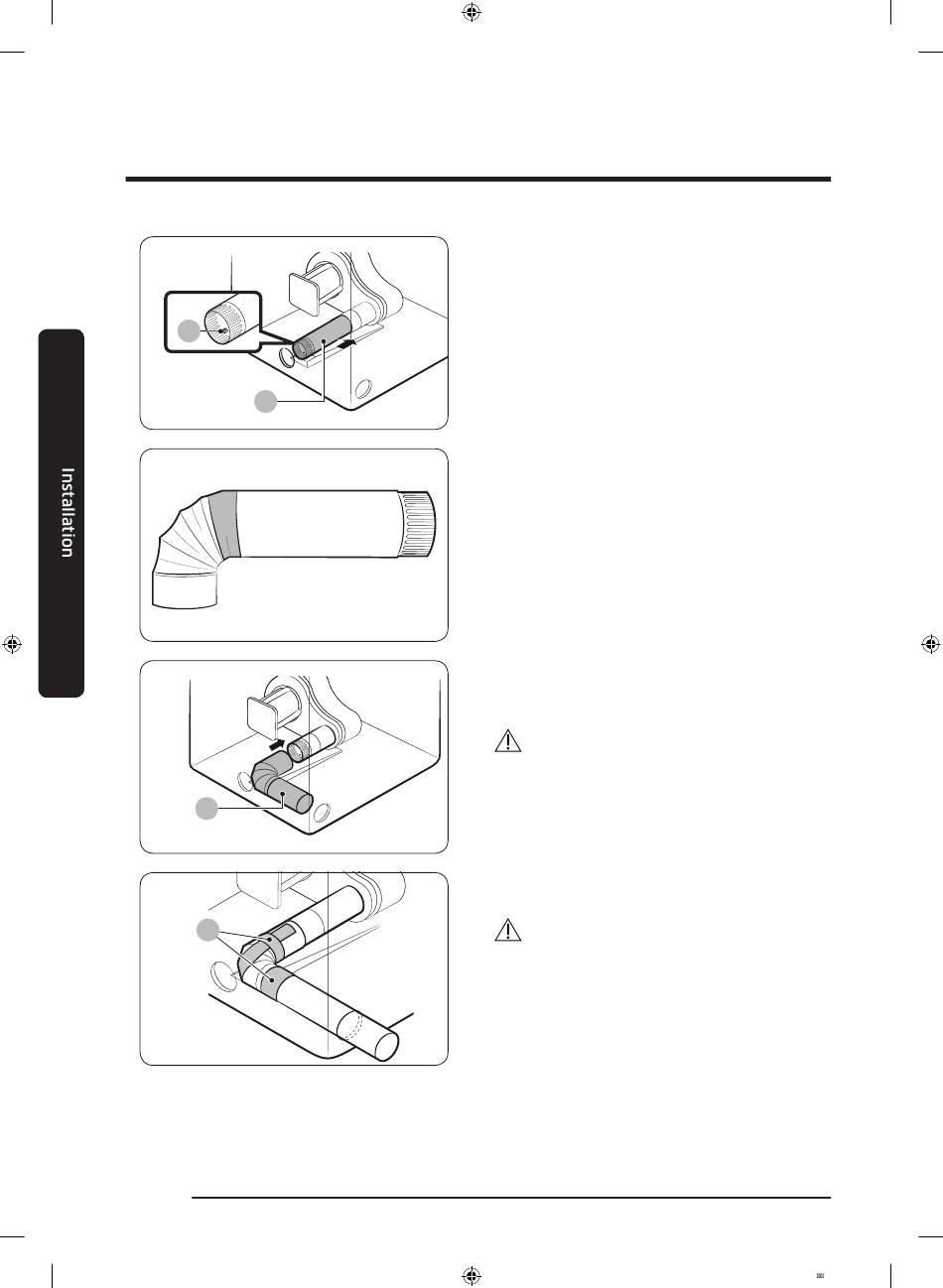

4. Reconnect the cut portion of the duct
(D), and then fasten it to the ramp on
the appliance base with the screw (C)
which you set aside in Step 2.
Connect a duct to an elbow, and then
5.
tape the duct and the elbow together
with duct tape.
6. Insert the duct with elbow (E) through
the rear opening, and then connect it
to the internal duct.
CAUTION
Wire components in the dryer may
interfere slightly with the duct. Do not pull
or damage the electrical wires inside the
dryer when inserting the duct.
7. Apply duct tape (F) on all joints as
shown.
CAUTION
All joints must be secured with duct tape,
otherwise, they may separate and cause a
safety hazard.
