LOW-VOLTAGE WIRING

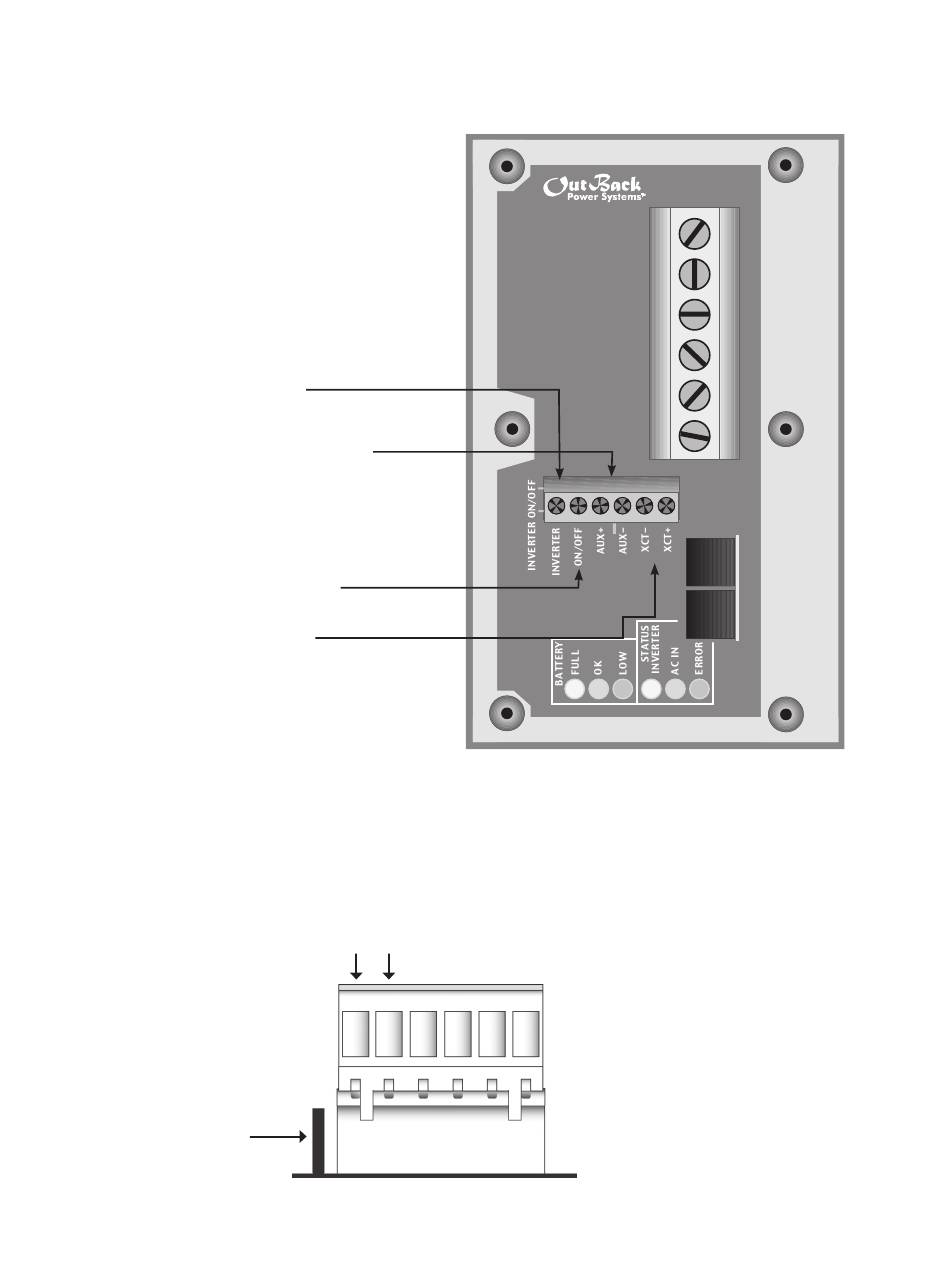

This six-position terminal block can be
unplugged to make wiring easier and to
simplify the removal and reinstallation of an FX.
It must be securely and completely plugged
in for proper FX functioning. Otherwise,
operational errors can occur.
Control Wiring Terminal Block
12 VDC at 0.7 amps (8.4 watts) is available
at the AUX+/AUX- terminals
A switch can be wired to the INVERTER
and ON/OFF terminals to manually
control the FX
XCT+/XCT- are not operational

INVERTER and ON/OFF

• Replacing the pre-installed jumper (connecting the ON/OFF terminals) with a switch allows manual control of
the FX.
• When a jumper is installed in either location, the inverter will be ON.
• When a switch is installed, the inverter is ON when the switch is closed and OFF when the switch is open.
• When a system is ordered with a MATE, the MATE handles all FX ON/OFF functions.
Jumper
INVERTER ON/OFF
����������
��������������
�����������������
�����������������
�������������
���������
������������
��������
Control Wiring Terminal Block,
side view
