Version 1.0
Published February 2018
Copyright©2018 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the owners' benefit, without intent to
infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or fitness for a particular
purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate"
ASRock Website: http://www.asrock.com
Publicidad
Tabla de contenido
Manuales relacionados para ASROCK H310M-HDV
Resumen de contenidos para ASROCK H310M-HDV
- Página 1 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
- Página 2 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI™...

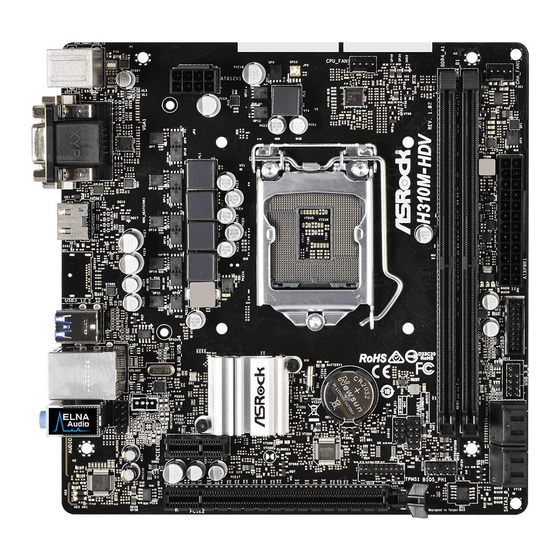

- Página 3 H310M-HDV Motherboard Layout Front USB 3.0 PCI Express 3.0 CPU_FAN1 CHA_FAN1/WP ATX12V1 USB 3.1 Gen1 T: USB1 B: USB2 RoHS USB 2.0 Intel Top: T: USB3 RJ-45 B: USB4 H310 CMOS Battery HD_AUDIO1 PCIE1 CLRCMOS1 TPMS1 AUDIO CODEC BIOS PCIE2...
-
Página 4: Tabla De Contenido
No. Description ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) Chassis/Water Pump Fan (CHA_FAN1/WP) ATX Power Connector (ATXPWR1) USB 3.1 Gen1 Header (USB3_3_4) USB 2.0 Header (USB_5_6) SATA3 Connector (SATA3_2) SATA3 Connector (SATA3_3) SATA3 Connector (SATA3_0) SATA3 Connector (SATA3_1) System Panel Header (PANEL1) -
Página 5: No. Description
H310M-HDV I/O Panel No. Description No. Description USB 2.0 Ports (USB12) USB 2.0 Ports (USB_34) D-Sub Port USB 3.1 Gen1 Ports (USB3_12) LAN RJ-45 Port* HDMI Port Line In (Light Blue)** DVI-D Port Front Speaker (Lime)** PS/2 Keyboard/Mouse Port Microphone (Pink)** * There are two LEDs on each LAN port. - Página 6 ** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi- channel audio feature through the audio driver. Please set Speaker Configuration to “7.1 Speaker”in the Realtek HD Audio Manager. Function of the Audio Ports in 7.1-channel Configuration: Port Function...
- Página 7 If you require technical support related to this mother- board, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.
- Página 8 1.2 Specifications Platform • Micro ATX Form Factor • Solid Capacitor design • Supports 8 Generation Intel® Core Processors (Socket 1151) • 5 Power Phase design • Supports Intel® Turbo Boost 2.0 Technology Chipset • Intel® H310 Memory • Dual Channel DDR4 Memory Technology • 2 x DDR4 DIMM Slots • Supports DDR4 2666/2400/2133 non-ECC, un-buffered memory...
- Página 9 H310M-HDV • Three graphics output options: D-Sub, DVI-D and HDMI * Supports up to 2 displays simultaneously • Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz • Supports D-Sub with max.
-
Página 10: Cpu Fan Connector (Cpu_Fan1)
Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug Connector • 1 x TPM Header • 1 x Chassis Intrusion and Speaker Header • 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. - Página 11 H310M-HDV * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system.
- Página 12 Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.
- Página 13 H310M-HDV 2.1 Installing the CPU 1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
- Página 15 H310M-HDV Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.
- Página 16 2.2 Installing the CPU Fan and Heatsink...
- Página 17 H310M-HDV 2.3 Installing Memory Modules (DIMM) This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
- Página 19 H310M-HDV 2.4 Expansion Slots (PCI Express Slots) There are 2 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
- Página 20 2.5 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header Connect the power (9-pin PANEL1) button, reset button and...
- Página 21 H310M-HDV Chassis Intrusion and Please connect the DUMMY SPEAKER Speaker Header chassis intrusion and the DUMMY DUMMY (7-pin SPK_CI1) chassis speaker to this SIGNAL (see p.1, No. 14) header. Serial ATA3 Connectors These four SATA3 (SATA3_0: connectors support SATA see p.1, No. 10)
- Página 22 Front Panel Audio Header This header is for OUT_RET OUT2_L (9-pin HD_AUDIO1) J_SENSE connecting audio devices MIC_RED OUT2_R (see p.1, No. 16) to the front audio panel. PRESENCE# MIC2_R MIC2_L 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
-
Página 23: Clear Cmos Pad (Clrmos1)
H310M-HDV ATX 12V Power This motherboard Connector provides an 8-pin ATX (8-pin ATX12V1) 12V power connector. To (see p.1, No. 1) use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5. TPM Header This connector supports Trusted... - Página 24 Technische Daten Plattform • Micro-ATX-Formfaktor • Feststoffkondensator-Design • Unterstützt Intel® Core -Prozessoren (Sockel 1151) der 8 Prozessor Generation • 5-Leistungsphasendesign • Unterstützt Intel® Turbo Boost 2.0-Technologie Chipsatz • Intel® H310 Speicher • Dualkanal-DDR4-Speichertechnologie • 2 x DDR4-DIMM-Steckplätze • Unterstützt ungepufferten DDR4-2666/2400/2133-Non-ECC- Speicher • Systemspeicher, max.
- Página 25 H310M-HDV • Drei Grafikkarten-Ausgangsoptionen: D-Sub, DVI-D und HDMI * Unterstützt bis zu 2 Displays gleichzeitig • Unterstützt HDMI mit maximaler Auflösung von 4K x 2K (4096 x 2160) bei 30Hz • Unterstützt DVI-D mit maximaler Auflösung von 1920 x 1200 bei 60 Hz • Unterstützt D-Sub mit maximaler Auflösung von 1920 x 1200 bei...
- Página 26 Speicher • 4 x SATA-III-6,0-Gb/s-Anschlüsse, unterstützt NCQ, AHCI und Hot-Plugging Anschluss • 1 x TPM-Stiftleiste • 1 x Gehäuseeingriff- und Lautsprecher-Stiftleiste • 1 x CPU-Lüfteranschluss (4-polig) * Der CPU-Lüfteranschluss unterstützt einen CPU-Lüfter mit einer maximalen Lüfterleistung von 1 A (12 W). • 1 x Anschluss Gehäuse/Wasserpumpenlüfter (4-polig) (intelligente Lüftergeschwindigkeitssteuerung) * Der Gehäuse-/Wasserpumpenlüfter unterstützt einenWasserkühler-...
- Página 27 H310M-HDV Spécifications Plateforme • Facteur de forme Micro ATX • Conception à condensateurs solides ème • Prend en charge les processeurs 8 génération Intel® Core Processeur (socket 1151) • Alimentation à 5 phases • Prend en charge la technologie Intel® Turbo Boost 2.0 Chipset • Intel®...
- Página 28 • Trois options de sortie graphique : D-Sub, DVI-D et HDMI * Prend en charge jusqu'à 2 écrans simultanément • Prend en charge la technologie HDMI avec résolution maximale de 4K × 2K (4096x2160) @ 30Hz • Prend en charge le mode DVI-D avec une résolution maximale de 1920x1200 @ 60Hz • Prend en charge le mode D-Sub avec une résolution maximale de 1920x1200 @ 60Hz...
- Página 29 H310M-HDV Stockage • 4 x connecteurs SATA3 6,0 Gb/s, compatibles avec les fonctions NCQ, AHCI et « Hot Plug » Connecteur • 1 x embase TPM • 1 x prise DEL d’alimentation et emplacement sur châssis • 1 x connecteur pour ventilateur de CPU (4 broches) * Le connecteur pour ventilateur de CPU prend en charge un ventilateur de CPU d'une puissance maximale de 1 A (12 W).
- Página 30 Specifiche Piattaforma • Fattore di forma Micro ATX • Design condensatore solido • Supporta processori 8 Generation Intel® Core (Socket 1151) • Potenza a 5 fasi • Supporta la tecnologia Intel® Turbo Boost 2.0 • Intel® H310 Chipset • Tecnologia memoria DDR4 Dual Channel Memoria • 2 x alloggi DIMM DDR4 • Supporto di memoria DDR4 2666/2400/2133 non-ECC, un-...
- Página 31 H310M-HDV • Supporta HDMI con risoluzione massima fino a 4K x 2K (4096 x 2160) a 30Hz • Supporta DVI-D con una risoluzione max. fino a 1920 x 1200 a 60 Hz • Supporta D-Sub con una risoluzione max. fino a 1920 x 1200 a 60 Hz • Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc),...
- Página 32 Archiviazione • 4 x connettori SATA3 6,0 Gb/s supportano NCQ, AHCI e Hot Plug Connettore • 1 x connettore TPM • 1 x collegamento altoparlante e intrusione telaio • 1 x connettore ventola CPU (4-pin) * Il connettore ventola CPU supporta ventole CPU con potenza massima di 1 A (12 W).
- Página 33 H310M-HDV Especificaciones Plataforma • Factor de forma Micro ATX • Diseño de condensador sólido • Compatible con la 8 generación de procesadores Intel® Core (Socket 1151) • Diseño de 5 fases de alimentación • Admite la tecnología Intel® Turbo Boost 2.0 Conjunto de • Intel®...
- Página 34 • Tres opciones de salida de gráficos: D-Sub, DVI-D y HDMI * Admite hasta 2 pantallas simultáneamente • Admite la tecnología HDMI con una resolución máxima de 4K x 2K (4096x2160) a 30Hz • Compatible con DVI-D con máxima resolución hasta 1920x1200 @ 60Hz • Admite D-Sub con una resolución máxima de 1920x1200 a 60 Hz...
- Página 35 H310M-HDV • 4 conectores SATA3 de 6,0 Gb/s, compatibles con las funciones Almacenami- ento NCQ, AHCI y Conexión en caliente Conector • 1 x Conector TPM • 1 x cabezal de intrusión de chasis y de altavoces • 1 x Conector para ventilador de la CPU (4 contactos) * El conector para ventilador de la CPU admite ventilador de la CPU con una potencia de ventilador de 1 A (12 W) máxima.
- Página 36 Спецификация Платформа • Форм-фактор Micro ATX • Схема на основе твердотельных конденсаторов го ЦП • Поддержка процессоров 8 поколения Intel® Core (Socket 1151) • Система питания 5 • Поддерживается технология Intel® Turbo Boost 2.0 Чипсет • Intel® H310 Память • Двухканальная память DDR4 • 2 гнезда...
- Página 37 H310M-HDV • На выходе DVI-D поддерживается максимальное разрешение до 1920x1200 при частоте обновления 60 Гц • Поддерживается D-Sub с максимальным разрешением до 1920x1200 при 60 Гц • Поддерживаются Auto Lip Sync, Deep Color (12 бит/цвет), xvYCC и HBR (High Bit Rate Audio) через порт HDMI (требуется...
- Página 38 Разъемы • 1 колодка ТРМ • 1 колодка с разъемами датчика вскрытия корпуса и динамика • 1 разъем для вентилятора охлаждения ЦП, 4-контактный * Разъем процессорного вентилятора поддерживает вентилятор с потребляемым током не более 1 А (12 Вт). • 1 разъем для корпусного вентилятора или водяной помпы (4-контактный) (смарт-регулятор...
- Página 39 H310M-HDV Especificações Plataforma • Micro ATX Form Factor • Design de condensador sólido ª • Suporta 8 Geraão de Processadores Intel® Core (Soquete 1151) • Design com 5 fases de alimentação • Suporta a tecnologia Intel® Turbo Boost 2.0 Chipset • Intel®...
- Página 40 • Suporta HDMI com resolução máx. até 4K x 2K (4096x2160) @ 30Hz • Suporta DVI-D com resolução máxima de até 1920x1200 @ 60Hz • Suporta D-Sub com resolução máxima de até 1920x1200 @ 60Hz • Suporta Auto sincronização labial, Deep Color (12bpc), xvYCC e HBR (High Bit Rate Audio) com porta HDMI (É...
- Página 41 H310M-HDV Conector • 1 x Plataforma TPM • 1 x Intrusão do Chassi e Cabeçote de Autofalante • 1 x Conector da ventoinha da CPU (4 pinos) * O Conector do Ventilador de CPU suporta o ventilador de CPU de alimentação máxima 1A do ventilador (12W).
- Página 42 Özellikler Platform • Micro ATX Form Faktörü • Yekpare Kapasitör tasarımı • 8. Nesil Intel® Core İşlemcileri (Yuva 1151) destekler İşlemci • 5 Güç Safhası tasarımı • Intel® Turbo Boost 2.0 Teknolojisini destekler • Intel® H310 Yonga kümesi • Çift Kanallı DDR4 Bellek Teknolojisi Bellek • 2 tane DDR4 DIMM Yuvası...
- Página 43 H310M-HDV • En fazla 1920x1200 @ 60 Hz çözünürlükle DVI-D destekler • 1920x1200 @ 60Hz'ye kadar çözünürlükle D-Sub işlevini destekler • HDMI Bağlantı Noktasıyla Otomatik Dudak Senkronizasyonu, Derin Renk (12bpc), xvYCC ve HBR (Yüksek Bit Oranlı Ses) özelliklerini destekler (Uyumlu bir HDMI monitörü...
- Página 44 • 1 tane TPM Bağlantısı Bağlayıcı • 1 tane Kasa Yetkisiz Erişim ve Hoparlör Bağlantısı • 1 tane İşlemci Fanı Bağlayıcı (4 pimli) * İşlemci Fanı Bağlayıcı, en fazla 1 A (12 W) fan gücünde işlemci fanı destekler. • 1 tane Kasa Bağlı/Su Pompalı Fan Bağlayıcı (4 pimli) (Akıllı...
- Página 45 H310M-HDV 규격 • Micro ATX 폼 팩터 플랫폼 • 솔리드 콘덴서 구조 • 8 세대 Intel® Core 프로세서 지원 ( 소켓 1151) • 5 개 전원 위상 구조 • Intel® Turbo Boost 2.0 기술 지원 • Intel® H310 칩세트 • 듀얼 채널 DDR4 메모리 기술...
- Página 46 • DVI-D 지원 ( 최대 해상도 1920x1200 @ 60Hz) • D-Sub 지원 ( 최대 해상도 1920x1200 @ 60Hz) • Auto Lip Sync, Deep Color (12bpc), xvYCC 및 HBR (High Bit Rate Audio)(HDMI 포트 포함 ) 지원 (HDMI 호환 모니터 필요 ) • DVI-D 및...
- Página 47 H310M-HDV • TPM 헤더 1 개 커넥터 • 섀시 침입 및 스피커 헤더 1 개 • CPU 팬 커넥터 (4 핀 ) 1 개 * CPU 팬 커넥터는 팬 전력이 최대 1A(12W) 인 CPU 팬을 지원 합니다 . • 섀시 / 워터 펌프 팬 커넥터 (4 핀 ) 1 개 ( 스마트 팬 속도...
- Página 48 仕様 • マイクロ ATX フォームファクター プラッ ト • 固体コンデンサ設計 フォーム • 第 8 世代 Intel® Core プロセッサーに対応 （ソケッ ト 1151） • 5 電源フェーズ設計 • Intel® ターボブースト 2.0 テク ノロジーをサポート チップセッ ト • Intel® H310 • デュアルチャンネル DDR4 メモリ機能 メモリ • 2 x DDR4 DIMM スロッ ト • DDR4 2666/2400/2133 ノン...
- Página 49 H310M-HDV • HDMI に対応、 最大解像度 4K x 2K (4096x2160) @ 30Hz • DVI-D に対応、 最大解像度 1920x1200 @60Hz • D-Sub に対応、 最大解像度 1920x1200 @60Hz • HDMI ポートでオートリ ップシンク、 ディープカラー （12bpc） 、 xvYCC、 および、 HBR （高ビッ トレートオーディオ） に対応 （HDMI 対応モニターが必要です） • DVI-D ポートと HDMI ポートで HDCP に対応...
- Página 50 • 1 x TPM ヘッダー コネクタ • 1 x シャーシイントルージョンとスピーカーヘッダー • 1 x CPU ファンコネクタ （4 ピン） * CPU ファンコネクタは最大 1A (12W) の電力の CPU ファンに 対応します。 • 1 x ウォーターポンプファンコネクタ （4 ピン） （ スマートファン 速度制御） * シャーシ / ウォーターポンプファンは最大 2A (24W) の出力の ウォータークーラーに対応します。...
- Página 51 H310M-HDV 规格 • Micro ATX 规格尺寸 平台 • 稳固的电容器设计 • 支持第 8 代 Intel® Core 处理器（插座 1151） • 5 电源相设计 • 支持 Intel® Turbo Boost 2.0 技术 • Intel® H310 芯片集 • 双通道 DDR4 内存技术 内存 • 2 x DDR4 DIMM 槽...
- Página 52 • 支持 DVI-D，60Hz 时最大分辨率达 1920x1200 • 支持 D-Sub，60Hz 时最大分辨率达 1920x1200 • 通过 HDMI 端口（需要兼容的 HDMI 显示器）支持 Auto Lip Sync、Deep Color (12bpc), xvYCC 和 HBR（高位速率 音频） • 通过 DVI-D 和 HDMI 端口支持 HDCP • 通过 HDMI 端口支持支持 4K 超高清 (UHD) 播放 • 7.1 CH 高清音频...
- Página 53 H310M-HDV • 1 x TPM 接脚 接口 • 1 x 机箱侵入和扬声器接脚 • 1 x CPU 风扇接口（4 针） * CPU 风扇接口支持最高 1A (12W) 功率的 CPU 风扇。 • 1 x 机箱 / 水泵风扇接口（4 针）（智能风扇速度控制） * 机箱水泵风扇支持最高 2A (24W) 功率的水冷风扇。 * CHA_FAN1/WP 可以自动检测 3 针脚或 4 针脚风扇是否在...
- Página 54 电子信息产品污染控制标示 依据中国发布的「电子信息产品污染控制管理办法」及 SJ/T 11364-2006「电子 信息产品污染控制标示要求」，电子信息产品应进行标示，藉以向消费者揭露 产品中含有的有毒有害物质或元素不致发生外泄或突变从而对环境造成污染或 对人身、财产造成严重损害的期限。依上述规定，您可于本产品之印刷电路板 上看见图一之标示。图一中之数字为产品之环保使用期限。由此可知此主板之 环保使用期限为 10 年。 图一 有毒有害物质或元素的名称及含量说明 若您欲了解此产品的有毒有害物质或元素的名称及含量说明，请参照以下表格 及说明。 有害物质或元素 部件名称 铅 (Pb) 镉 (Cd) 汞 (Hg) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 印刷电路板 及电子组件 外部信号连 接头及线材 O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定 的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 标准 规定的限量要求，然该部件仍符合欧盟指令...
- Página 55 H310M-HDV 規格 • Micro ATX 尺寸 平台 • 固態電容設計 • 支援第 8 代 Intel® Core 處理器 (Socket 1151) • 5 電源相位設計 • 支援 Intel® Turbo Boost 2.0 技術 • Intel® H310 晶片組 • 雙通道 DDR4 記憶體技術 記憶體 • 2 x DDR4 DIMM 插槽...
- Página 56 • 支援最高可達 4K x 2K (4096x2160) @ 30Hz 解析度的 HDMI • 支援最高達 1920x1200 @ 60Hz 解析度的 DVI-D • 最高支援 1920x1200 @ 60Hz 解析度的 D-Sub • 支援使用 HDMI 連接埠（需相容於 HDMI 監視器）的 Auto Lip Sync、Deep Color (12bpc)、xvYCC 及 HBR（高位 元率音訊） • 支援含 DVI-D 及 HDMI 連接埠的 HDCP • 支援使用...
- Página 57 H310M-HDV • 1 x TPM 排針 接頭 • 1 x 機殼防護排針 • 1 x CPU 風扇接頭 (4-pin) * CPU 風扇接頭支援最高 1A (12W) 風扇功率的 CPU 風扇。 • 1 x 機殼／水冷幫浦風扇接頭 (4-pin)（智慧型風扇速度控 制） * 機殼水冷幫浦風扇接頭支援最高 2A (24W) 風扇功率的水冷 風扇。 * 如果 3-pin 或 4-pin 風扇使用中，可自動偵測 CHA_FAN1/ WP。...
- Página 58 Spesifikasi Platform • Bentuk dan Ukuran Micro ATX • Desain Kapasitor Solid • Mendukung Prosesor Generasi ke-8 Intel® Core (Soket 1151) • Desain 5 Fase Daya • Mendukung Teknologi Intel® Turbo Boost 2.0 • Intel® H310 Chipset • Teknologi Memori DDR4 Dua Saluran Memori • 2 x Slot DIMM DDR4 • Mendukung DDR4 2666/2400/2133 non-ECC, memori tanpa...
- Página 59 H310M-HDV • Mendukung HDMI dengan resolusi maksimum hingga 4K x 2K (4096x2160) @ 30Hz • Mendukung DVI-D dengan resolusi maksimum hingga 1920x1200 @ 60Hz • Mendukung D-Sub dengan resolusi maksimum hingga 1920x1200 @ 60Hz • Mendukung Auto Lip Sync, Kedalaman Warna (12bpc),...
- Página 60 Penyimpanan • 4 x Konektor SATA3 6,0 Gb/s, mendukung NCQ, AHCI, dan Hot Plug Konektor • 1 x Header TPM • 1 x Intrusi Chassis dan Header Speaker • 1 x Konektor Kipas CPU (4-pin) * Konektor Kipas CPU mendukung kipas CPU dengan daya kipas maksimum 1A (12W).
- Página 61 H310M-HDV Specyfikacje Platforma • Współczynnik kształtu Micro ATX • Konstrukcja kondensatorami stałymi • Obsługa 8 generacji procesorów Intel® Core (Socket 1151) • Sekcja zasilania 5 Power Phase Design • Obsługa technologii Intel® Turbo Boost 2.0 • Intel® H310 Chipset • Technologia pamięci Dual Channel DDR4 Pamięć...
- Página 62 • Opcje trzech wyjść graficznych: D-Sub, DVI-D i HDMI * Obsługa do 2 monitorów jednocześnie • Obsługa HDMI z maks. rozdzielczością do 4K x 2K (4096x2160) przy 30Hz • Obsługa DVI-D z maks. rozdzielczością do 1920x1200 przy 60Hz • Obsługa D-Sub z maks. rozdzielczością do 1920x1200 przy 60Hz • Obsługa Auto Lip Sync, Deep Color (12bpc), xvYCC i HBR (High Bit Rate Audio) z portami HDMI (Wymagany monitor...
- Página 63 H310M-HDV Przechowy- • 4 x złącza SATA3 6,0 Gb/s, obsługa NCQ, AHCI i Hot Plug wanie Złącze • 1 x złącze główkowe TPM • 1 x złącze główkowe naruszenia obudowy i głośnika • 1 x złącze wentylatora CPU (4-pinowe) * Złącze wentylatora CPU obsługuje wentylator CPU maksymalnym prądem zasilania wentylatora 1A (12W).
