Dibujo Y Características Del Float Rl; Sbc Enduro Float R & Rl - FOX RACING SHOX FLOAT Manual Del Usuario

FLOAT RL

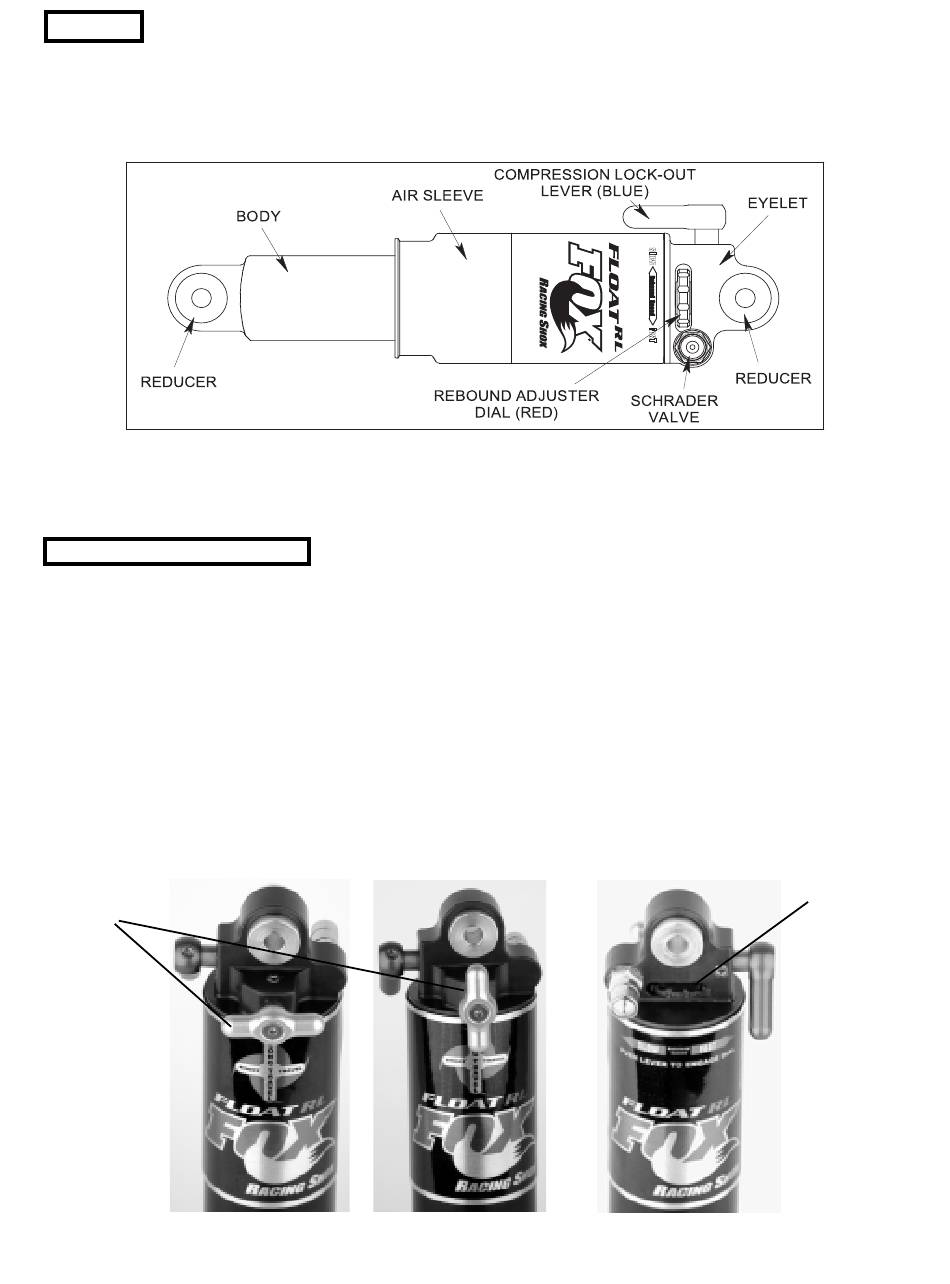

Características Del Amortiguador
Resorte Ajustable Del Aire - Pistón Interno Del Floating - Amortiguación Del Aceite - Uno mismo Que ajusta El
Resorte De la Negativa Del Aire - Amortiguación Sensible De la Compresión De la Velocidad - Amortiguación
Externamente Ajustable De la Extensión - Apilado sensible de la válvula de la extensión de la velocidad -
Cierre de la compresión con el escape de alta velocidad - Cargada Nitrógeno
Rebound Adjustment
Please refer to Rebound Adjustment for FLOAT R.
Compression Lock-out
Please refer to Compression Lock-out instructions for Float L.
Enduro FLOAT R & FLOAT RL
The Enduro FLOAT R and Enduro FLOAT RL shocks feature a switch that adjusts travel. When the switch is in line
with the shock, it is in Long Travel mode and has 1.875 inches of travel. When the switch is turned 90
direction the shock changes to short travel mode and has 1.375 inches of travel. Spring Rate is also stiffer in short
travel mode.
Important - All air pressure adjustments, adding or releasing air pressure, must be done in the long travel mode.
Sag should be set in the long travel position. (See page 8 for instructions on Adjusting Sag) If pressure is released
when the shock is in the short travel mode it must be switched to long travel mode and pressurized to at least 10 psi
greater than the starting pressure. For example, if the shock has 150 psi and the pressure is released in short travel
mode, the shock must be switched to long travel mode and then pressurized to at least 160 psi. Pressure can then
be released as long as the shock remains in long travel mode.
The Enduro FLOAT R and Enduro FLOAT RL also feature a Rebound Adjuster Dial. Turning the dial clockwise slows
the rebound. Counter-clockwise rotation speeds the rebound. Move the dial one click at a time until desired rebound
is achieved.
Travel Adjustment
Switch
Switch in Short -Travel Position Switch in Long-Travel Position
in either
o
Rebound Adjuster
