wall. If the structure of your wall is different, corresponding installation material must be
used. In any case, consult a specialist.
• Make sure to observe the correct thread size during installation of the display screen to
the wall bracket.

5 Installation:

ATTENTION! Only trained professionals are authorized to inspect the wall, as well
as install and remove the product! For more information please read the Chapters
"Notes on Safety" and "Troubleshooting".
Wall Installation:

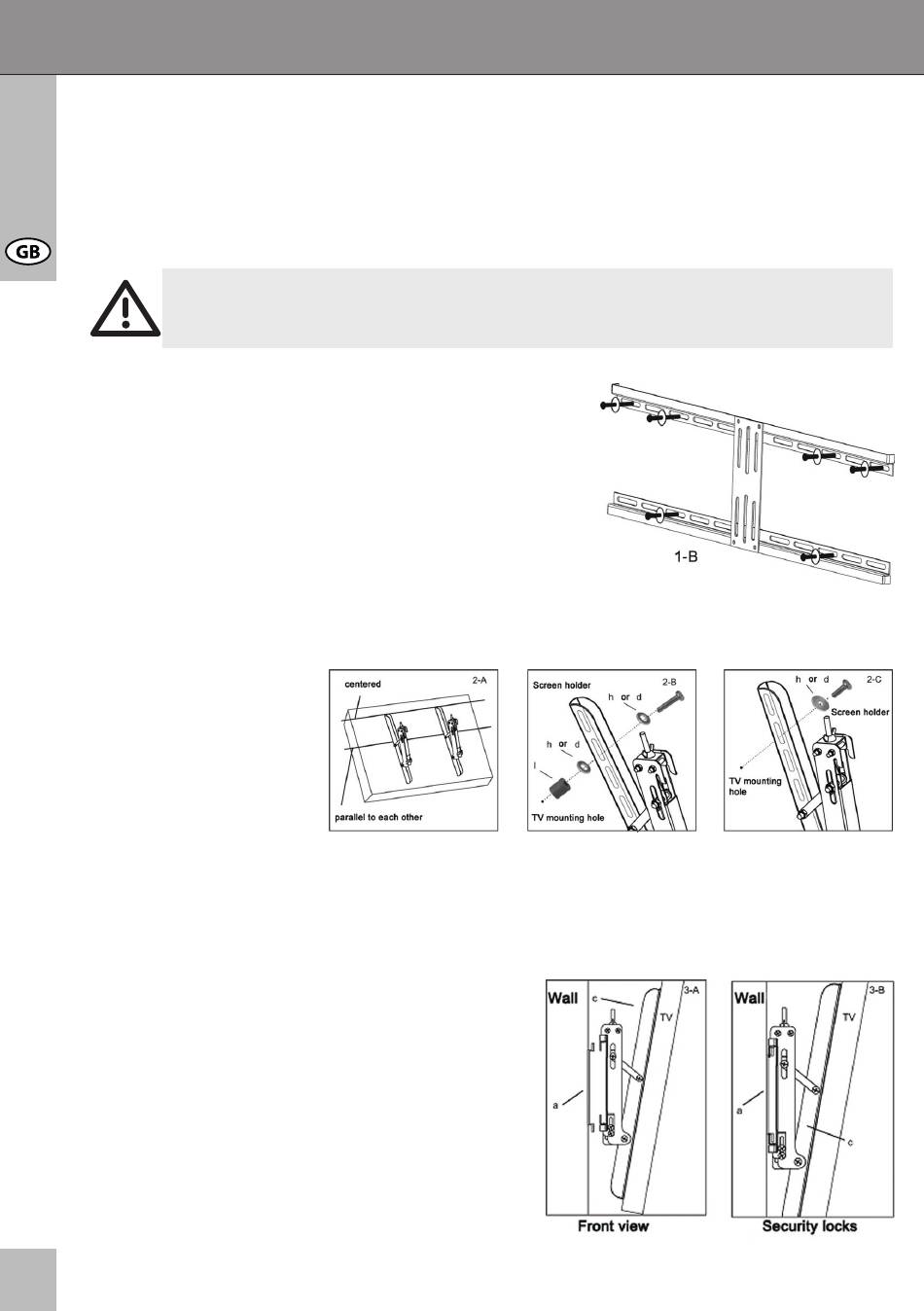

Step 1
Please use the wall bracket as template (A) to mark
6 holes (4 on top and 2 at the bottom – Fig. 1-B) to
be drilled in the wall using a level. Check, if gas or
water pipes, or power lines are behind the wall
before drilling. Use a 10 mm stone drill to bore the
holes with a depth of 60 mm. Insert one dowel (F)
into each of the drilled holes. Now, use the 6 wall
screws (E) and 6 suitable washers (D) to attach the
wall bracket (A).
Attaching Screen Holders to the Rear Side of the Display Screen:
Step 2
make sure the
screen holders
are parallel to
each other and
centered to the
display screen.
(Fig. 2-A)
M4, M5, M6, and
M8 screws are supplied for attachment to the display screen. Other sizes must be
purchased from a specialty shop. You must use the supplied spacers for display screens
with curved rear side as illustrated in (Fig. 2-B). For display screens with flat rear side
proceed as illustrated in (Fig. 2-C). Here, the proper screw size depends on the thread
size of the display screen.
Hooking Up:
Step 3
Now, hook the display screen onto the top of
the wall bracket as illustrated in (Fig. 3-A).
Loosen the screws at the bottom of the
screen bracket to adjust them at the wall
bracket. Now, tighten the lower locking
screws of the screen holder again. (Fig. 3-B)
After attachment of screen holders to the wall
bracket you can adjust the angle of inclination
of the display screen. To do so, turn the
thumb nuts on the top of the screen holders.
