CARBEST CoolSky| 495003/4950031/495004/4950041

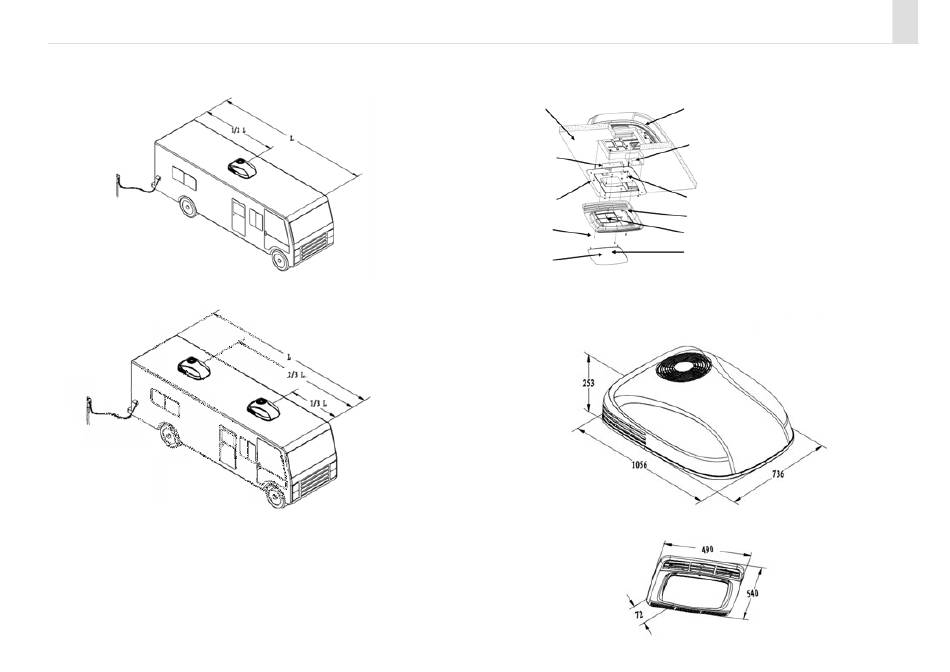

1. For the installation of a single air conditioner, the air conditioner should be installed as shown in
the following figure.
2. For the installation of two air conditioners, the air conditioners should be installed as shown in
the following figure:
• The roof inclination of the installation surfuce may not exceed 10°
• After the installation position is determined, it is required to check whether there are obstacles in
the installation area. Make sure no combustible objects are stored or installed near the air outlet.
A distance of least 50 cm should be kept.
• When the motorhome is moving, the top must be able to support heavy objects weighing ≥ 60kg.
Generally, the static load design of 100 kg can meet this requirement.
• Check whether there are obstacles (i.e., door openings, partition frames, curtains, ceiling fixtures,
etc.) that hinder the installation of inner panel of the air conditioner.

2.2.3. Installation exploded drawing

Roof of
motorhome
Control
box
Long bolt
Screw
Display board
• The overall dimensions of each outdoor unit and panel are as follows:
Indoor panel
21
Outdoor unit of
air conditioner
Air duct sponge
Fixing plate
Panel
Filter screen
Decorative panel
with display
Outdoor unit
EN
