7131222EBL

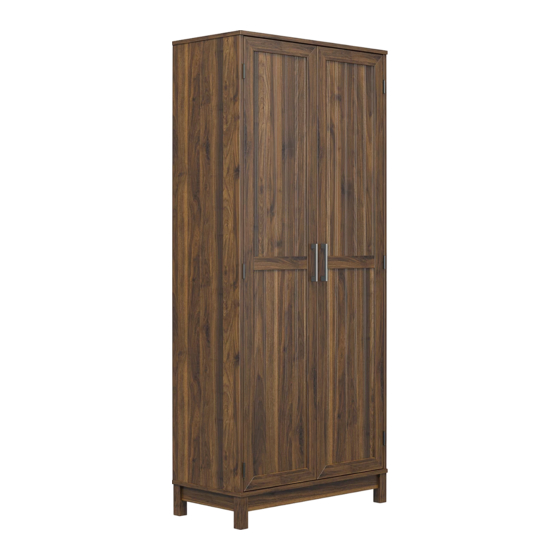

Storage Cabinet
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Secure Your Furniture
Keep your home and family safe
with the wall anchor kit that is
included with the product.
Serious or fatal crushing injuries can
occur from tipping furniture.
WARNING: Manufacturer assumes no liability
for improper installation or excessive loads
placed on screws or bracket. This wall anchor
is not a substitute for proper adult supervision.
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
B347131222EBL
0
Tough
Publicidad
Manuales relacionados para Ameriwood HOME 7131222EBL
Resumen de contenidos para Ameriwood HOME 7131222EBL
- Página 1 Easy Tough Assembly Difficulty Meter Serious or fatal crushing injuries can occur from tipping furniture. Follow Ameriwood Home WARNING: Manufacturer assumes no liability for improper installation or excessive loads placed on screws or bracket. This wall anchor Tube is not a substitute for proper adult supervision.
- Página 2 Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 - Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Página 3 Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Parts are labeled on the surface or edge of the part Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing,...
- Página 4 Before You Start Please Note: You may need to lightly tap the wood dowels into the holes during your assembly process. ameriwoodhome.com...
- Página 5 Board Identification Not actual size 37131222030 Bottom Right Panel Left Panel 37131222040 37131222020 37131222010 Adjustable Shelf (2) Rail (2) Fixed Shelf 37131222060 37131222070 37131222050 Side Rail (2) Left Foot (2) Right Foot (2) 37131222080 37131222090 37131222100 ameriwoodhome.com...
- Página 6 Board Identification Not actual size BACK PANEL Back Panel K713122200 This piece is paperboard construction. It is not made from wood, but is Door Assembly (2) 37131222110 required for the assembly of your unit. ameriwoodhome.com...
- Página 7 Board Identification This piece is paperboard construction. It is not made from wood, but is required for the assembly of your unit. BACK PANEL ameriwoodhome.com...
- Página 8 Note that your unit may contain extra hardware Part List Actual Size (x10) (x14) (x14) (x2) #A22760 #A22710 #A21660 #A22700 quicklock cam bolt wood dowel cam lock (x4) #A30030 plastic catch kit (x40) (x8) #A12105 #A80250 Not Actual Size #8 x 7/16" screw shelf support (x4) (x4)
- Página 9 STEP 1 (x1) (x2) Proper orientation of Cam Lock finished edge ameriwoodhome.com...
- Página 10 STEP 2 (x1) (x2) Proper orientation of Cam Lock finished edge ameriwoodhome.com...
- Página 11 STEP 3 (x4) (x4) (x2) (x1) Do not fully tighten screw in this step. flip over ameriwoodhome.com...
- Página 12 STEP 4 (x2) (x2) Proper orientation of Cam Lock Proper orientation of Cam Lock ameriwoodhome.com...
- Página 13 STEP 5 finished edge finished edge ameriwoodhome.com...
- Página 14 STEP 6 finished edge ameriwoodhome.com...
- Página 15 STEP 7 (x4) (x2) finished surface Proper orientation of Catch ameriwoodhome.com...
- Página 16 STEP 8 (x4) finished edge ameriwoodhome.com...
- Página 17 STEP 9 IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. (x40) Place the unit onto its front. Attach the back panel as shown nailing straight into the raw edges. Assure that the unit is square. Distance from corner to corner must be equal.
- Página 18 STEP 10 (x6) (x4) Proper orientation of Cam Lock Proper orientation of Quick Lock Proper orientation of Cam Lock ameriwoodhome.com...
- Página 19 STEP 11 (x2) (x4) Proper orientation of Cam Lock Proper orientation of Quick Lock Proper orientation of Cam Lock ameriwoodhome.com...
- Página 20 STEP 12 (x8) (x8) Paper seam location for Left Foot (this surface) Paper seam location for Right Foot (this surface) ameriwoodhome.com...
- Página 21 STEP 13 Paper seam location (this surface) Paper seam location (back surface) ameriwoodhome.com...
- Página 22 STEP 14 Paper seam location (this surface) Paper seam location (this surface) ameriwoodhome.com...
- Página 23 STEP 15 ameriwoodhome.com...
- Página 24 STEP 16 Please note: Unit is laying on front side. Notice feet locations (I & J) Turn clockwise to lock both parts together BACK PANEL Lock 8 locations ameriwoodhome.com...
- Página 25 STEP 17 For Masonry, Concrete, or other wall materials: Consult your local hardware store for appropriate anchors to securely attach the safety bracket. (x1) IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT. hole WARNING stud...
- Página 26 STEP 18 (x4) (x20) (x4) (x6) (x2) ameriwoodhome.com...
- Página 27 STEP 19 (x6) ameriwoodhome.com...
- Página 28 STEP 20 (x6) ameriwoodhome.com...
- Página 29 STEP 21 (x8) ameriwoodhome.com...
- Página 30 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 0 lbs 0 kg (top) 35 lbs 15.8 kg (fixed shelf) 30 lbs 13.6 kg (adjustable shelves) 40 lbs 18.1 kg...
- Página 31 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com...
- Página 32 Espa ol Cubierta Delantera Este libro de instrucciones contiene informaci n IMPORTANTE de seguridad. Por favor lea y mant ngalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda.
- Página 33 Espa ol P gina 6, 7 Esta pieza es una construcci n de cart n. No est hecho de madera, pero es necesarios para el montaje de su unidad. P gina 8 Tenga en cuenta que la unidad puede contener hardware adicional P gina 9, 10 Orientaci n adecuada de la cerradura de leva borde acabado...
- Página 34 Espa ol P gina 21 Ubicaci n de la costura del papel (esta superficie) Ubicaci n de la costura del papel (superficie posterior) P gina 22 Ubicaci n de la costura del papel (esta superficie) P gina 24 Tenga en cuenta: la unidad est colocada sobre el lado frontal. Observe las ubicaciones de los pies (I y J) Gire en el sentido de las agujas del reloj para bloquear ambas partes en su lugar.
- Página 35 Visite el sitio web de su tienda local, califique su comprado y denos sus comentarios! Nos gustar a enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Ameriwood Home, y por darnos sus valiosos comentarios. Gracias ameriwoodhome.com...
- Página 36 Fran ais Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA S CURIT . VEUILLEZ LIRE ET GARDER POUR UNE R F RENCE FUTURE Ne retournez pas ce produit! Contactez notre quipe de service la client le amicale d'abord pour obtenir de l'aide.
- Página 37 Fran ais Page 6, 7 La pi ce est de construction en carton. Il n est pas fabriqu partir de bois, mais il est n cessaire pour l assemblage de votre unit . Page 8 Notez que votre appareil peut contenir du mat riel suppl mentaire Page 9, 10 Bonne orientation du verrouillage de la came bord fini...
- Página 38 Fran ais Page 21 Emplacement de la couture de papier (cette surface) Emplacement de la couture de papier (surface arri re) Page 22 Emplacement de la couture de papier (cette surface) Page 24 Veuillez noter que l unit est pos e sur le c t avant. Notez les emplacements des pieds (I&J) Tournez dans le sens des aiguilles d une montre pour verrouiller les deux parties ensemble Page 25 - wall mounting step Pour la ma onnerie, le b ton ou d'autres mat riaux de mur :...
- Página 39 Visitez le site Web de votre d taillant local, valuez votre produit achet et laissez-nous quelques commentaires ! Nous tenons offrir un grand "Merci" tous nos clients pour avoir pris le temps d'assembler ce produit "Ameriwood Home", et de nous donner vos commentaires pr cieux. Merci ameriwoodhome.com...
