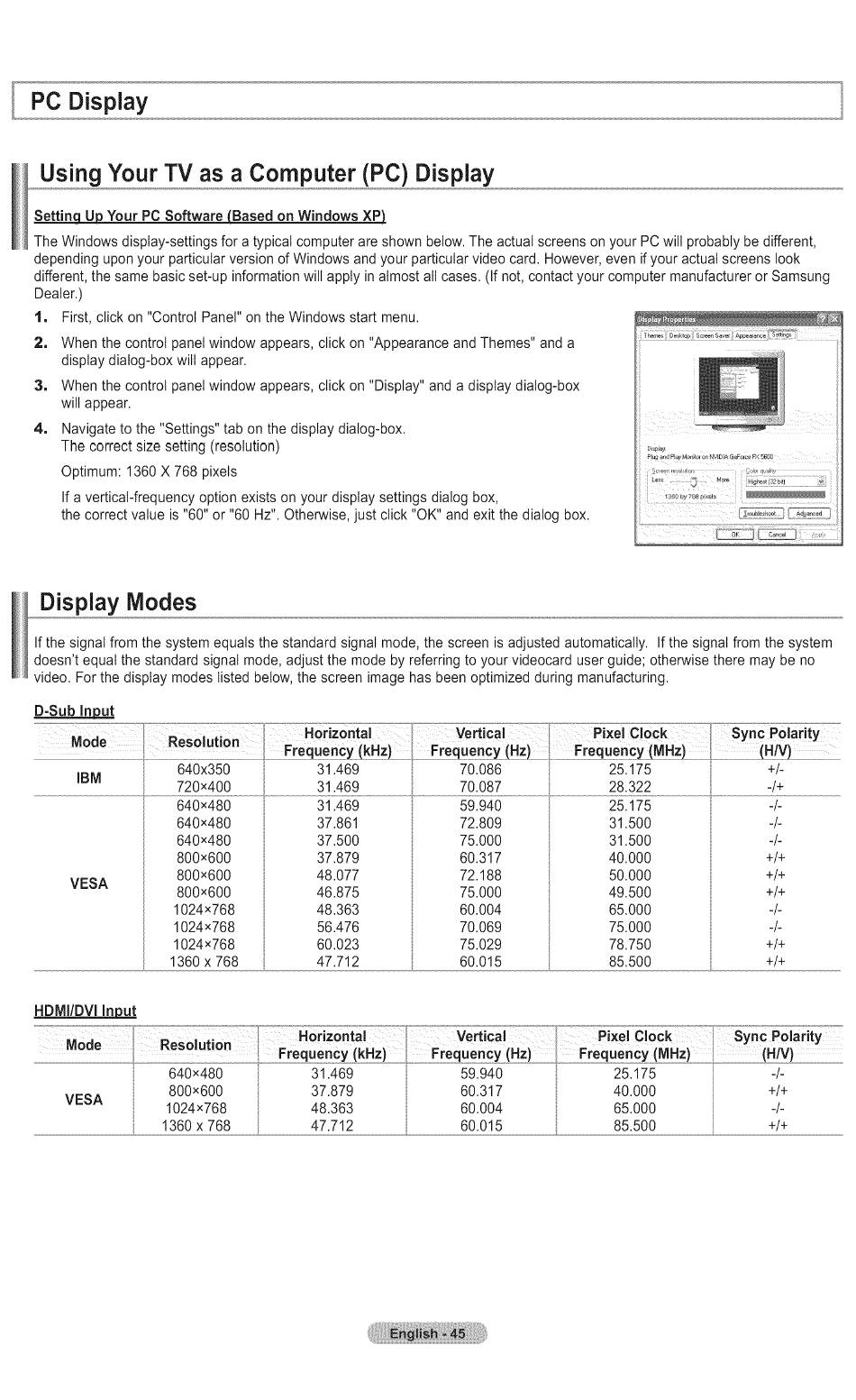

PC Display
Using Your TV as a Computer (PC) Display
Your PC Software_Based on Windows XPJ
The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different,
depending upon your particular version of Windows and your particular video card. However, even if your actual screens look
different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung
Dealer.)
1, First, click on "Control Panel" on the Windows start menu.
2, When the control panel window appears, click on "Appearance and Themes" and a
display dialog-box will appear.
3, When the control panel window appears, click on "Display" and a display dialog-box
wilt appear.
4, Navigate to the "Settings" tab on the display dialog-box.
The correct size setting (resolution)
Optimum: 1360 X 768 pixels
If a vertical-frequency option exists on your display settings dialog box,
the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.
Di pJa_:
pk_g and Piay MoIli_or on NVIDiA B_BrcO FX 5600
Display Modes
If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system
doesn't equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no
video. For the display modes listed below, the screen image has been optimized during manufacturing.
D-Sub In_ut
IBM
VESA
640x350
720x400
640x480
640x480
640x480
800x600
800x600
800x600
1024x768
1024x768
1024x768
1360 x 768
31.469
31.469
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
47.712
Vertical
..........
ClockTT'2
70.086 25.175
70.087 28.322
59.940 25.175
72.809 31.500
75.000 31.500
60.317 40.000
72.188 50.000
75.000 49.500
60.004 65.000
70.069 75.000
75.029 78.750
60.015 85.500
Sync Polarity
+/-
-/+
-/-
-/-
-/-
+/+
+/+
+/+
-/-
-/-
+/+
+/+
HDIVII/DVIIn_nput
640x480 31.469 59.940 25.175 -/-
800x600 37.879 60.317 40.000 +/+
VESA
1024x768 48.363 60.004 65.000 -/-
1360 x 768 47.712 60.015 85.500 +/+
