Craftsman 875.191170 Instrucciones De Operación página 4

Sears Craftsman Model 875.191170
Pneumatic 3/8" Drive Ratchet Wrench

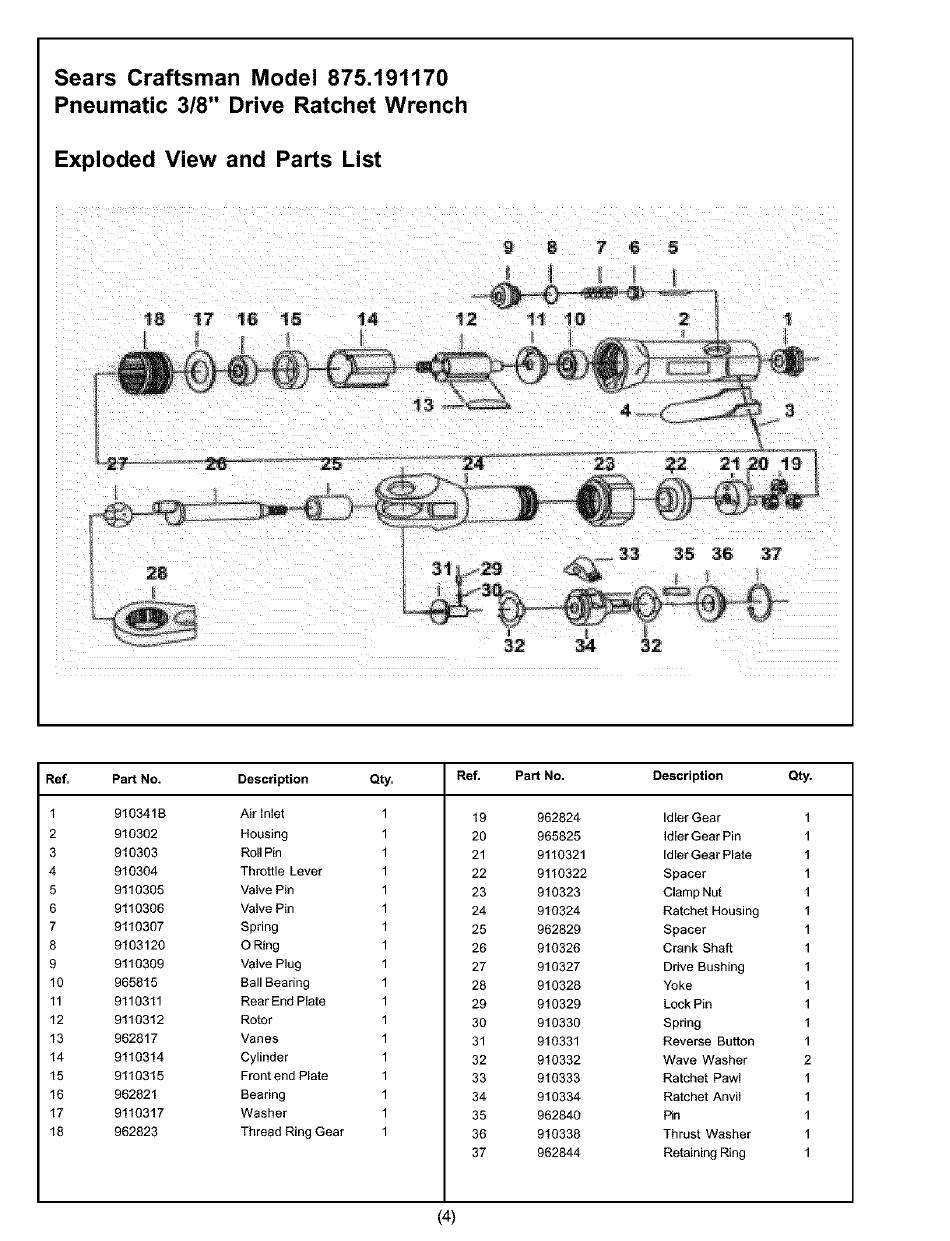

Exploded View and Parts List
9 8 7 6 5
33 35 36 37
32
Ref. Part No. Description Qty. Ref. Part No. Description Qty.
1 910341B Air Inlet 1
2 910302 Housing 1
3 910303 Roll Pin 1
4 910304 Throttle Lever 1
5 9110305 Valve Pin 1
6 9110306 Valve Pin 1
7 9110307 Spring 1
8 9103120 O Ring 1
9 9110309 Valve Plug 1
10 965815 Ball Bearing 1
11 9110311 Rear End Plate 1
12 9110312 Rotor 1
13 962817 Vanes 1
14 9110314 Cylinder 1
15 9110315 Front end Plate 1
16 962821 Bearing 1
17 9110317 Washer 1
18 962823 Thread Ring Gear 1
19 962824 Idler Gear 1
20 965825 Idler Gear Pin 1
21 9110321 Idler Gear Plate 1
22 9110322 Spacer 1
23 910323 Clamp Nut 1
24 910324 Ratchet Housing 1
25 962829 Spacer 1
26 910326 Crank Shaft 1
27 910327 Drive Bushing 1
28 910328 Yoke 1
29 910329 Lock Pin 1
30 910330 Spring 1
31 910331 Reverse Button 1
32 910332 Wave Washer 2
33 910333 Ratchet Pawl 1
34 910334 Ratchet Anvil 1
35 962840 Pin 1
36 910338 Thrust Washer 1
37 962844 Retaining Ring 1
