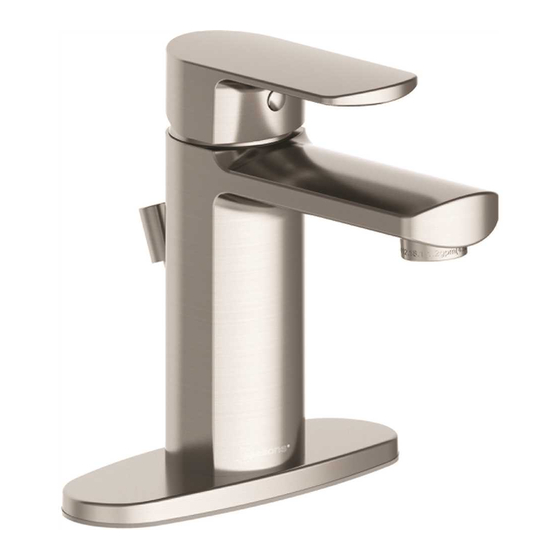

Westwind™ Single Handle Bath Faucet,
With Quick Install Pop Up, Brushed Nickel, 1.2 GPM
Grifo para baño Westwind™ de una manija,
con drenaje emergente rápido, níquel cepillado, 1.2 GPM
NSF/ANSI/CAN 61: Q ≤ 1
Exclusively Distributed By:
HD Supply
Atlanta, GA 30339
© 2022
With Flange
Con Brida
With Deckplate
Con Placa De Cubierta
1
Part #: 211831
USN #: 320467901
Mfg #: 67303W-8104
To Reorder:
1-800-431-3000
hdsupplysolutions.com
Publicidad
Manuales relacionados para Seasons Westwind 67303W-8104
Resumen de contenidos para Seasons Westwind 67303W-8104
- Página 1 Part #: 211831 USN #: 320467901 Mfg #: 67303W-8104 Westwind™ Single Handle Bath Faucet, With Quick Install Pop Up, Brushed Nickel, 1.2 GPM Grifo para baño Westwind™ de una manija, con drenaje emergente rápido, níquel cepillado, 1.2 GPM With Flange With Deckplate Con Brida Con Placa De Cubierta...
- Página 2 Preparation / Preparación Before beginning the assembly of this product, make sure all parts are present. Compare parts with the package contents list. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Antes de comenzar el ensamblaje del producto, asegúrese de tener todas las piezas.
- Página 3 Assembly Instructions / Instrucciones de Ensamblaje With Flange (optional): With Deckplate (optional): Shut off water supply at angle stop. Remove old faucet. Clean sink Align the hole in the gasket (D) and deckplate (C) with the mounting surface in preparation for new faucet. Before installation, ensure that hole in the sink.
- Página 4 Assembly Instructions / Instrucciones de Ensamblaje Insert 2 Insert 3 Folleto 2 Folleto 3 Installing the drain body ： Installing the stopper and horizontal rod: Insert the washer (J) into the drain flange (I) and place the drain Before installation, unscrew the protective cap (1) from the horizontal flange (I) into the drain hole of the sink.
- Página 5 Assembly Instructions / Instrucciones de Ensamblaje Fig. 2 Fig. 1 Adjusting the length of lift rod strap (optional) Making the waterline connections： If the pop up lift rod strap (Q) is interfering with your installation, as Thread the nut (1) on supply line onto outlet of water supply valve (2) and tighten with wrench.
- Página 6 Care and Cleaning / Cuidado y Limpieza □ To clean, wipe down with a damp cloth and dry with a towel. □ Para limpiar, usa un paño húmedo y seca con una toalla. □ Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will be voided. □...
