NAME OF PARTS AND OPERATION SELECTOR SWITCH

NOTE
This illustration is based on the
external view of a standard model.
Consequently, the shape may
differ from that of the air
conditioner which you have
selected.

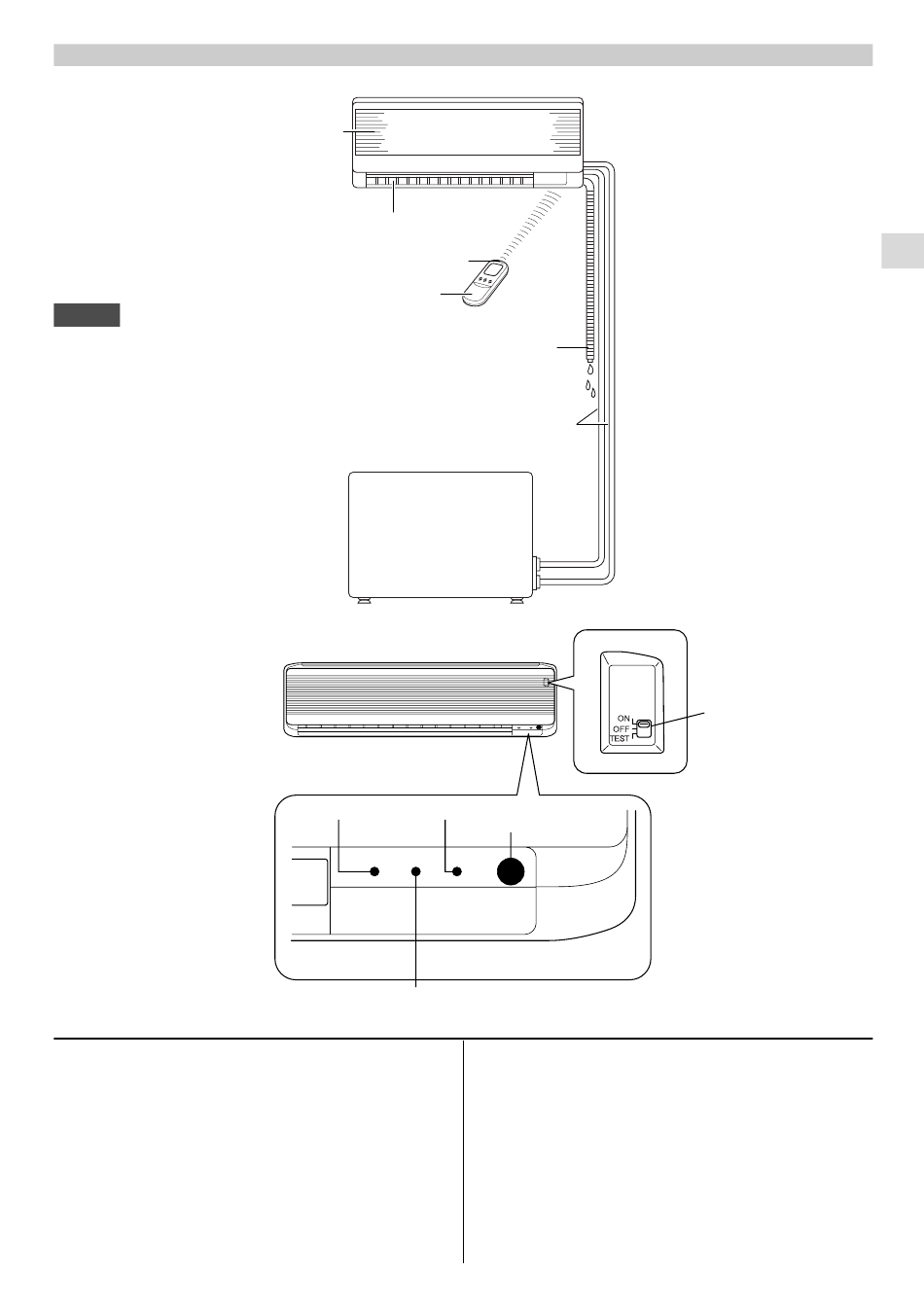

1. Remote control unit.
2. Sensor: Detects the room temperature around the remote
control unit, the air conditioner is controlled accordingly.
3. Air outlet : distributes filtered and treated air into the room.
4. Air inlet : room air is sucked in through filters.
5. Receiver : receives signals transmitted from the remote control.
6. Flexible drain tube: removes condensate.
4

INDOOR UNIT

3
2
1

OUTDOOR UNIT

INDOOR UNIT
Operation lamp Timer lamp
OPERATION STANDBY TIMER
Standby lamp
Only for heat pump models
3
6
7
5
7. Refrigerant tubes: convey refrigerant between the indoor
and outdoor unit.
8. Operation selector.
ON Position: In this position the air conditioner is operating
and controlled by the remote control unit.
Set the selector normally in this position.
OFF Position: Switch the selector to the off position if you
are not going to use the air conditioner for
a few days or longer.
