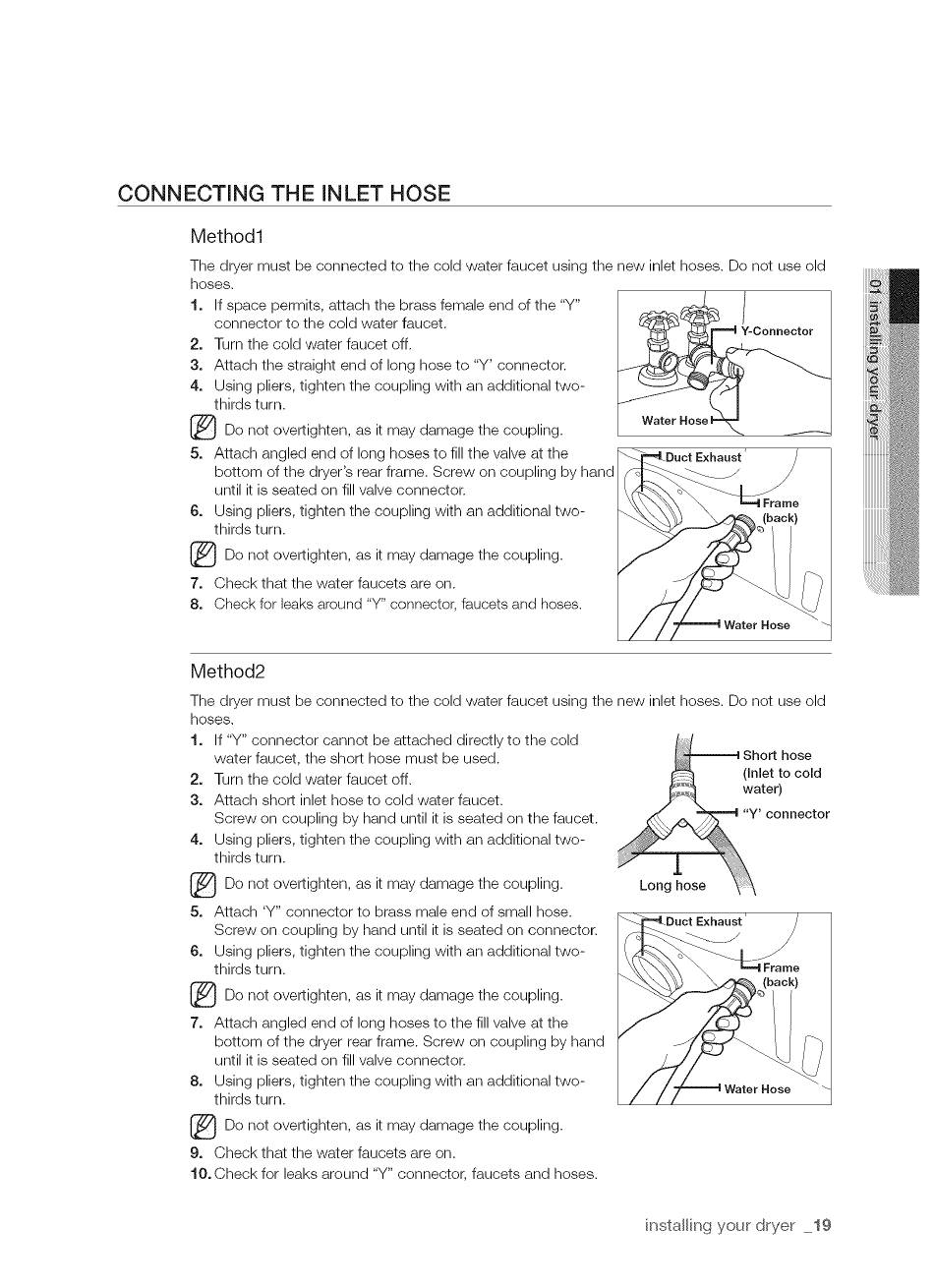

CONNECTING
THE iNLET HOSE
Method1
The dryer must be connected
to the cold water faucet using the new inlet hoses. Do not use old
hoses.
1.
If space permits,
attach the brass female end of the "Y"
connector
to the cold water faucet.
2. Turn the cold water faucet off.
3. Attach the straight
end of long hose to "Y' connector.
4.
Using pliers, tighten the coupling
with an additional
two-
thirds turn.
[_Do
not overtighten,
as it may damage
the coupling.
5. Attach angled end of long hoses to fill the valve at the
_Duct
Exhaust'
J
bottom
of the dryer's rear frame. Screw on coupling
by hand
S_
_---J
/
until it is seated on fill valve connector.
\r,_
_ \_-L_
6.
Using pliers, tighten the coupling
with an additional
two-
_,_._,.
_
(Fraack
_
thirdsturn
/ /
[_
Do not overtighten,
as it may damage
the coupling.
_
/_
/
/
7. Check that the water faucets
are on.
F
-/P_x_)
/-_
8. Check for leaks around "Y" connector, faucets and hoses.
/,_
/
--
/
/7
"="='"_ water HOse
--
Method2
The dryer must be connected
to the cold water faucet using the new inlet hoses. Do not use old
hoses.
1.
If "Y" connector
cannot be attached
directly to the cold
water faucet, the short hose must be used.
2. Turn the cold water faucet off.
3. Attach short inlet hose to cold water faucet.
Screw
on coupling
by hand until it is seated on the faucet.
4.
Using pliers, tighten the coupling
with an additional
two-
thirds turn.
[_Do
not overtighten,
as it
damage
the coupling.
may
5. Attach
'Y" connector
to brass male end of small hose.
Screw
on coupling
by hand until it is seated on connector.
6.
Using pliers, tighten the coupling
with an additional
two-
thirds turn.
Do not overtighten,
as it may damage
the coupling.
7. Attach angled end of long hoses to the fill valve at the
bottom
of the dryer rear frame. Screw
on coupling
by hand
until it is seated on fill valve connector.
8.
Using pliers, tighten the coupling
with an additional
two-
thirds turn.
[_Do
not overtighten,
as it
damage
the coupling.
may
9. Check that the water faucets
are on.
10. Check for leaks around
"Y" connector,
faucets
and hoses.
installing
your dryer 19
