Metra 99-7803G Instrucciones De Instalación

Honda Accord 2003-2007
KIT FEATURES
• Double DIN radio provisions
• ISO DIN radio provisions with pocket
• Retains all climate control systems including dual-zone
• Painted gray to match the factory finish

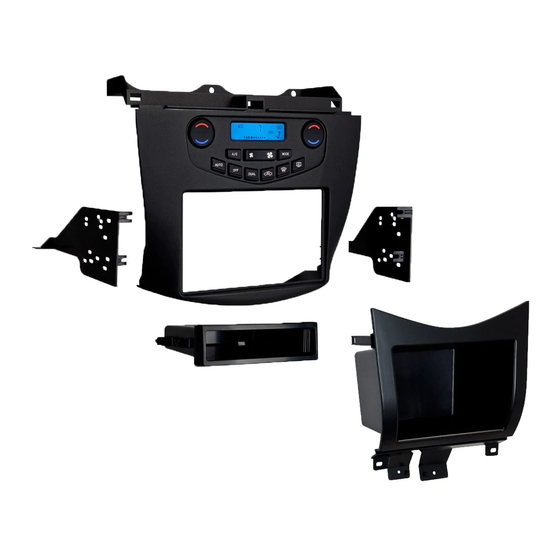

KIT COMPONENTS
• A) Radio Housing Trim Panel • B) Radio Brackets • C) Pocket • D) Panel Clip Legs • E) (2) Panel Clips
• F) (2) Speed clips • G)(2) #10 x ¾" Phillips screws • H) (4) #4 x 3/8" Phillips screws
• I) (8) #8 x 3/8" truss head screws (four for pocket, four for brackets to housing) • Wiring Harness
B
A
F
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included
Antenna Adapter: • Not Required
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Socket Wrench
METRA. The World's best kits.
Installation instructions for part 99-7803G
(non-NAV models)
99-7803G
C D
G H I
™ metraonline.com
Dash Disassembly
– Honda Accord 2003-2007 .................................2-3
Kit Assembly
– Double DIN radio provisions ..............................3-4
– ISO DIN radio provisions with pocket .................4-5
Wiring Instructions
– Wiring Instructions ............................................... 6
– Programming ....................................................... 7
E
Table of Contents
CAUTION!
Metra recommends disconnecting the negative bat -
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con -
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
© COPYRIGHT 2015 METRA ELECTRONICS CORPORATION
